Overview
The Pro Comp K5069B is a 6-inch Stage 1 knuckle-type lift kit with ES9000 shocks in the product name. The front uses a crossmember, steering knuckles and compression struts, with front and rear crossmembers, and the rear uses a block and U-bolt kit with add-a-leafs.

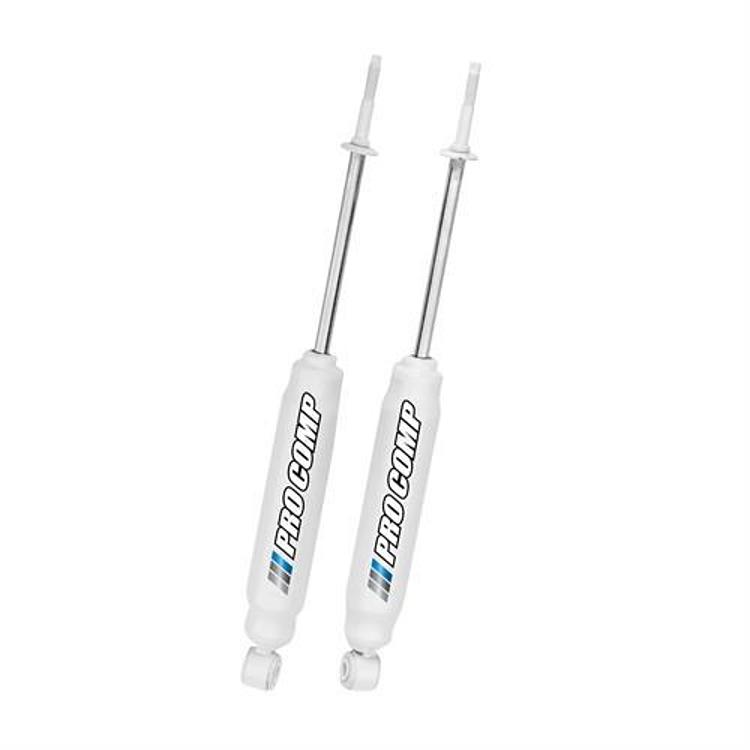

Front sway bar spacers, bump stop extensions and brake line extension brackets make up the front package. Front shocks are re-used OEM units, and the ES9000 version should be verified before buying.
Key features
- 6-inch lift height from a Stage 1 kit

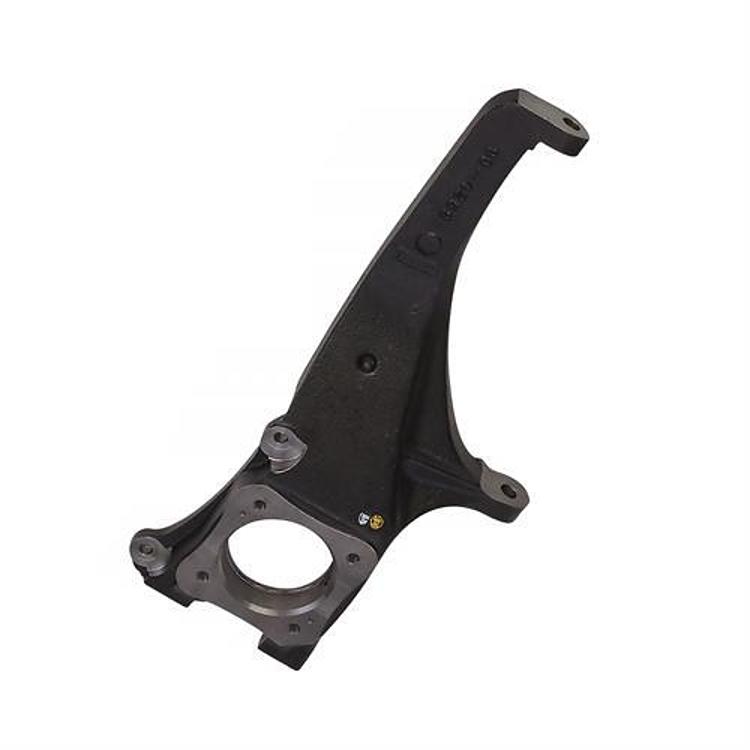

- Crossmember and steering knuckles

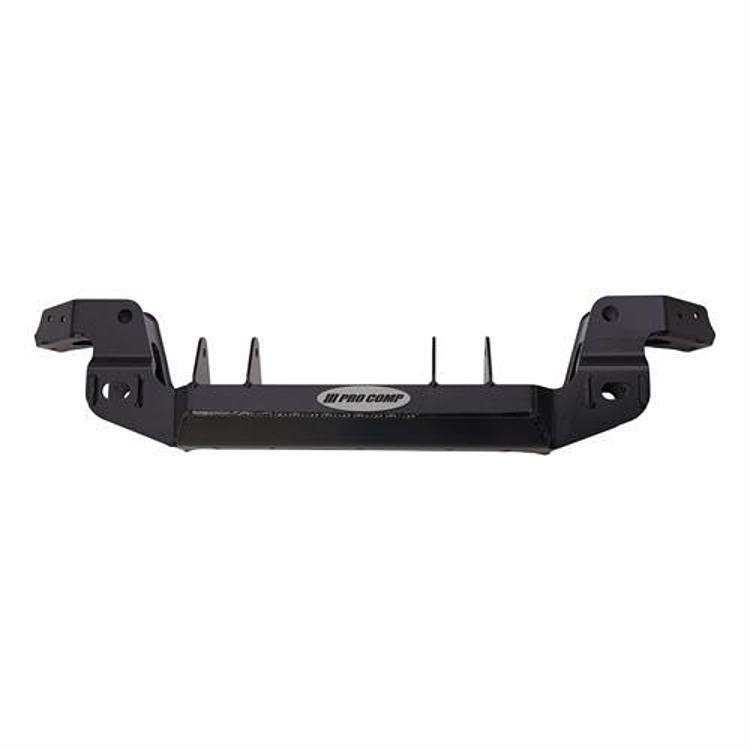

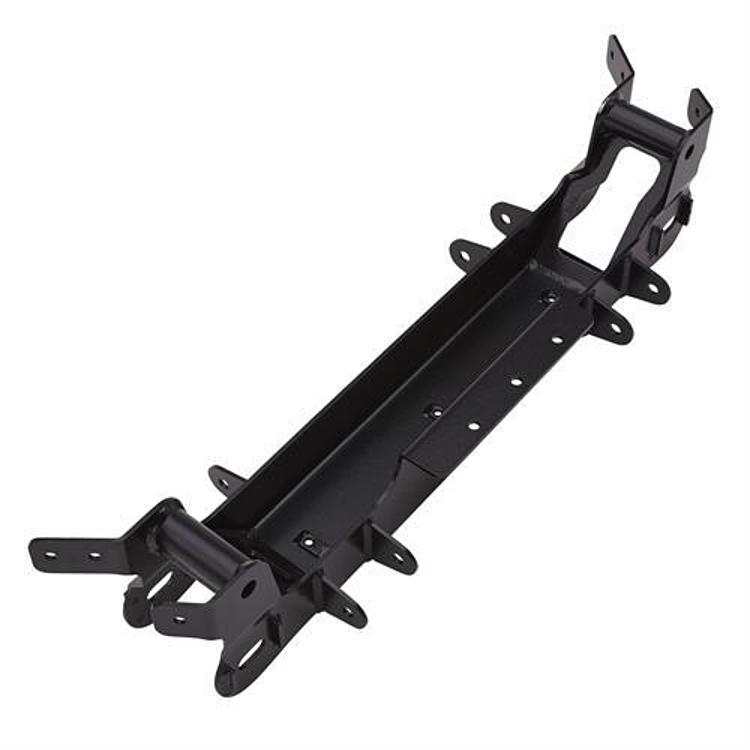

- Front and rear crossmembers
- Compression struts

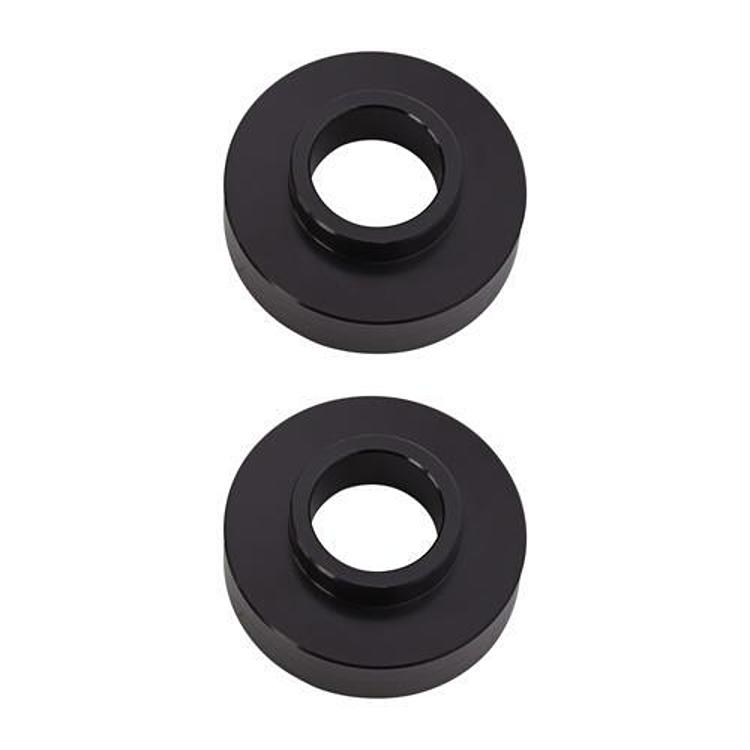

- Front sway bar spacers and bump stop extensions
- Brake line extension brackets and rear block and U-bolt kit with add-a-leafs
Checking the front setup
A knuckle-type front lift changes the steering knuckle position and the control arm angles, so caster, camber and toe should be measured after installation. Compression struts carry braking and acceleration loads, which means their bushings matter for both ride and steering precision. Worn bushings often show up as clunks over bumps or vague steering on center.
A block-type rear lift works alongside the front by changing the rear ride height. U-bolts can loosen as the spring pack settles, and add-a-leaf clamps should be checked for cracks or movement. Sway bar spacers and bump stop extensions affect how the suspension behaves at the end of its travel, so check clearance through a full range of motion.
Keep the brake lines in mind. Extension brackets allow lines to reach the raised components, but the lines should still move freely at full travel.
- Measure caster, camber and toe after installation
- Inspect compression strut bushings
- Retighten U-bolts after the first drives
- Check brake line clearance at full travel
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K5069B |
| UPC | 614901207347 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Knuckle |
| Front control | Crossmember, steering knuckles and compression struts |
| Rear lift | Lift blocks, U-bolts and add-a-leafs |
| Front shocks | Re-use OEM |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering.
Do not assume coverage from the lift height or the shock name alone. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compression struts and steering knuckles change the front geometry, so the alignment should be checked and the brake lines inspected at full travel after installation.

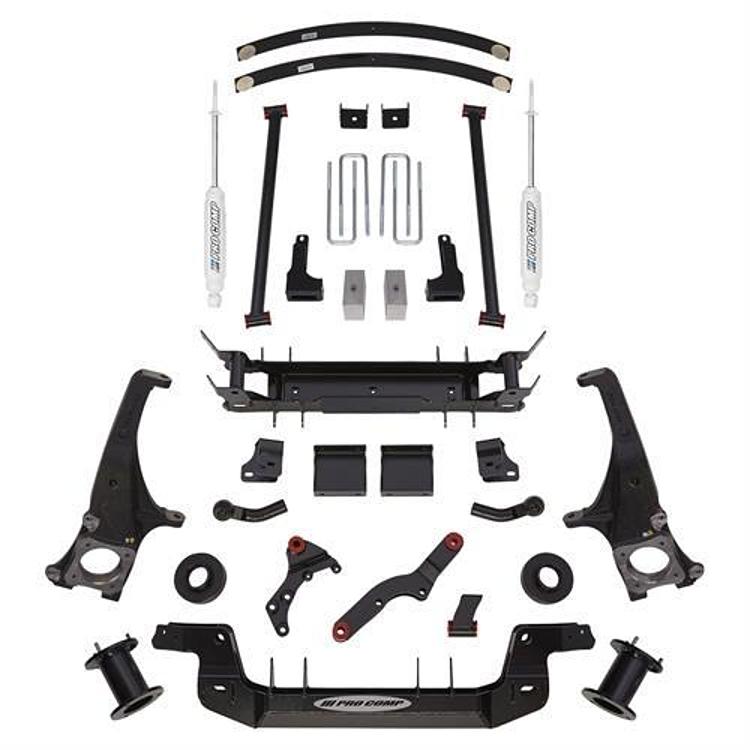

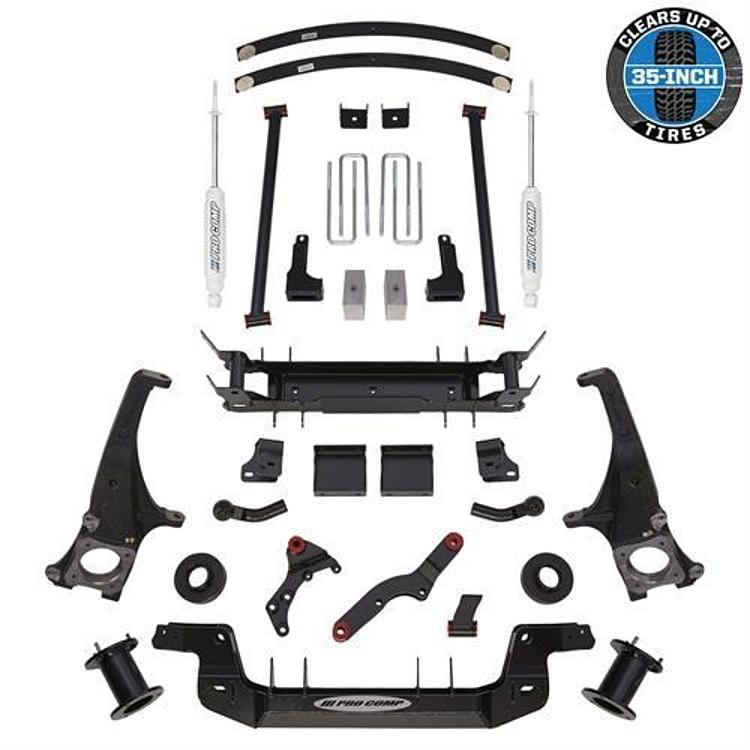

What’s included
The kit includes the front and rear crossmembers, the steering knuckles, compression struts, front sway bar spacers, bump stop extensions, brake line extension brackets, and the rear block, U-bolt and add-a-leaf kit.
