Pro Comp 6″ Stage I Lift Kit with PRO-X Shocks – K4177T

Pro Comp Suspension

Shop Ford F-250 Super Duty Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 6-inch stage 1 lift for 2011–2016 Ford F-250 Super Duty pickups
  • PRO-X front and rear shocks included
  • Block/spacer rear lift with block and U-bolt and add-a-leaf hardware; lift height range 6–7 inches

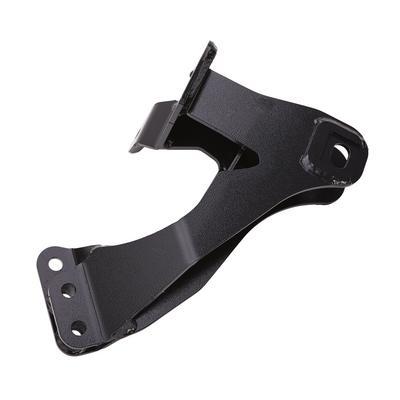

  • Laser cut brackets and a drop pitman arm for suspension and steering geometry

Description

Overview

The Pro Comp K4177T is a 6-inch stage 1 suspension lift with PRO-X front and rear shocks for the 2011–2016 Ford F-250 Super Duty. The lift height range is 6 to 7 inches, and the shocks are included.

The rear uses a block and spacer setup with block and U-bolt components and add-a-leaf hardware. The kit fits the King Ranch, Lariat, Platinum, XL and XLT versions. Laser cut brackets and a drop pitman arm are used for suspension and steering geometry, and the coil springs raise ride height while improving ride quality.

Key features

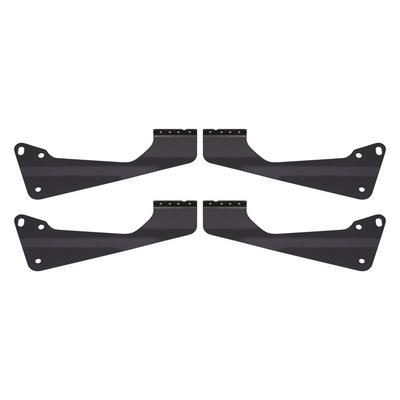

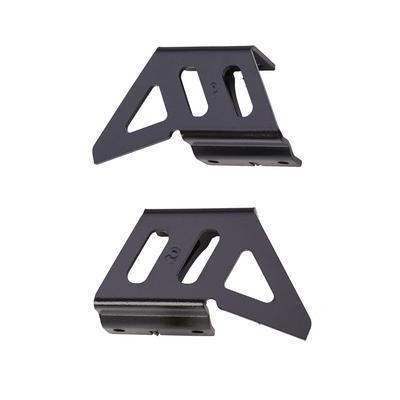

  • Laser cut brackets for suspension geometry
  • Drop pitman arm for steering geometry
  • Specific rate coil springs that raise ride height

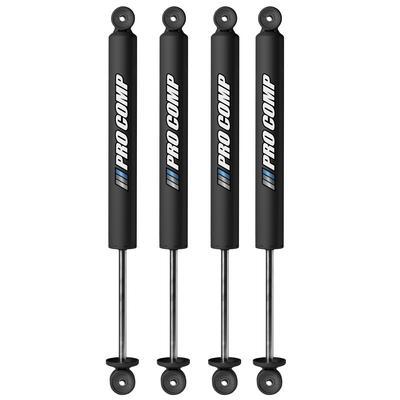

  • PRO-X front and rear shocks, included

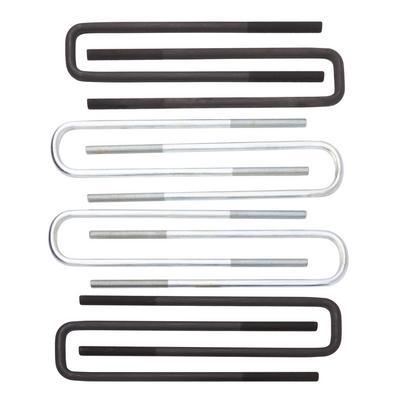

  • Block and U-bolt rear lift with add-a-leaf hardware

Rear lift considerations

A block and U-bolt rear lift with add-a-leaf hardware changes the way the rear spring pack carries load. The added leaf can raise the rear axle and stiffen the ride under light loads, so the leaf pack should be inspected for cracks and proper seating after installation. Check that the U-bolts are tightened evenly and retorqued after the first drives. A rear lift also changes the pinion angle, which can cause vibration if it is left unchecked.

Shock lengths should be matched to the new ride height so the suspension travels through its intended range. Coil springs and a drop pitman arm also shift front geometry, so front alignment is worth a check when the rear lift is set. Keep an eye on the rear bump stops as well, since the new height can change how often they engage.

Specifications

Brand Pro Comp Suspension
Part number K4177T
Suspension type Lift kit, stage 1
Lift height 6 inches, listed range 6–7 inches
Front shocks PRO-X
Rear shocks PRO-X, included
Rear lift method Block/spacer with block and U-bolt and add-a-leaf
Brackets and steering Laser cut brackets and drop pitman arm
Shocks included Yes

Vehicle fitment

It fits the 2011–2016 Ford F-250 Super Duty in the King Ranch, Lariat, Platinum, XL and XLT versions.

It covers 2011 through 2016 models only, so 2017 and newer F-250 trucks are not covered. It does not fit the F-350 Super Duty or 2010 and older F-250 trucks. Confirm year, model and trim before buying.

Installation notes

The rear lift and the coil springs both change ride height, so check the driveline angles and the alignment after the kit is installed.

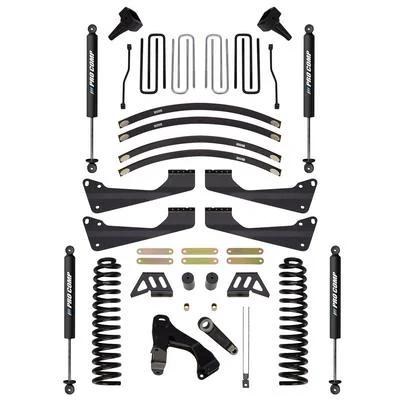

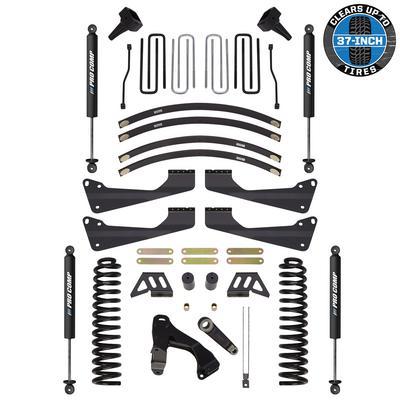

What’s included

PRO-X front and rear shocks, the block and U-bolt rear lift components with add-a-leaf hardware, the laser cut brackets, and the drop pitman arm.

SKU: EXPK4177T Categories: ,

Fitment

VehicleYearsTrims
Ford F-250 Super Duty2011–2016King Ranch, Lariat, Platinum, XL, XLT

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K4177T fit a 2012 Ford F-250 Super Duty XL?

Yes. The 2011–2016 Ford F-250 Super Duty is in the listed fitment, and the XL is one of the versions named. Check the year and version on your truck against the list.

Does the K4177T come with rear shocks?

Yes. PRO-X front and rear shocks are included with the kit. The rear lift uses a block and spacer setup with block and U-bolt parts and add-a-leaf hardware, which are part of the kit.

Does the K4177T fit a 2016 Ford F-250 Lariat?

Yes. The 2011–2016 Ford F-250 Super Duty is in the listed fitment, and the Lariat is one of the named versions. Confirm the year, cab and model on your truck before ordering.

What should I inspect after driving a lifted truck off road?

Look at the U-bolts, shock mounts, brackets and leaf pack for loose or damaged parts. Check tires for uneven wear and listen for new noises from the front end. A quick inspection after rough trails helps catch fasteners that work loose.
