Overview
The Pro Comp K2084M is a 6-inch stage 1 suspension lift for the 2012–2018 Ram 1500. It uses a spacer for the rear lift, and a PRO-M rear shock set is included.
It is designed for 2012–2013 Ram 1500 4WD trucks and is built with new CNC machined knuckles and redesigned crossmembers. The geometry is set for minimal toe change through suspension travel and is designed to increase tread life. The system can be ordered with several shock options and is 100% compatible with the factory electronic stability program.
Key features

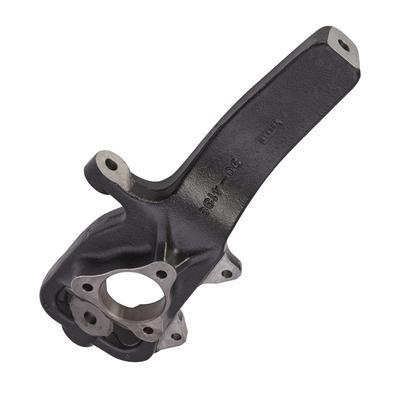

- New CNC machined knuckles

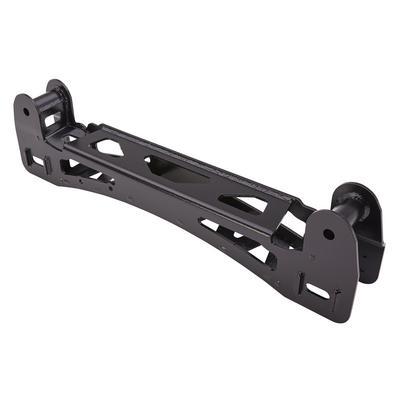

- Redesigned crossmembers for suspension geometry

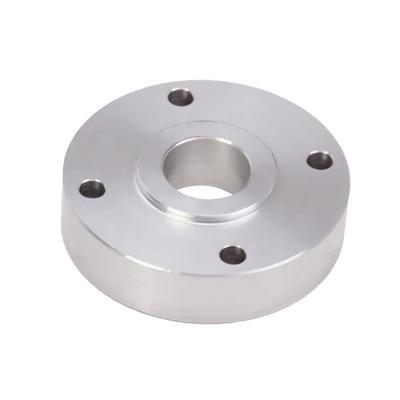

- Spacer rear lift

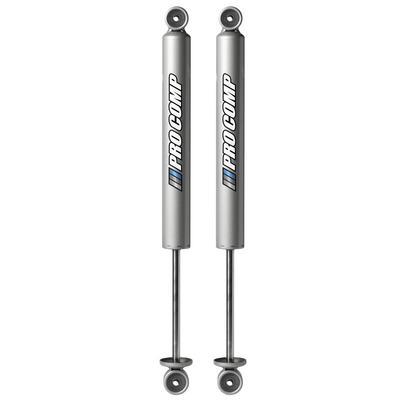

- PRO-M rear shocks, included
- Pro Comp states 100% compatibility with the factory electronic stability program
Stability systems and wheel speed
Modern pickups use wheel speed sensors for braking, traction and stability control. Those systems depend on consistent tire diameter and sensor position. A lift that changes tire size or moves the axle can alter the signals the system reads, which is why the tires and sensor wiring are part of the installation check.
The spacer rear lift changes ride height, which still affects handling under load. Keep the tire sizes matched front to rear, and avoid mixing very different tread designs. After installation, check that no warning lights remain on the dash.
- Keep front and rear tire diameters matched
- Inspect wheel speed sensor wiring
- Check for dash warning lights after the first drive
- Recheck toe and alignment after suspension settles
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K2084M |
| Suspension type | Lift kit, stage 1 |
| Lift height | 6 inches, listed range 6–7 inches |
| Rear shocks | PRO-M, included |
| Rear lift component | Spacer |
| Shocks included | Yes |
Vehicle fitment
It fits the 2012–2018 Ram 1500 in the Big Horn, Express, HFE, Laramie, Rebel, R/T, SLT, Tradesman and Tradesman HD versions, among others.
Fit is set for 2012–2018 Ram 1500 models. Make sure your Ram’s year and trim fall within this fit before ordering, since the 2011 and older and 2019 and newer Ram 1500s and the Ram 2500 and 3500 fall outside that range.
Installation notes
A spacer rear lift raises the rear of the Ram, so check the driveline angles and have the alignment set after installation.

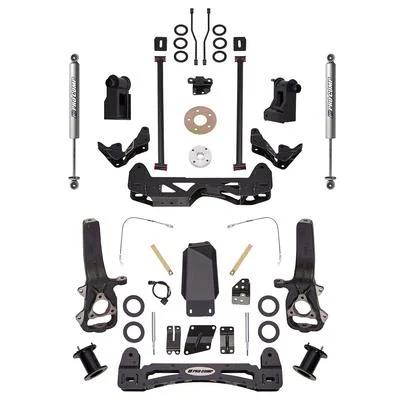

What’s included

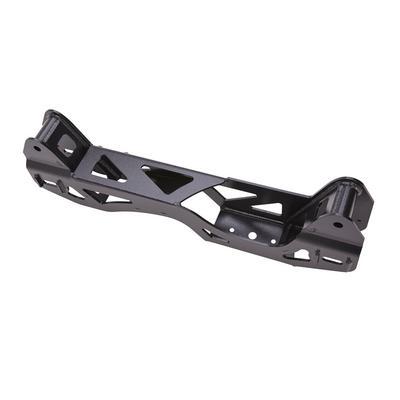

CNC machined knuckles, redesigned crossmembers, PRO-M rear shocks, and the rear spacer.
