Overview
The Pro Comp K4012 is a 2-inch stage 1 leaf spring lift with ES9000 shocks. The lift is applied at the front with leaf springs, and the rear is not lifted.
ES9000 shocks are supplied at the front and the rear. The shock boots are not included. The listed wheel size range is 16 to 20 inches, with a width of 8 to 10 inches.
Key features
- 2-inch lift, stage 1

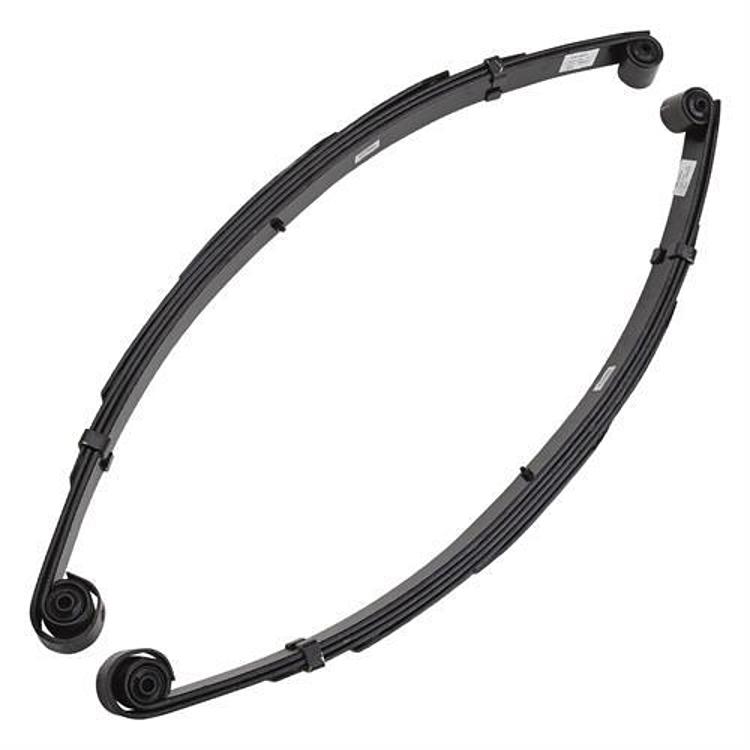

- Front leaf springs
- No rear lift

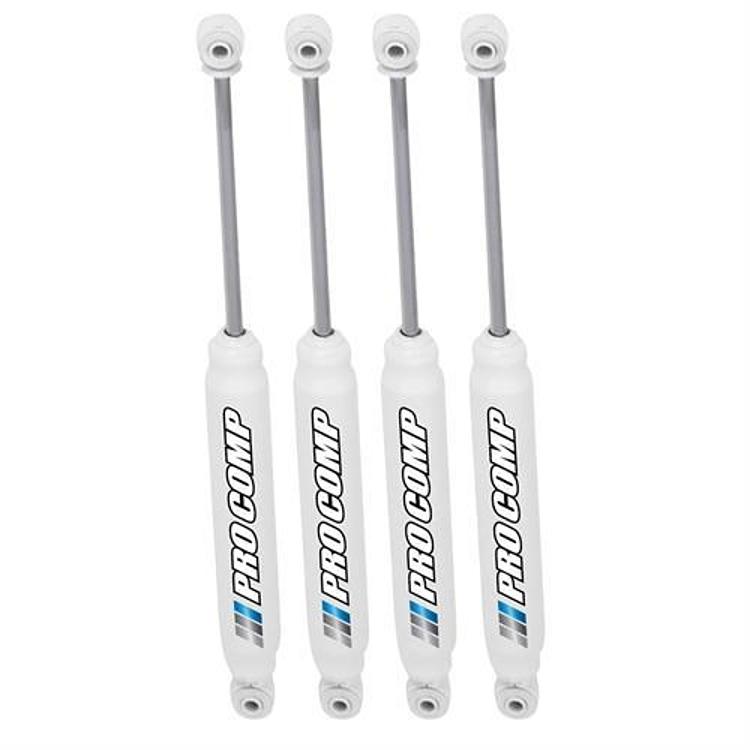

- ES9000 front and rear shocks
- Shock boots not included
- Wheel size 16 to 20 inches, width 8 to 10 inches
Front-only leaf spring setups
A front-only leaf spring lift raises the front of the truck while the rear keeps its original height. That difference can change the way the vehicle sits, the front bump stop contact and the balance between the front and rear axles on the trail. Many owners find the front shocks need to be checked for clearance and travel after the springs are reset.
Leaf springs are often paired with a shock change because the stock shock length may no longer match the new spring position. Check the front brake hoses and steering components for stretch or rubbing when the front rises. Tire size and wheel backspacing also matter, since a taller front stance can put more load on the front tires at full turn.
- Front bump stop clearance after the lift
- Brake hose length at the new front height
- Front shock travel and mounting
- Steering components for rubbing or stretch
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4012 |
| UPC | 614901124330 |
| Lift | 2 inches, stage 1 |
| Suspension type | Leaf spring |
| Front lift | Leaf springs |
| Rear lift | None |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Shock boots | Not included |
| Max tire size | 33×12.50 |
| Wheel size range | 16 to 20 inches |
| Wheel width range | 8 to 10 inches |
Vehicle fitment
Confirm fit for your vehicle’s year, model and trim before ordering. Compare the wheel and tire sizes above with your truck before buying.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A front-only leaf spring lift changes the front ride height and the front alignment, so an alignment should be set once the springs are in. Check that the front shocks clear the new spring position.
What’s included

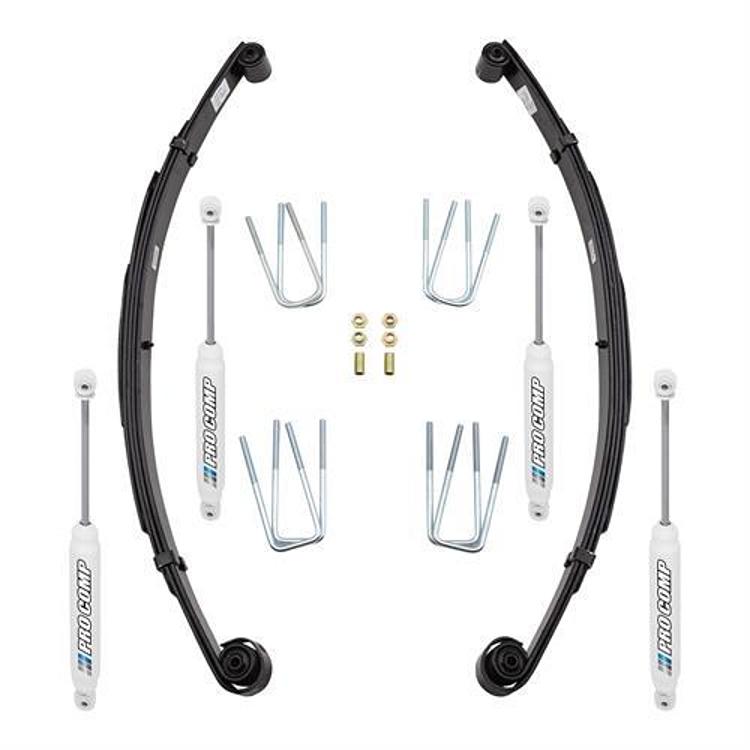

The kit includes front leaf springs and ES9000 front and rear shocks. Shock boots are not included.
