Overview
The Pro Comp K4015B is a 4-inch stage 1 leaf spring lift with ES9000 front and rear shocks. It fits 1999–2004 Ford F-250 Super Duty and F-350 Super Duty models, including the Harley-Davidson Edition and King Ranch trims.
The front uses leaf springs with sway bar spacers and bump stops, and a pitman arm is included for steering correction. The rear uses a block and U-bolt kit with add-a-leafs. The lift height range is 3 to 4.99 inches.
Key features
- 4-inch lift, stage 1

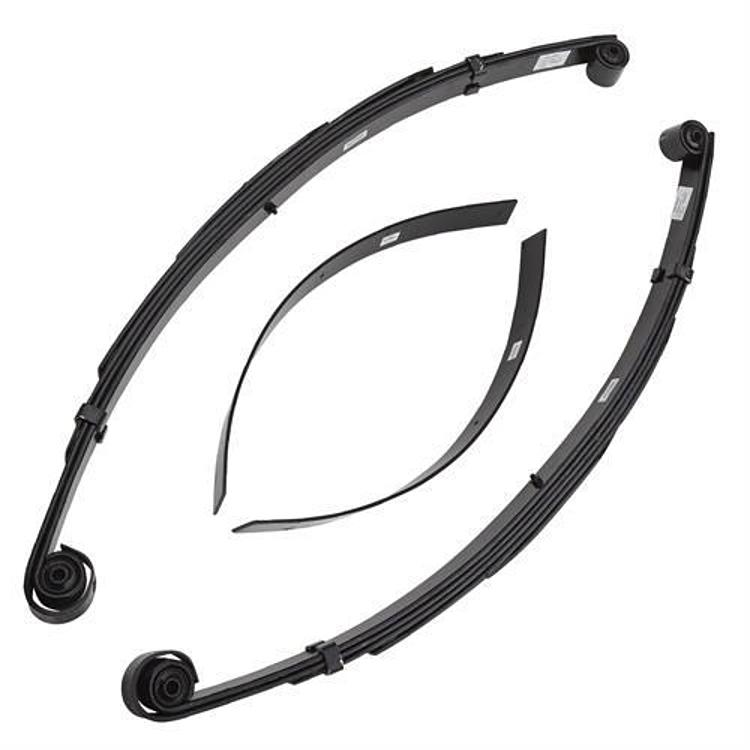

- Front leaf springs
- Front sway bar spacers and bump stops

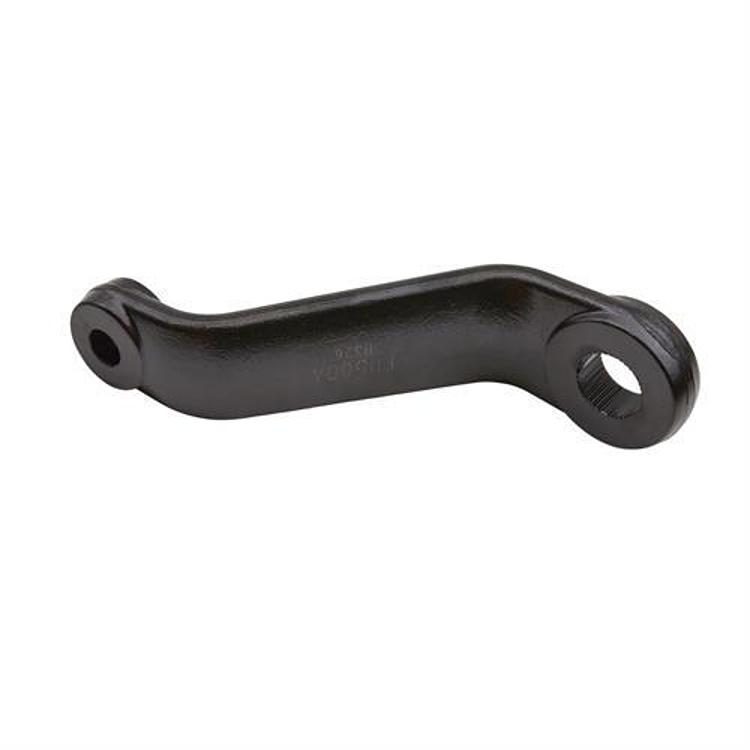

- Pitman arm steering correction

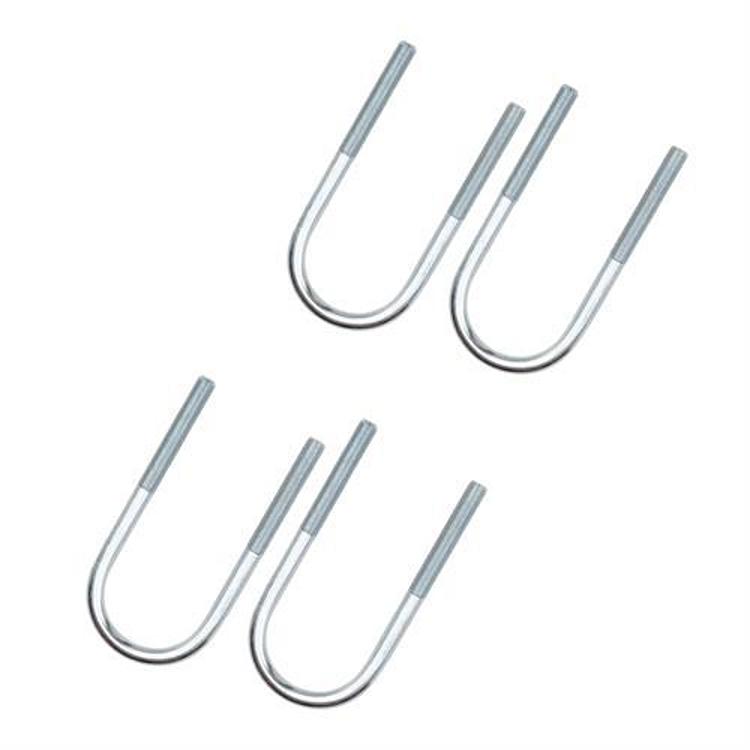

- Rear block, U-bolt kit and add-a-leafs

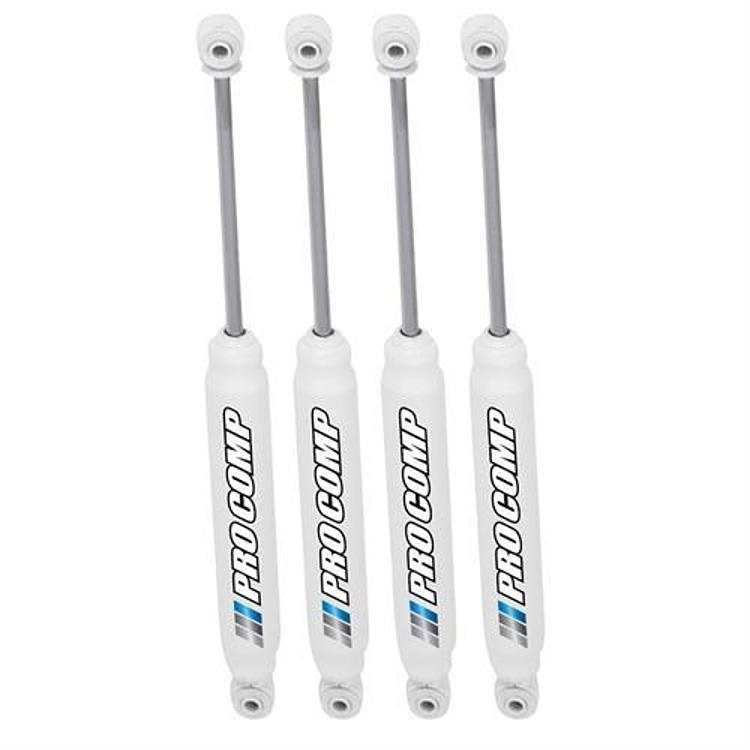

- ES9000 front and rear shocks
Pitman arm and steering checks
A pitman arm corrects steering geometry after a leaf spring lift, but it is only one part of the steering system. The drag link, tie rod ends and steering stabilizer all carry loads that change once the front is raised. Inspect them for play and wear after the lift goes in, and replace any worn joints before the truck sees regular highway use.
Sway bar spacers and bump stops are typically checked at the same time. Correctly seated spacers keep the sway bar from pulling the links at an odd angle, and worn bump stops can let the axle travel into the frame on rough roads. Note any clicking or pulling during turns and address it before the truck is used hard off road.
- Drag link and tie rod end play
- Steering stabilizer condition
- Sway bar spacer seating
- Bump stop wear on rough roads
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4015B |
| UPC | 614901124392 |
| Lift | 4 inches, stage 1 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Leaf spring |
| Front lift | Leaf springs |
| Rear lift | Block, U-bolts and add-a-leaf |
| Steering correction | Pitman arm |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Shock boots | Not included |
Vehicle fitment
Covered models are 1999–2004 Ford F-250 and F-350 Super Duty trucks, including the Harley-Davidson Edition and King Ranch trims. Trucks from other Ford model years are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Block and U-bolt rear lifts change the rear axle location, so check the driveline angles after installation. The pitman arm changes the steering geometry, so check the steering centering once the lift is complete.

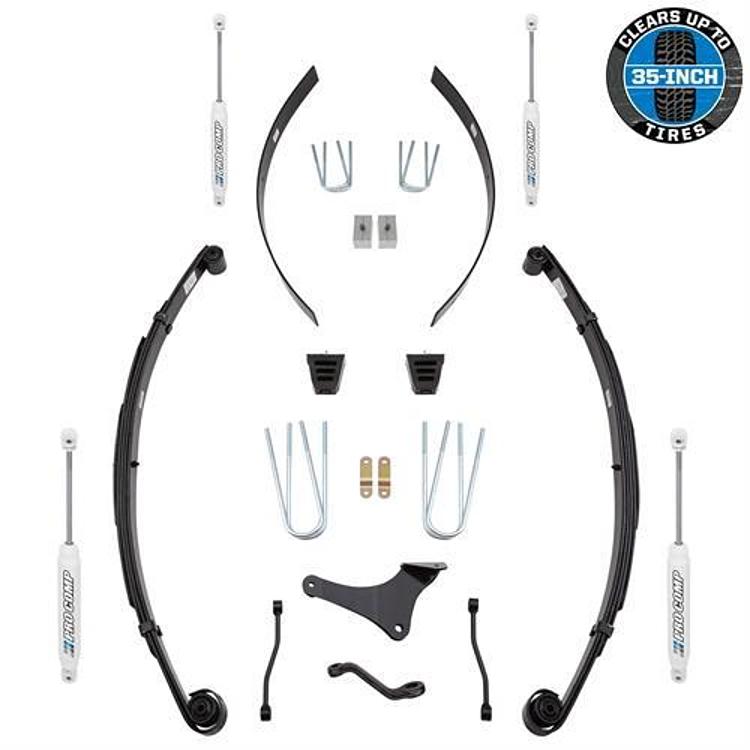

What’s included

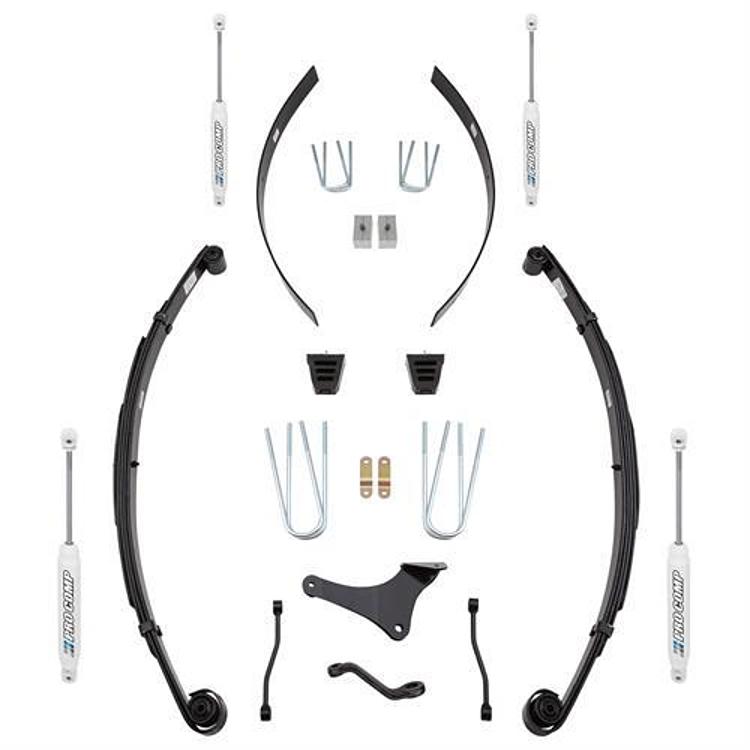

The kit includes front leaf springs, sway bar spacers, bump stops, a pitman arm, the rear block and U-bolt kit with add-a-leafs, and ES9000 front and rear shocks. Shock boots are not included.
