Overview
The Pro Comp 6 Inch Lift Kit with ES3000 Shocks, part number K1047B, is a 6-inch bracket lift for the 1996-1999 Chevrolet Tahoe and GMC Yukon. The front lift uses drop brackets, with front and rear crossmembers, compression struts, torsion bar drop brackets and upper control arm mount brackets.
The kit adds rear sway bar end links for the Tahoe, and the rear lift uses lift blocks, U-bolts and add-a-leaf components. ES3000 front shocks are included. The listed lift height range is 5 to 6.99 inches.
Key features
- 6-inch stage 1 lift
- Front drop brackets and torsion bar drop brackets
- Front and rear crossmembers
- Compression struts
- Rear sway bar end links for the Tahoe
- Bump stops and upper control arm mount brackets
- ES3000 front shocks, included
Sway bar and bump stop upkeep
Rear sway bar end links connect the bar to the axle and take repeated load each time the truck leans in a turn. Worn links often show up as a rattle over washboard roads or a loose feel when changing direction, so inspect the ends and bushings regularly.
Bump stops limit how far the suspension can compress, and a lift can change how often they are reached. Cracked or compressed stops reduce that protection, so look at them at each oil change and replace any that are split or flattened.
Control arm mount hardware and crossmembers should be checked for tightness after the first few hundred miles of driving, since fresh installations settle as the parts seat.
- Inspect sway bar end links for play
- Check bump stops for cracks or flattening
- Re-tighten crossmember and mount bolts after break-in
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K1047B |
| UPC | 614901122190 |
| Lift height | 6 inches, stage 1 |
| Lift height range | 5 to 6.99 inches |
| Suspension type | Bracket |
| Rear lift | Lift blocks, U-bolts and add-a-leaf |
| Front shocks | ES3000 |
| Shocks included | Yes |
| Fitment | Direct fit |
Vehicle fitment
It fits the 1996-1999 Chevrolet Tahoe (Base, LS and LT) and the 1996-1999 GMC Yukon (Denali, SL, SLE and SLT).
Tahoe and Yukon models from 1995 and from 2000 on, and other GM trucks, are not covered by this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bracket-type front lift and the rear blocks change suspension height and driveline angles, so have the alignment and driveline angles checked after installation.
What’s included

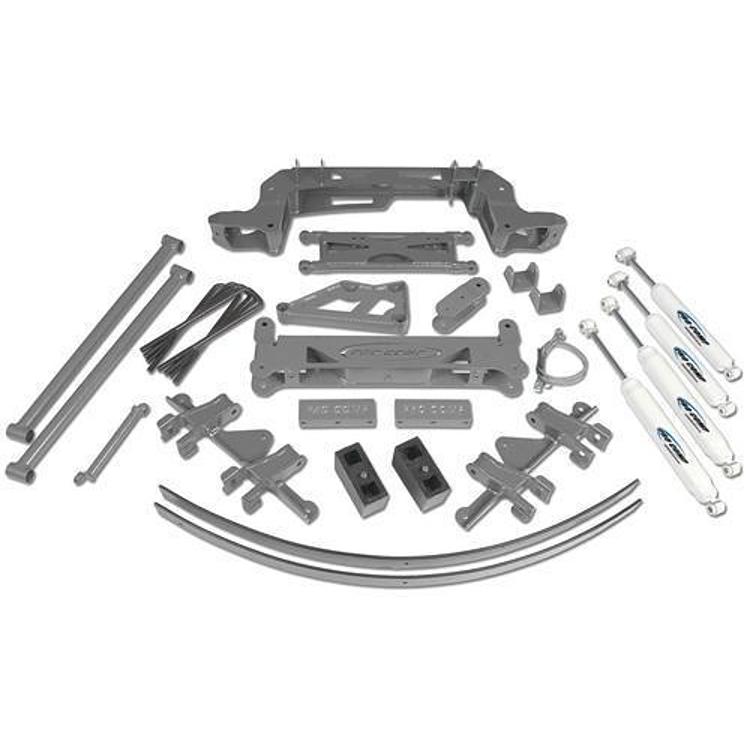

The kit includes front drop brackets, front and rear crossmembers, compression struts, rear sway bar end links for the Tahoe, bump stops, torsion bar drop brackets, upper control arm mount brackets, rear lift blocks with U-bolts and add-a-leaf components, and ES3000 front shocks.
