Pro Comp 3.5 Inch Lift Kit with Pro Runner Shocks – K3100BP

Pro Comp Suspension

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5 inch coil spring lift kit for the 4-Door JK Wrangler
  • Pro Runner shocks, Chromoly trac bars, brake line brackets
  • Clears 35 inch tires; max tire size 35×12.50
  • Pro Comp part number K3100BP

Description

Overview

The Pro Comp 3.5 Inch Lift Kit with Pro Runner Shocks, part number K3100BP, is a coil spring lift kit for the 4-door 2007–2018 Jeep Wrangler JK. It provides a 3.5 inch lift and clears 35 inch tires.

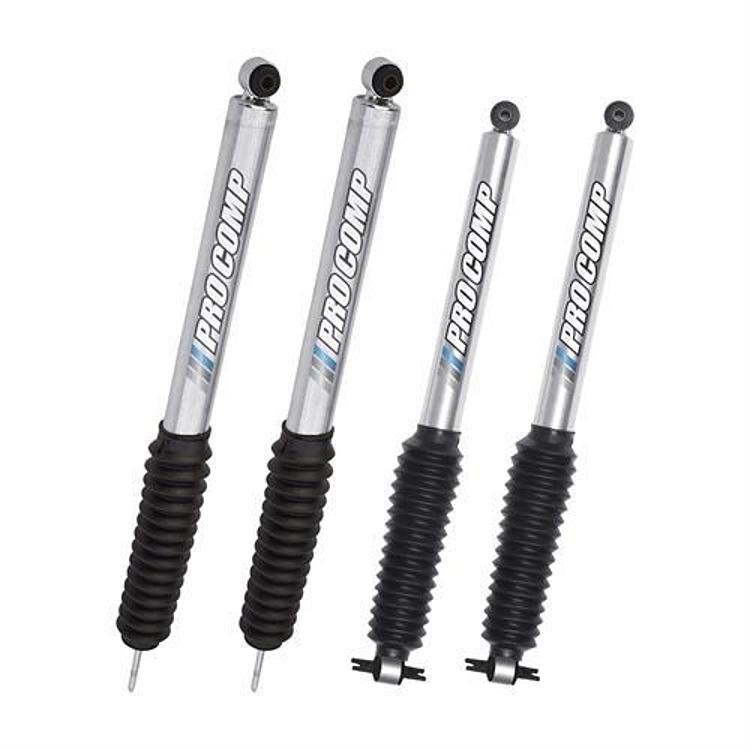

The kit is set up for on-road ride comfort and off-road clearance for 35 inch tires. It includes front and rear adjustable Chromoly trac bars with heim joints to center the axle and allow flex, plus brake line brackets. The Pro Runner shocks are nitrogen gas pressurized, with a brushed and zinc-plated, clear coated body.

Key features

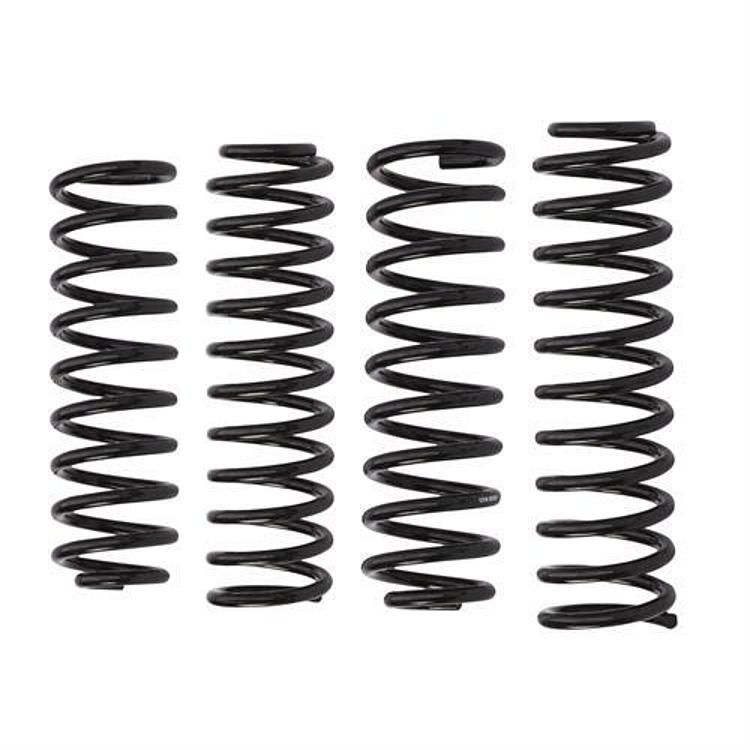

  • 3.5 inch lift stage 1 using front and rear coil springs
  • Front and rear Pro Runner shocks included

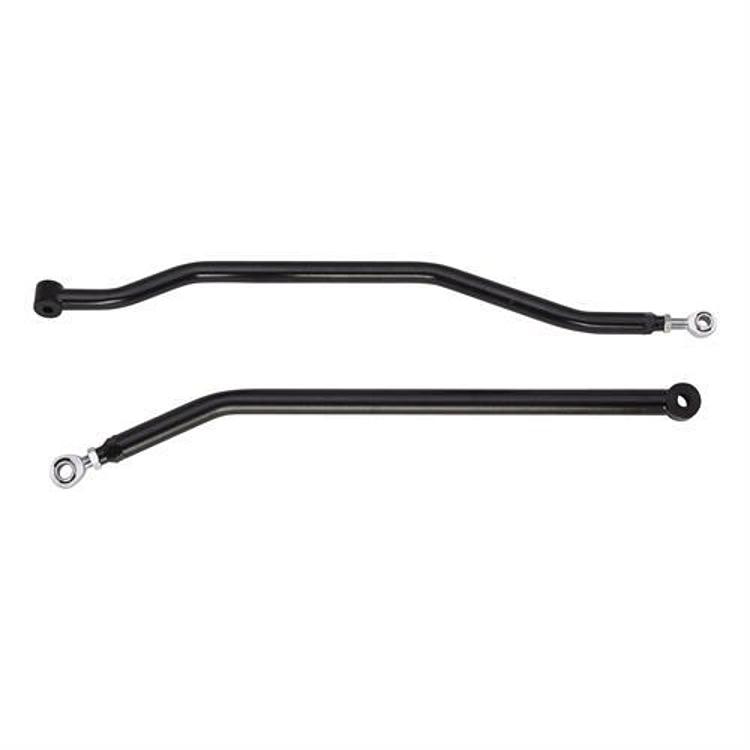

  • Front and rear adjustable Chromoly trac bars with heim joints

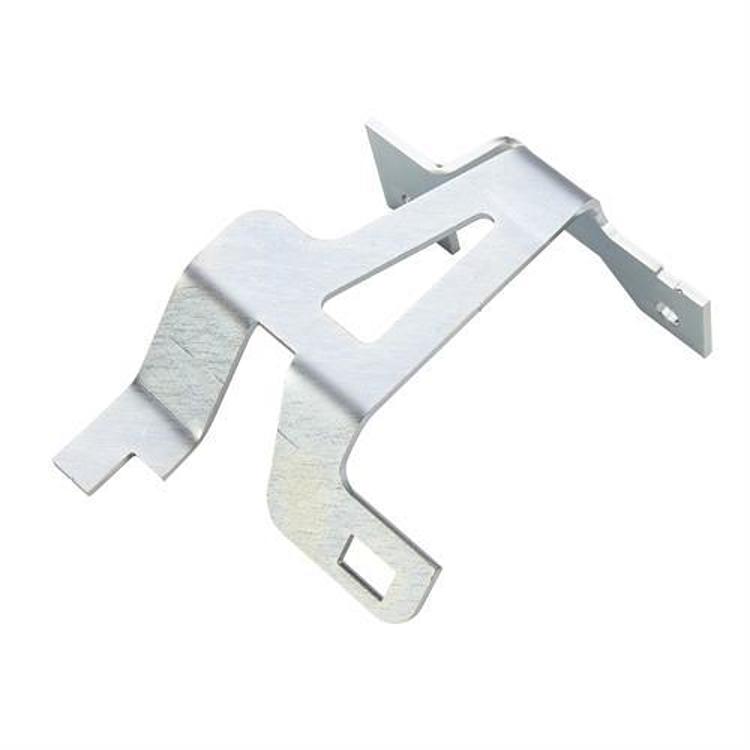

  • Brake line brackets included
  • Max tire size 35×12.50; wheel size range 16 inch or larger
  • Includes all necessary hardware
  • Nitrogen gas pressurized shocks dissipate heat more efficiently

Tire fit and axle control

Larger tires put more load on the drivetrain and suspension, so a lift that clears 35 inch tires also changes how the axles move. Trac bars control axle position under acceleration and braking, and they reduce wheel hop off road. Heim joints allow movement without binding as the suspension flexes.

Tire rub is most often seen at full steering lock and at full compression. Check clearance at both points after installation, and recheck it once the tires have seated. Wheel backspacing and offset influence how close the tire sits to the body and brake hose.

Off-road use adds stress to joints and fasteners. Joints should be inspected at each service and after rough trips, since play or binding shows the wear has begun.

  • Check brake hose length with the wheels turned
  • Confirm tire rub point at full compression
  • Inspect trac bar heim joints for play

Specifications

Brand Pro Comp Suspension
Part number K3100BP
UPC 70000704098
Product type Suspension lift kit
Lift kit 3.5 inches stage 1
Lift height range 3 to 4.99 inches
Suspension type Coil spring kit
Front and rear lift Coil springs
Shocks Front and rear Pro Runner
Max tire size 35×12.50
Wheel size range 16 inch or larger
Hardware All necessary hardware included
Fitment type Direct fit

Vehicle fitment

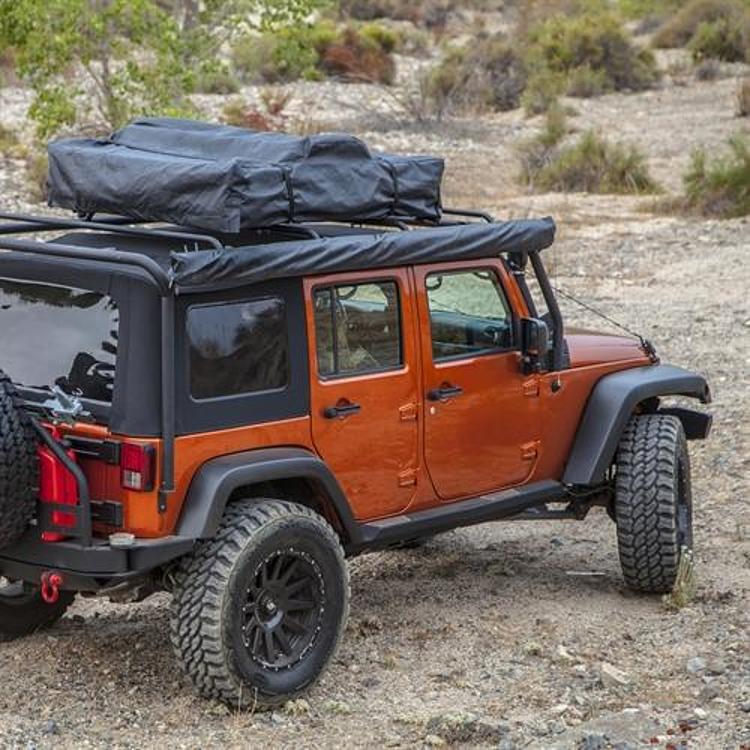

It fits the 4-door 2007–2018 Jeep Wrangler JK.

This kit is for the 4-door JK. Confirm your body style, year and trim before ordering.

Installation notes

  • Professional installation is recommended for suspension, steering and brake components.
  • Torque every fastener to its specification and re-check it after the first miles of driving.
  • Have the alignment checked after any suspension or steering work, and check that tires, hoses and lines have clearance through the full range of travel.

What’s included

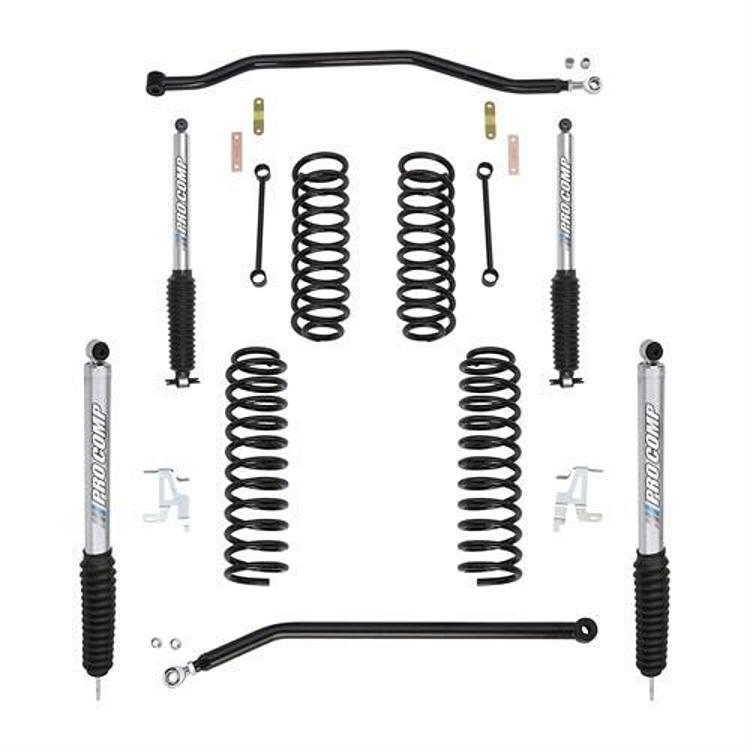

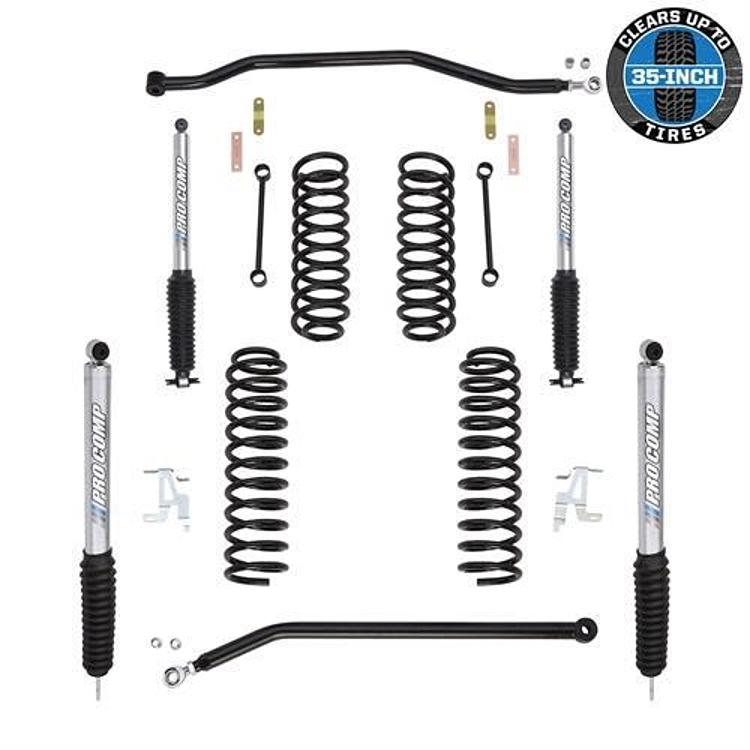

Front and rear coil springs, front and rear Pro Runner shocks, front and rear adjustable Chromoly trac bars with heim joints, brake line brackets and all necessary hardware.

SKU: EXPK3100BP Category:

Specification

Shipping weight 109.90 lbs
Package dimensions 48.00 × 14.00 × 14.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Pro Comp K3100BP fit a 2-door Wrangler JK?

It is a 3.5 inch lift for the 4-door JK Wrangler. Confirm your vehicle is a 4-door model, and check the year, model and trim, before ordering this kit.

What tire size does the K3100BP clear?

Yes, it clears 35 inch tires with a max tire size of 35x12.50. Wheels should be 16 inch or larger to suit the kit's wheel size range.

Does the K3100BP include shocks?

Yes. It includes front and rear Pro Runner shocks, nitrogen gas pressurized to help dissipate heat, along with coil springs and Chromoly trac bars.

What else is in the K3100BP kit?

The kit includes adjustable Chromoly trac bars with heim joints at the front and rear, brake line brackets, and all necessary hardware. Coil springs and Pro Runner shocks come in the same package.

How often should trac bar heim joints be inspected?

Inspect them at each service and after off-road trips. Play, binding or a clicking sound at the joint means the bar should be checked, and a worn joint should be replaced before further use.
