Overview

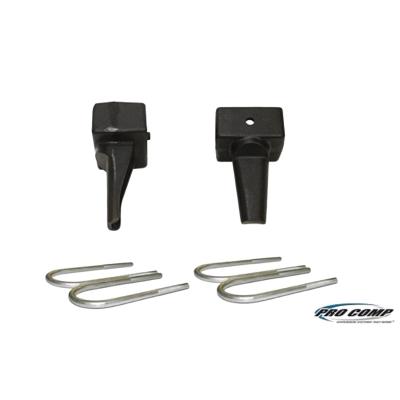

The 58250 is a 2.5-inch rear lift block kit with U-bolts for leaf spring trucks. The blocks are tapered to help the driveshaft angles.
A rear block kit raises the axle relative to the leaf springs. The U-bolts hold the axle to the springs, so they must be long enough to clear the added height.
Confirm the kit matches your truck’s leaf spring rear suspension before ordering. Check the driveshaft angles after installation.
Key features
- 2.5-inch rear lift
- Tapered lift blocks
- U-bolts included with the block kit
Checking U-bolts and axle seating
U-bolts clamp the axle to the leaf springs, so their condition matters as much as the block itself. Threads that are rusted or stretched will not hold the clamp load, and bent legs can pinch the spring pack. Before installation, look at the thread ends, the nuts and the washers, and replace any part that shows damage.
When the lift is added, the spring pad and axle seat should line up squarely with the block. Tighten the nuts evenly in a cross pattern and recheck them after the first few miles. Brake lines and the parking brake cable may also need inspection, because the axle sits in a different position after the lift, and any stretch or rub can show up as a fault.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 58250 |
| Position | Rear |
| Lift | 2.5 in |
| Includes | U-bolt kit |
Vehicle fitment
Confirm fit for your vehicle’s year, model and rear suspension before ordering.
A block kit is sized for a particular leaf spring setup. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the driveshaft angles after installation, since the tapered blocks are meant to help with them. Confirm the U-bolts are long enough for the 2.5-inch lift before tightening the nuts.
What’s included
The 2.5-inch rear lift block kit with U-bolts.
Not included: any parts beyond the block kit and U-bolts.
