Overview

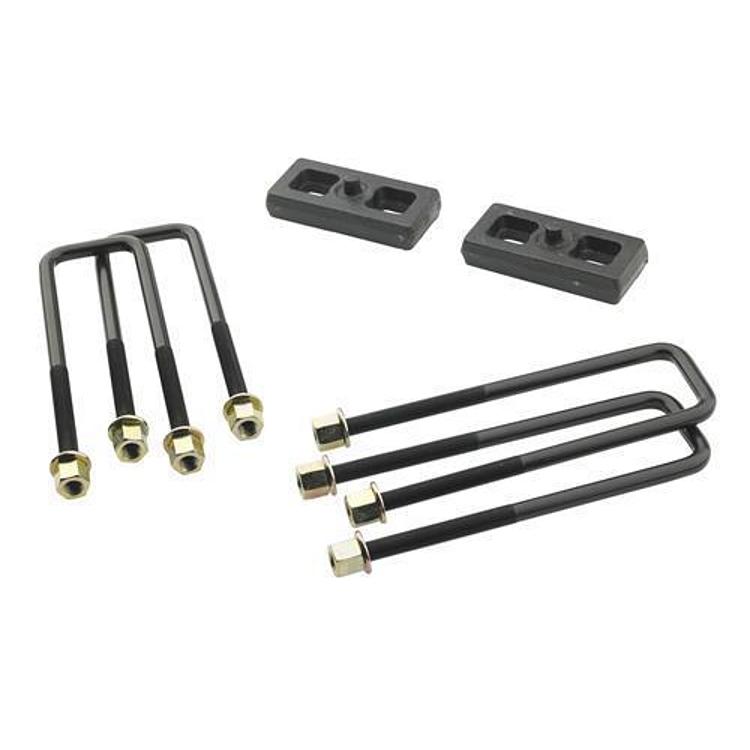

The Pro Comp 65151 is a 1 inch rear lift block kit for leaf spring vehicles from Pro Comp Suspension. Two cast iron riser blocks are mounted at the rear with four U-bolts, eight heavy duty flat washers and eight hi-nuts.
The tapered shape is intended to improve driveshaft angles on a leaf spring rear lift.
Key features
- 1 inch rear lift per the product name
- Tapered cast iron riser blocks
- Complete U-bolt and washer hardware set
Installing a rear block lift
A rear block lift raises the axle relative to the frame, which changes the angle and length of the driveshaft, shock absorbers and brake lines. Before installing, look at the leaf springs, U-bolt seats and axle housing for cracks, rust or bent perches. Replace any damaged hardware rather than reusing it, and make sure the blocks sit square on the springs before tightening.
Once the lift is in, recheck the U-bolt nuts after the first few drives, since new hardware often settles. Watch for vibration or driveline noise, which can point to an angle problem that the taper alone may not solve. Road test at low speed before returning to regular use.
- Inspect leaf springs and perches before mounting
- Replace bent or stretched U-bolts
- Recheck nuts after the first few drives
- Test driveline angle with the vehicle loaded
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | 65151 |
| UPC | 614901022193 |
| Type | Rear block kit with U-bolts |
| Lift height | 1 in |
| Block material | Cast iron |
| Block shape | Tapered |
| Hardware | 4 U-bolts, 8 heavy duty flat washers, 8 hi-nuts |
Vehicle fitment
Confirm fit for your rear spring pack and axle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Two cast iron riser blocks, four U-bolts, eight heavy duty flat washers and eight hi-nuts.
