Overview

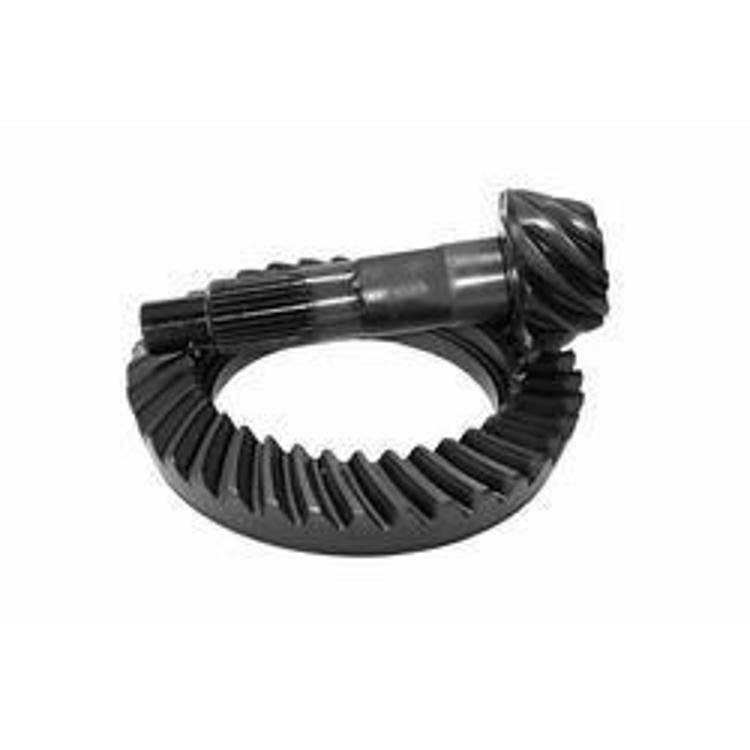

The Motive Gear Dana 44 front reverse ring and pinion, part number D44-456F, is a 4.56 ratio gear set for the front Dana 44 axle. The reverse rotation is for the front axle position.
This is a light duty replacement built to original-equipment quality. It is made from 8620 steel, machined CNC throughout and heat treated under computer control, and it is designed for both on-road and off-road use.
Key features
- 4.56 gear ratio
- 8620 steel construction
- CNC machined throughout
- Computer-controlled heat treatment
- Built to original-equipment quality for light duty use
Reverse rotation explained
Rotation matters because a ring and pinion has to turn in the direction the carrier was built for. A reverse-rotation set is cut so the ring gear turns the opposite way from a standard set, and the carrier, pinion and drive side all have to agree. Mixing rotations can cause a gear set to wear quickly, so confirm rotation before ordering.
Light duty replacement sets suit stock or lightly modified axles that see moderate loads. If the vehicle carries heavy tires, winches often or rock crawls frequently, consider a heavier duty set and check the pinion and carrier bearings. Heat-treated 8620 steel is a sound base for light duty work, but load and use decide the wear rate.
- Confirm reverse rotation against the carrier
- Check carrier bearings before installation
- Inspect the contact pattern after the first drives
Specifications
| Brand | Motive Gear |
|---|---|
| Part number | D44-456F |
| UPC | 698231010938 |
| Gear ratio | 4.56 |
| Axle type | Dana 44 |
| Axle location | Front |
| Material | 8620 steel |
| Rotation | Reverse rotation |
Vehicle fitment
Match the Dana 44 front axle and the reverse rotation to your carrier before buying. Match fit to your vehicle’s year, model and trim before ordering.
Installation notes
A front ring and pinion must be set with correct pinion depth and backlash, so professional setup is advised. Allow for a break-in period after the set is installed.
What’s included
One ring and pinion set. Check the package contents, including bearings, shims and carrier hardware, against your installation before starting.
