  • 4.88 front and rear ring and pinion kit for the Cherokee XJ
  • Dana 30 short front, Dana 35 rear
  • Front and rear matched master installation kits
  • Part number 4-XJ3-488, 1984–2001

Description

Overview

The 4-XJ3-488 is a front and rear 4.88 ring and pinion kit for the 1984–2001 Jeep Cherokee (XJ), with a Dana 30 short front and a Dana 35 rear. The kit includes the gear sets and matched master installation kits for both axles.

The 4-XJ3-488 uses a short Dana 30 front, while the 4-XJ-488 uses a reverse one. Both ends run the same 4.88 ratio, and the gears are engineered for oversized tires and high performance engines.

Key features

  • 4.88 gears front and rear
  • Dana 30 short front, Dana 35 rear
  • Matched master installation kits
  • Fits 1984 to 2001 XJ Cherokee
  • Double shot peened, double lapped, 8620 steel

Gear set and carrier planning

A ring and pinion swap is one of the more involved drivetrain jobs, and the gear set is only part of it. Bearings, pinion shims and carrier components all affect the final pattern and backlash, so inspect them while the axles are open. Cleanliness matters too: contamination in the housing can damage new gears quickly, so flush the housings and fill with fresh gear oil.

Gear ratio changes also affect how the vehicle behaves. A 4.88 ratio at both ends pulls strongly at low speed and suits larger tires, but engine output, transmission gearing and speedometer calibration should be checked after the swap. Break the new gears in gently, and re-check the pattern and backlash after the first few drives.

  • Check bearings and seals before assembly
  • Use fresh gear oil after break-in
  • Re-check speedometer calibration

Specifications

Brand G2 Axle and Gear
Part number 4-XJ3-488
UPC 700007521791
Product type Front and rear ring and pinion sets with master installation kits
Gear ratio 4.88
Front axle gears Dana 30 Short 4.88
Front carrier 3.73 and up
Rear axle gears Dana 35 4.88
Rear carrier 3.54 and up
Installation kits Front and rear matched master installation kits
Material Computer heat treated 8620 steel
Manufacturing Manufactured to O.E. specs, double shot peened, double lapped
Warranty Limited lifetime warranty

Vehicle fitment

The 4-XJ3-488 fits the 1984 to 2001 XJ Cherokee with a Dana 30 short front axle and a Dana 35 rear axle.

The 4-XJ3-488 does not cover an XJ with a Dana 30 reverse front, which needs a different kit, or other Jeep models. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Swapping both axles to 4.88 means setting the pinion depth, preload and backlash on each, using the master installation kits. The front needs a 3.73 and up carrier and the rear a 3.54 and up carrier, and an experienced installer is recommended.

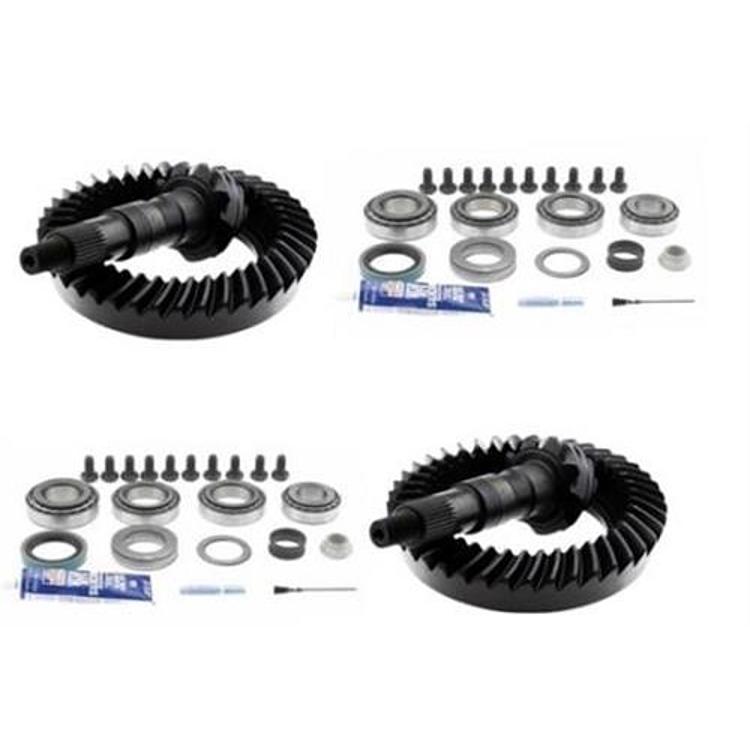

What’s included

  • Front ring and pinion gear set
  • Rear ring and pinion gear set
  • Front matched master installation kit
  • Rear matched master installation kit

Not included: carriers and any parts outside the master installation kits.

SKU: G/24-XJ3-488 Category:

Specification

Shipping weight 33.86 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Cherokee (XJ) likely fits1984–2001All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What is the difference between the 4-XJ3-488 and 4-XJ-488?

The 4-XJ3-488 has a Dana 30 short front, while the 4-XJ-488 has a Dana 30 reverse front. Both use 4.88 gears and a Dana 35 rear.

What years does the G2 4-XJ3-488 fit?

The kit fits the 1984 to 2001 XJ Cherokee with a Dana 30 short front axle and a Dana 35 rear axle.

What is in the 4-XJ3-488 kit?

The kit has front and rear 4.88 gear sets and front and rear matched master installation kits, with a limited lifetime warranty from G2.

Should the carrier bearings be replaced when changing gears?

Often yes, when the carrier is open for a gear swap. Worn bearings can allow the new gears to shift out of pattern and run noisy. Inspect them for roughness and play, and replace any that show wear before the new ring and pinion are set.
