Overview
The G2 Axle and Gear 4-XJ-488 is a front and rear 4.88 ring and pinion kit for the 1984 to 2001 Jeep Cherokee XJ, with a Dana 30 reverse front and a Dana 35 rear. Both gear sets and matched master installation kits for both axles are included.
The reverse Dana 30 front is paired with this 4.88 set, and the Dana 35 rear uses the same ratio. The gears are designed for oversized tires and high performance engines.
Key features
- 4.88 gears front and rear
- Dana 30 reverse front, Dana 35 rear
- Matched master installation kits
- Fits 1984 to 2001 XJ Cherokee
- Manufactured to O.E. specs
Gearing for larger tires
Ring and pinion ratios and tire size work together. Larger tires make the drivetrain work harder, so a lower numerical ratio can feel strained in a Cherokee XJ, while a numerically higher ratio helps with low-speed pulling. Check the tire diameter you plan to run before choosing gears, and keep in mind that changing tires later will shift the feel of the ratio.
Front and rear gears should be treated as a matched pair, since both differentials carry load through the same drive. Keep an eye on the transfer case and the driveline angles after a swap, because a taller tire or a changed ratio can affect them. Check fluid levels and gear oil condition at regular intervals, and inspect the axle seals after off-road trips.
- Plan the ratio around tire diameter
- Check driveline angles after changes
- Use a gear oil suited to the gears
- Inspect axle seals after off-road trips
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 4-XJ-488 |
| UPC | 700007521731 |
| Product type | Front and rear ring and pinion sets with master installation kits |
| Gear ratio | 4.88 |
| Front axle gears | Dana 30 Reverse 4.88 |
| Front carrier | 3.73 and up |
| Rear axle gears | Dana 35 4.88 |
| Rear carrier | 3.54 and up |
| Installation kits | Front and rear matched master installation kits |
| Material | Computer heat treated 8620 steel |
| Manufacturing | Manufactured to O.E. specs, double shot peened, double lapped |
| Warranty | Limited lifetime warranty |
Vehicle fitment
It fits the 1984 to 2001 Jeep Cherokee XJ with a Dana 30 reverse front and a Dana 35 rear axle.
The 4-XJ-488 does not cover an XJ with a Dana 30 short front, which uses a different kit, or other Jeep models. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Both axles need pinion depth, preload and backlash set with the master installation kits when fitting the 4-XJ-488. Check the 3.73 and up front carrier and 3.54 and up rear carrier requirements, and use an experienced installer.

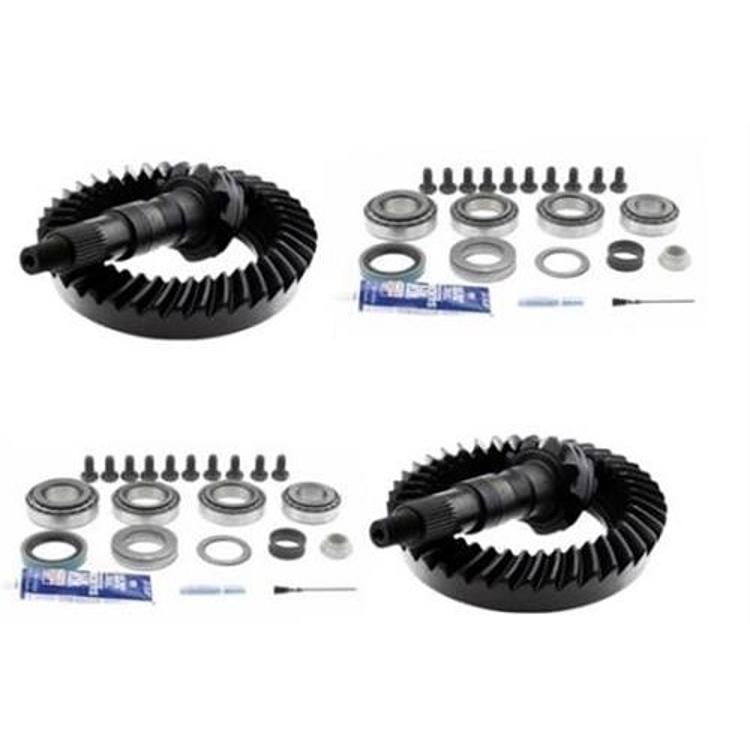

What’s included
- Front ring and pinion gear set
- Rear ring and pinion gear set
- Front matched master installation kit
- Rear matched master installation kit
Not included: carriers and parts outside the master installation kits.
