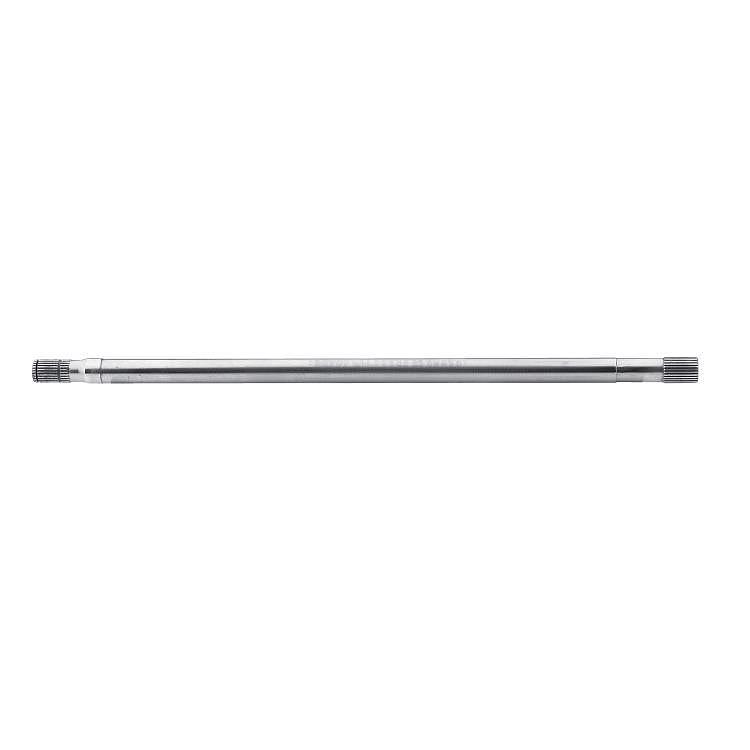

G2 Toyota Birfield CV Style Chromoly Inner Axle Shaft – 97-2044-002

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Driver-side long inner axle shaft, 27 splines
  • 28.937 in overall length for the Toyota 9.5 inch front axle
  • Fits the 1975–1984 Toyota Land Cruiser (FJ40)
  • G2 Axle and Gear part number 97-2044-002

Description

Overview

The G2 Axle and Gear 97-2044-002 is a chromoly Birfield CV style inner axle shaft for the driver side of the front axle on 1975–1984 Toyota Land Cruiser models, including the FJ40.

FJ40 owners use this long driver-side shaft to replace a worn or broken factory inner shaft on the Toyota 9.5 inch front axle. It has 27 splines and measures 28.937 in overall. G2 says its shafts are forged from high grade alloy steel and heat treated for extended service life. Its application note reads: for use in 75-84 Toyota FJ40 Land Cruiser.

The FJ40 front axle is the Toyota 9.5 inch design, so a shaft meant for it has its own length and spline layout. At 28.937 in overall, the driver-side shaft is the long one of the pair, a distinction worth checking when comparing it with the passenger shaft. Chromoly is a chromium and molybdenum alloy steel widely used for strong driveline shafts. G2 does not publish torque or strength figures for this particular part, so expect the benefits to be described by the maker in general terms only.

Key features

  • Chromoly inner axle shaft, Birfield CV style
  • Driver-side long shaft, front left inner position
  • 27 splines
  • 28.937 in overall length
  • Made for the Toyota 9.5 inch front axle
  • Aimed at the FJ40 Land Cruiser

Before you buy

Inner shafts carry drive torque from the differential to the hub, so they see the most stress when the trail gets rough or the front tires are larger than stock. Because a driver-side long shaft and a passenger-side shaft are different parts, confirm which position you are replacing before ordering. Laying the old shaft beside the new one shows whether the length and spline layout match.

Signs of wear include clicking or shuddering on tight turns, vibration under acceleration, and grease on the inside of the wheel. Rounded splines or a twisted shaft means it should not be reused. When the axle is apart, inspect the joint boots as well, since a split boot lets dirt into the joint and speeds up wear.

  • Check spline wear on the old shaft and the mating joint
  • Inspect the boot and clamp for cracks
  • Replace worn hub seals when the axle is opened

Specifications

Brand G2 Axle and Gear
Part number 97-2044-002
UPC 631410107524
Part type Inner axle shaft, Birfield CV style
Material Chromoly
Axle location Front
Shaft position Driver side, front left inner
Axle type Toyota 9.5 inches
Spline count 27 splines
Overall length 28.937 in
Shaft length Long axle

Vehicle fitment

It fits the 1975–1984 Toyota Land Cruiser, with the FJ40 as the specific application.

Land Cruisers built after 1984, including later FJ60 trucks, and all Toyota Pickups are outside this part number, and the passenger-side shaft is separate. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The 9.5 inch Toyota axle uses its own shafts, so do not mix this part with components from other Toyota axle sizes. Measure the overall length of your old shaft against 28.937 in and compare spline counts before assembly.

SKU: G/297-2044-002 Category:

Specification

Shipping weight 9.25 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Fitment

VehicleYearsTrims
Toyota Land Cruiser1975–1984Base

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What vehicles does the G2 97-2044-002 fit?

It fits the 1975–1984 Toyota Land Cruiser, and the 75-84 Toyota FJ40 Land Cruiser is the named application. Later Land Cruisers, including the FJ60, fall outside this part number, so confirm your year before ordering.

How long is the G2 97-2044-002 axle shaft?

Overall length is 28.937 in. It is the driver-side long axle in the front left inner position on the Toyota 9.5 inch front axle.

How many splines does the 97-2044-002 have?

It has 27 splines and is made of chromoly. Check that the spline count matches the joint you plan to use.

Is the 97-2044-002 a long or short axle?

It is a long axle, the driver-side long inner shaft in the front left position. Its overall length is 28.937 in and it has 27 splines, so it is the longer of the pair when compared with the passenger shaft.

How can I tell if the inner shaft needs replacing?

Replace it when the splines are rounded, the shaft is twisted or cracked, or the joint keeps clicking or shuddering after inspection. Pull the shaft and check the splines and joint before reassembly, since a worn spline can slip under load and leave the vehicle stuck on the trail.
