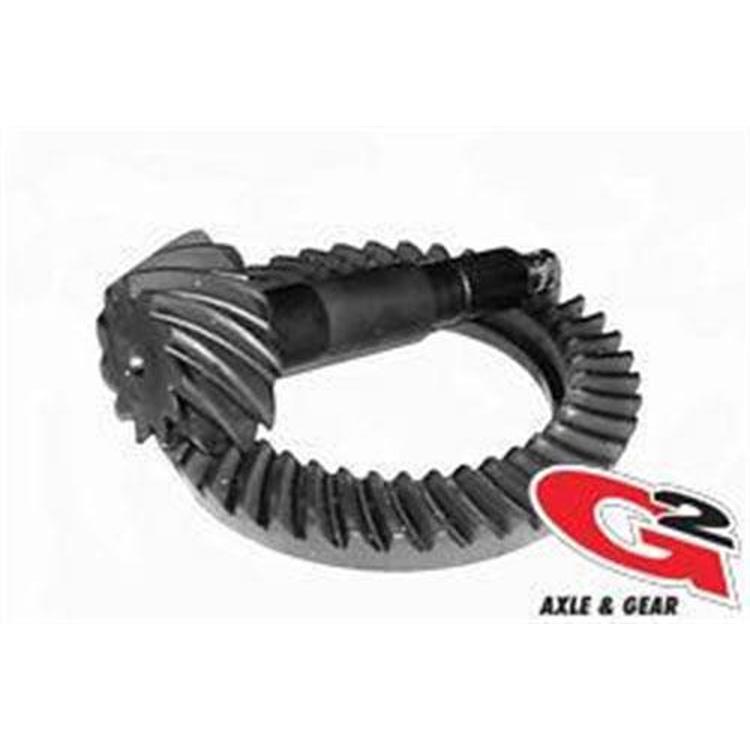

G2 Toyota 9.5 Inch 4.88 Ratio Ring and Pinion – 2-2063-488

G2 Axle and Gear

Shop Toyota Tundra Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Toyota 9.5 inch rear ring and pinion, 4.88 ratio
  • Fits 2007-2009 and 2014 Toyota Tundra
  • Computer heat treated 8620 steel, 10 year warranty
  • G2 part number 2-2063-488

Description

Overview

The G2 Axle and Gear 2-2063-488 is a Toyota 9.5 inch rear ring and pinion set with a 4.88 ratio. It fits the 2007-2009 and 2014 Toyota Tundra and can be used with all ratio carriers.

G2 describes its Performance Ring and Pinion sets as engineered for demanding applications, including oversized tires and high performance engines. The gears are computer heat treated 8620 steel, manufactured to O.E. specifications, double shot peened and double lapped.

The 2-2063-488 is a rear-only set. Because it works with all ratio carriers, the carrier is a separate part, and the 4.88 ratio should be matched to a carrier and to any front gears already on the vehicle. The set carries a 10 year warranty. Confirm the warranty terms before ordering.

Key features

  • Toyota 9.5 inch rear ring and pinion set
  • 4.88 gear ratio
  • Computer heat treated 8620 steel
  • Double shot peened and double lapped
  • Manufactured to O.E. specifications
  • 10 year warranty stated by G2
  • For use with all ratio carriers.

Carrier matching and setup

A 4.88 ring and pinion only works as intended when the carrier, pinion depth and backlash all agree with each other. Check the carrier you plan to use before ordering, since a carrier that does not match the ratio can make gears run hot, whine or wear the teeth early. Measure the existing carrier and the ring gear mounting before buying anything.

Installation usually includes new pinion and carrier bearings, seals and the shims that set mesh. Keep the old gear pattern in mind when checking the new set, and after the first trail runs recheck the carrier cap bolts and listen for changes in noise. A short break-in period helps the new teeth seat evenly.

  • Confirm the carrier ratio matches 4.88
  • Replace worn bearings when the gears come out
  • Recheck mesh after the break-in period

Specifications

Brand G2 Axle and Gear
Part number 2-2063-488
UPC 631410127973
Axle Toyota 9.5 Inches
Axle position Rear
Gear ratio 4.88
Material Computer heat treated 8620 steel
Finishing Double shot peened, double lapped
Warranty 10 year (per G2)

Not stated by the manufacturer: the tooth counts and whether installation hardware is included.

Vehicle fitment

It fits the 2007-2009 and 2014 Toyota Tundra across the whole model and years, not individual trims.

The manufacturer fitment list for part 2-2063-488 covers: 2007–2009, 2014 Toyota Tundra.

Not listed: Tundra model years between 2009 and 2014 and after 2014, and other Toyota trucks. Only 2007-2009 and 2014 are on the manufacturer list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A Toyota 9.5 inch ring and pinion needs correct pinion depth, backlash and contact pattern settings, plus a break-in period. Check that the carrier you use matches the 4.88 ratio.

SKU: G/22-2063-488 Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 12.90 × 12.80 × 3.10 in
brands

Fitment

VehicleYearsTrims
Toyota Tundra2007–2009, 2014Base, Limited, SR5

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What ratio is the G2 2-2063-488?

The G2 Axle and Gear 2-2063-488 is a 4.88 ratio set for the Toyota 9.5 inch rear axle. The 4.88 ratio applies to the rear differential only.

Does the 2-2063-488 fit a Toyota Tundra?

Yes, for 2007-2009 and 2014 Toyota Tundra models. Other years are not covered, so confirm your model year and rear axle before ordering.

How long is the warranty on the 2-2063-488?

The set carries a 10 year warranty. Confirm the warranty terms and what they cover with the seller before ordering the part.

Is the 2-2063-488 a front or rear gear set?

It is a rear set for the Toyota 9.5 inch axle, and it does not replace front gears. Confirm your model year and rear axle before ordering.

Can a Toyota 9.5 inch gear set be used with any carrier?

It can be used with all ratio carriers, but the carrier still has to be matched to the 4.88 ratio. Check the carrier and ring gear fit before installing, and have pinion depth and backlash set by a professional.
