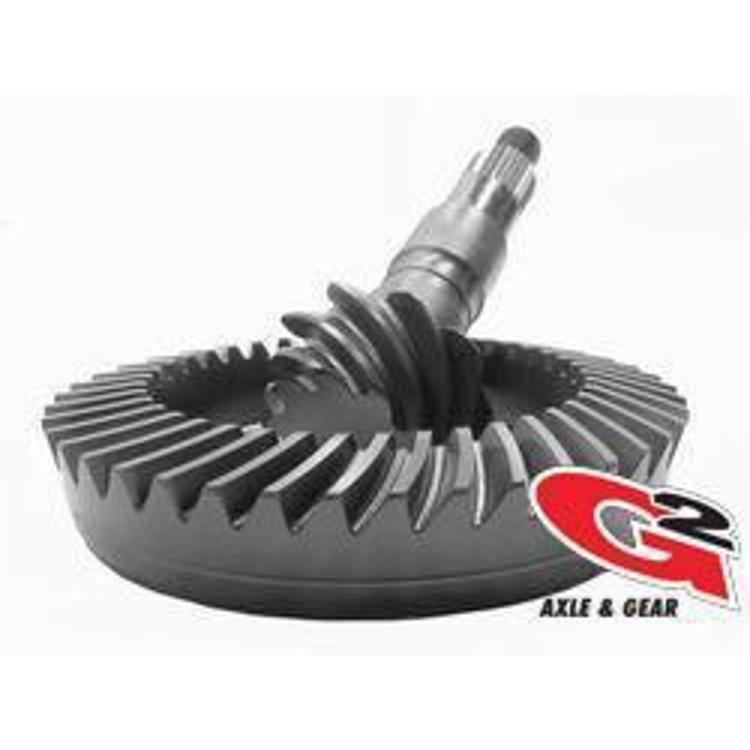

G2 GM 8.5 Inch 10 Bolt 5.38 Ratio Ring and Pinion – 2-2021-538

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion for GM 10 Bolt 8.5 inch axles
  • Gear ratio 5.38, part number 2-2021-538
  • Ring gear sizes 8.5 inch and 8.6 inch
  • No vehicle list; verify axle location

Description

Overview

The G2 Axle and Gear 2-2021-538 is a 5.38 ratio ring and pinion for GM 10 Bolt 8.5 inch axles. The pinion turns 5.38 times for each ring gear turn, so it multiplies torque more than the numerically lower sets do.

The set fits 8.5 inch and 8.6 inch 10 Bolt ring gears in both front and rear locations. Its line aims at oversized tires and high-performance builds. Vehicle models and years are not identified, so confirm the ring diameter and axle location before buying.

Key features

  • 5.38 gear ratio for GM 10 Bolt 8.5 inch axles
  • Covers 8.5 inch and 8.6 inch ring gear housings
  • Fits front and rear axle locations.
  • Ring gear and pinion supplied as a matched set
  • Made for oversized tires and high-performance engines.

Trail and road use

A 5.38 ratio puts more pull into each wheel at low speed, which helps when hauling, climbing or crawling. The trade-off is engine speed: at highway speed the motor turns faster, which can add noise and fuel use. Tire diameter changes the effect, so larger tires partly offset a numerically high gear.

Before committing, look at the transmission and transfer case gearing, the tire size and how the vehicle is driven most often. The axle is only one part of the drivetrain, and a gear change can feel mismatched if the other parts are ignored. Plan a few test drives after the swap to check temperature, noise and shift behavior under load.

  • Check tire diameter before choosing gears
  • Review transmission and transfer case ratios
  • Plan a break-in drive after setup

Specifications

Brand G2 Axle and Gear
Part number 2-2021-538
UPC 631410105605
Axle type GM 10 Bolt, 8.5 inch or 8.6 inch ring gear
Axle location Front or rear
Gear ratio 5.38
Axle manufacturer GM

Vehicle fitment

Fitment is not tied to specific vehicles. The 5.38 set fits GM 10 Bolt 8.5 inch and 8.6 inch axles, front or rear, so verify those on your vehicle. Axles outside that range need their own fit check before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 5.38 set needs careful tooth contact setup, so a gear shop with setup tools is the practical installer. Plan for a break-in run before sustained towing.

What’s included

One 5.38 ring and pinion set for GM 10 Bolt 8.5 inch axles, part number 2-2021-538.

Not included: Bearings, shims and install hardware are outside this kit and may need to be bought separately.

SKU: G/22-2021-538 Category:

Specification

Shipping weight 26.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Is the G2 2-2021-538 for GM 10 Bolt 8.5 inch axles?

Yes, it fits GM 10 Bolt 8.5 inch and 8.6 inch axles in front or rear locations. Confirm the ring diameter and location on your vehicle before ordering.

What is a 5.38 ratio good for?

The pinion turns 5.38 times per ring gear turn. It gives strong low-speed pulling force and torque multiplication, at the cost of higher engine speed on the highway.

Does the kit include carrier parts?

No carrier parts are described with the ring and pinion. Bearings, shims and hardware should be confirmed against your carrier.

How long should new gears break in?

Break-in is gradual. Keep early loads light and steady for the first stretch of driving, then increase load as the teeth settle. Recheck the carrier bolts and the axle fluid after the first few runs.
