G2 GM 8.5 Inch 10 Bolt 5.13 Ratio Ring and Pinion – 2-2021-513

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion for GM 10 Bolt 8.5 inch axles
  • Gear ratio 5.13, part number 2-2021-513
  • Covers front and rear axle locations
  • Vehicle fitment not listed; match the housing

Description

Overview

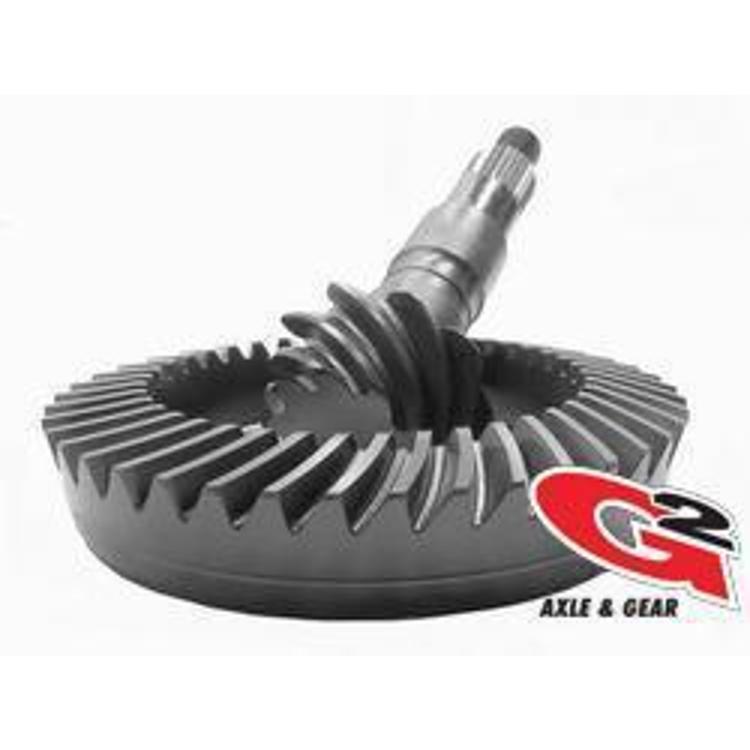

The G2 Axle and Gear 2-2021-513 is a 5.13 ratio ring and pinion for GM 10 Bolt 8.5 inch axles. The pinion turns 5.13 times for each ring gear revolution, a numerically high ratio that favors acceleration and low-speed pulling force over highway rpm, and that trade-off is the main reason to pick it.

The set fits the 8.5 inch and 8.6 inch 10 Bolt ring gears in both front and rear positions. It targets oversized tires and high-performance engines. Vehicle models and years are not identified, so measure the ring gear and confirm the axle location before ordering.

Key features

  • 5.13 gear ratio for GM 10 Bolt 8.5 inch axles
  • Fits 8.5 inch and 8.6 inch ring gear housings.
  • Fits front or rear axle locations.
  • Ring gear and pinion sold as one matched set
  • Made for oversized tires and high-performance engines.

Before you buy

A numerically high ratio like 5.13 changes how the axle feels day to day. The engine works harder at highway speed, so cruising rpm runs higher, but low-speed launches and loaded starts get stronger pull. Think about how the truck is used most. Daily driving with stock tires may feel busier, while trail work and towing usually benefit from the extra pull. Gear swaps are done with the axle out, so plan the labor and time together with the parts.

Gears seldom go in alone. Pinion bearings, carrier bearings and shims are often replaced during a swap, and a worn carrier can make new teeth wear quickly. Inspect the carrier and axle bearings while the housing is open. Keep a written record of the pinion setup so future service goes faster and the mesh is easier to restore.

  • Measure the ring gear before ordering
  • Plan labor time with the parts
  • Renew bearings that show roughness

Specifications

Brand G2 Axle and Gear
Part number 2-2021-513
UPC 631410093575
Axle type GM 10 Bolt, 8.5 inch or 8.6 inch ring gear
Axle location Front or rear
Gear ratio 5.13
Axle manufacturer GM

Vehicle fitment

Fitment is not tied to specific vehicles. The 5.13 set fits GM 10 Bolt 8.5 inch and 8.6 inch axles, so check the ring gear size and whether your housing is a front or rear unit. Any other axle family needs its own fit check before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 5.13 set needs correct tooth contact and carrier preload, and gear shops usually handle the setup. Expect a break-in period, and keep early loads light while the teeth settle.

What’s included

One 5.13 ring and pinion set for GM 10 Bolt 8.5 inch axles, part number 2-2021-513.

Not included: Carrier bearings, shims and installation hardware are outside this kit and may need separate purchase.

SKU: G/22-2021-513 Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Does the G2 2-2021-513 work with a GM 10 Bolt 8.5 inch axle?

Yes, it fits GM 10 Bolt 8.5 inch and 8.6 inch axles in front or rear positions. Confirm the ring gear size on your vehicle before ordering.

What does 5.13 do for acceleration?

The pinion turns 5.13 times per ring gear turn. That higher ratio gives stronger low-speed acceleration and pulling force, with more engine rpm at highway speed.

Is a carrier included with the gears?

No carrier comes with the gears. Bearings, shims and carrier hardware should be checked against your existing carrier before installation.

Should I replace the bearings when I install new gears?

Usually yes. Pinion and carrier bearings are often replaced with new ring and pinion sets because they wear at the same time as the gears. Inspect them when the housing is open and replace any that feel rough or loose before setup.
