G2 Ring and Pinion Set, Dana 44 / M220 Rear 4.88 Ratio – 2-2152-488

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear Dana 44 and M220 axle gear set
  • 4.88 gear ratio
  • Ring and pinion supplied as one set
  • Built for oversized tires and high-performance engines

Description

Overview

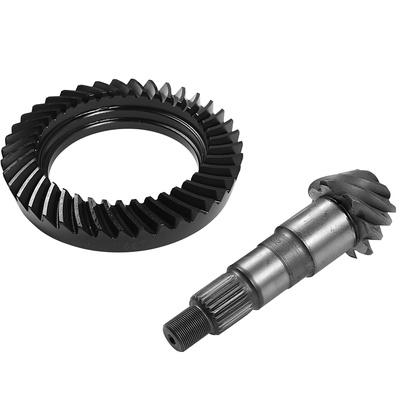

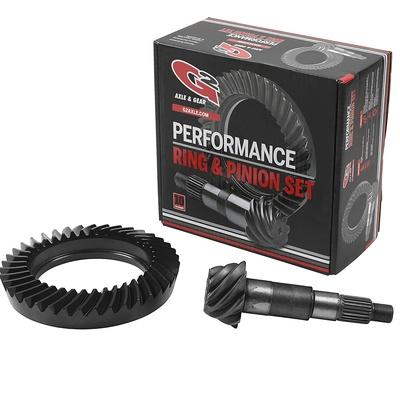

The G2 Axle and Gear ring and pinion set, part number 2-2152-488, is a 4.88 ratio gear set for the rear Dana 44 axle. It also fits the M220 axle. A ring and pinion sets the final drive ratio of an axle, so this set changes how the rear wheels turn relative to the engine.

G2 says its ring and pinion sets are designed to hold up to oversized tires and high-performance engines, and that the gears use current materials and manufacturing methods. The set is a matched ring gear and pinion, so the two are used together rather than mixed with other gears.

Key features

  • Rear axle set for the Dana 44 and M220 axles
  • 4.88 gear ratio
  • Designed by G2 for oversized tires and high-performance engines
  • Matched ring gear and pinion supplied as one set

Final drive and tire size

The final drive ratio decides how the engine’s turns become wheel turns. A 4.88 ratio makes the engine work harder at highway speed than a numerically lower ratio, and it also helps the vehicle pull when it is loaded or climbing. Larger tires add to the same effect, so tire diameter and gear ratio should be considered together.

Changing gears on a Dana 44 often brings a set of related parts into the job. Pinion bearings, carrier bearings, pinion seals and the axle fluid are commonly renewed when the gears are replaced, and the old carrier should be checked for wear or cracks. A careful setup of gear mesh and preload makes the new set quieter and longer lasting.

  • Renew pinion and carrier bearings with the gears
  • Replace the pinion seal during the rebuild
  • Check the carrier and housing for cracks
  • Refill with the correct fluid type for the axle

Specifications

Brand G2 Axle and Gear
Part number 2-2152-488
Axle location Rear
Axle type Dana 44 / M220
Axle manufacturer Dana
Gear ratio 4.88
Fitment type Universal fit (per G2)

Vehicle fitment

The set applies to the rear Dana 44 and M220 axles. Fitment depends on the axle housing and carrier under your vehicle.

Confirm your vehicle’s year, model and trim before ordering, and check that the rear axle is a Dana 44 or M220.

Installation notes

Ring and pinion sets need professional setup, including gear mesh and bearing preload, followed by a break-in period before the vehicle is driven hard.

What’s included

The set is the ring gear and pinion. Pinion shims, bearings and install hardware are not included.

Questions & Answers

What axle does the G2 2-2152-488 set fit?

It fits the rear Dana 44 axle and the M220 axle. The gear ratio is 4.88. Check your axle housing and carrier before fitting, since the housing and carrier decide the match for your vehicle.

What gear ratio is this set?

It is a 4.88 ratio. The ratio is the number of times the pinion turns for each full turn of the ring gear.

Does this set need professional installation?

Ring and pinion sets generally need professional setup, covering gear mesh and bearing preload, followed by a break-in period before the axle is used normally.

Will it handle oversized tires?

The set is designed to hold up to oversized tires and high-performance engines. For a specific tire size, confirm the setup with your installer before fitting.

Does a 4.88 ratio need a different axle fluid?

The fluid type depends on the axle and its limited-slip or locker setup, not on the ratio alone. Check the fill type and level once the new gears are installed, and refill with the correct fluid for the axle.

What tells you the axle needs new gears?

Whining or howling that changes with speed or load is a common sign. Chipped or pitted teeth, metal in the fluid and grinding during turns also point to wear. Inspect the gears and carrier before driving the axle hard.
