G2 Axle and Gear JL Dana 44 Rear 4.56 Ring and Pinion – 1-2152-456

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Based on the product title and description, fits the rear Dana 44 axle of 2018–2026 Jeep Wrangler JL models
  • 4.56 ratio ring and pinion, part number G/21-2152-456
  • Forged 8620 steel with precision machining to OE specifications
  • Heat treated gears with a lapped mating surface

Description

Overview

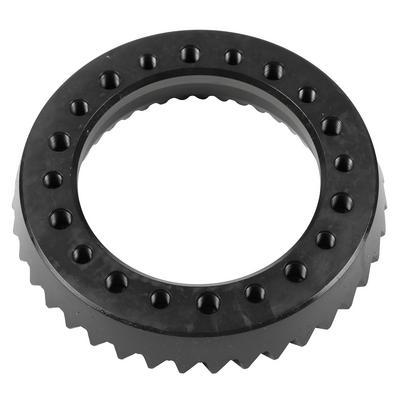

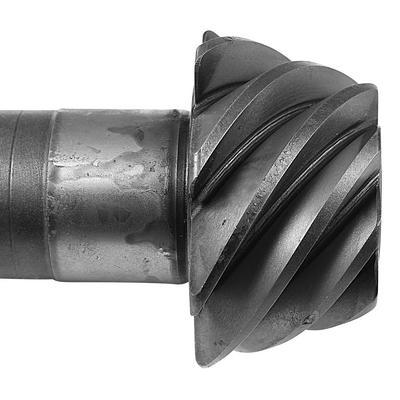

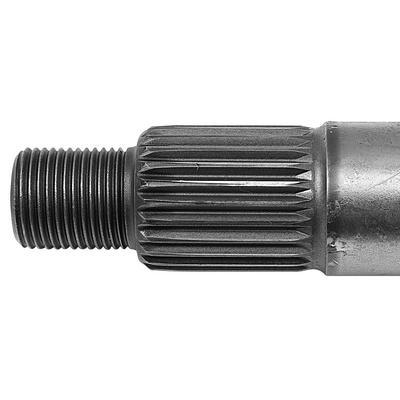

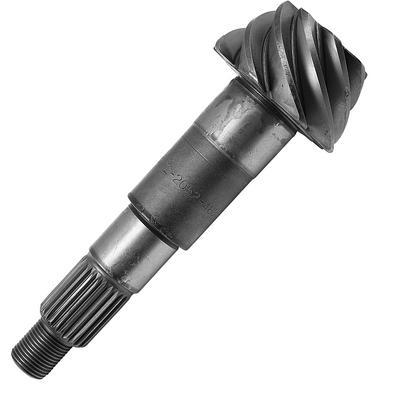

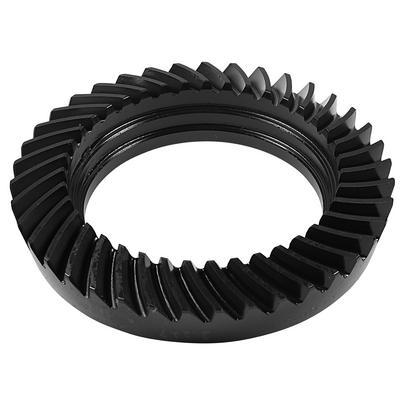

The G2 Axle and Gear 4.56 rear ring and pinion, part G/21-2152-456, is a rear Dana 44 AdvanTEK gear set. Based on the product title and description, it is for the rear axle of 2018–2026 Jeep Wrangler JL models.

The 4.56 is a numerically higher rear ratio than 4.10, so it adds low-speed torque multiplication and turns the engine a little faster at highway speed.

A 4.56 pair is often chosen when the Wrangler runs larger tires or heavier loads, because it adds low-speed torque multiplication without going to the highest ratios offered for the axle. Match the ratio to your tire size before ordering.

Key features

  • Forged 8620 steel gear pair
  • Precision-machined to OE specifications
  • Heat treated gears that hold up to daily driving
  • Lapped mating surface for smoother running

Tooth contact and setup

The rear gear mesh is the most important check after a ring and pinion change. A tooth contact pattern shows whether the pinion depth and backlash are correct, and it guides small shim adjustments when the pattern is off. Skipping this step can shorten gear life, even on a well-made set.

Rear gears last longer when they are set up accurately and driven gently at first. Keep an eye on the gear oil level and look for metal particles at the next fluid change. If noise appears early in use, stop and have the setup checked rather than waiting it out.

  • Record the pattern before and after adjustment
  • Replace the pinion seal whenever the nut is removed
  • Use gear oil suited to a limited-slip axle

Specifications

Brand G2 Axle and Gear
Part number G/21-2152-456
Axle location Rear
Axle type Dana 44 AdvanTEK
Gear ratio 4.56
Material 8620 steel, forged
Surface Lapped mating surface

Vehicle fitment

Based on the product title and description, this rear 4.56 set is for the Dana 44 axle of 2018–2026 Jeep Wrangler JL models.

The 2007–2018 Wrangler JK years are not covered by these dates. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Set pinion depth and backlash with gauges and check the tooth contact pattern before the rear axle goes back on the road. A break-in period is normal for a new set.

What’s included

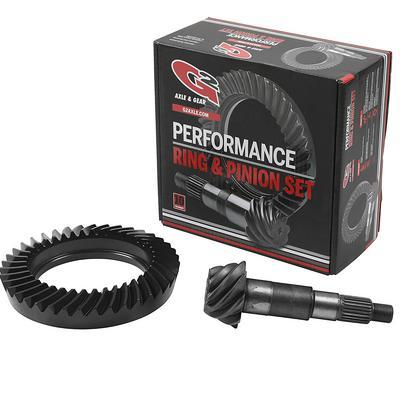

One 4.56 ring and pinion gear set for the rear Dana 44 axle.

Not included: bearings, shims, crush sleeve and seals for the install.

Fitment

VehicleYearsTrims
Jeep Wrangler (JL) likely fits2018–2026All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the rear G2 4.56 Dana 44 set fit a 2018–2026 Jeep Wrangler JL?

Yes, the rear Dana 44 AdvanTEK set suits 2018–2026 Jeep Wrangler JL models. Check your vehicle's year and trim before buying.

How does 4.56 differ from 4.10 on the rear axle?

4.56 is numerically higher, so it multiplies more torque at low speed and turns the engine faster at highway speed. 4.10 keeps engine speed lower on the highway but gives less low-speed torque multiplication.

Are these gears heat treated?

Yes. The gears are heat treated after forging from 8620 steel, and the mating surface is lapped to reduce friction that can lead to noise and wear.

Does the set come with install parts?

No. Only the gear pair is described, so bearings, shims, crush sleeve and seals must be bought separately for the rear Dana 44 install.

What causes gear whine after a rear change?

Whine usually comes from incorrect pinion depth, backlash that is too tight or too loose, or a rough tooth finish from early use. Checking the pattern and re-shimming when needed is the usual fix. Persistent noise after setup is a reason to have the gears reviewed, not to keep driving.
