G2 Ring and Pinion Set, Dana 44 / M210 Front 4.56 Ratio – 2-2151-456R

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Dana 44 and M210 front ring and pinion set, 4.56 ratio, part 2-2151-456R
  • Built for oversized tires and high performance engines
  • Popular axle manufacture Dana

Description

Overview

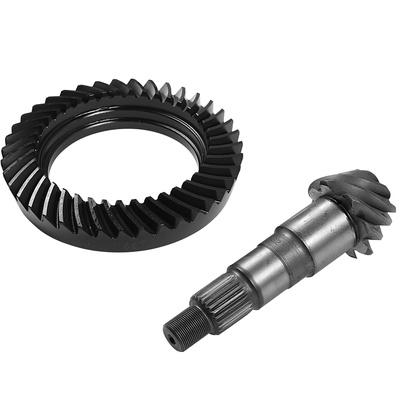

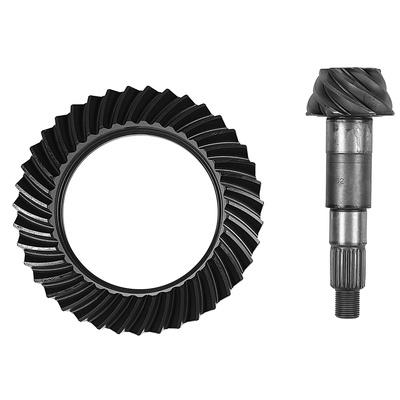

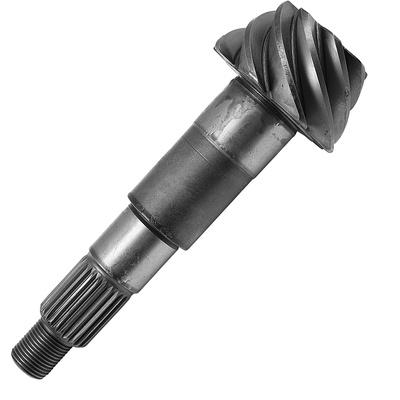

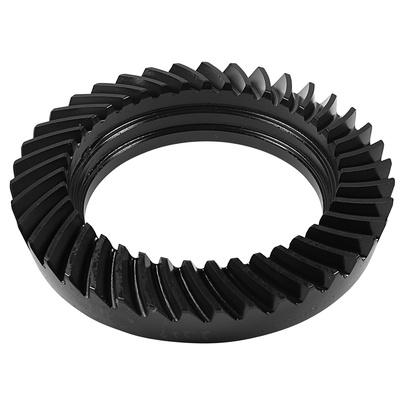

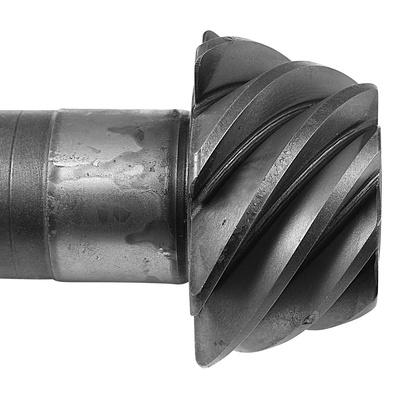

The G2 Ring and Pinion Set, Dana 44 / M210 Front 4.56 Ratio, part 2-2151-456R, is a front gear set at 4.56 for Dana 44 and M210 front axles.

G2 says its performance sets are built for demanding use, including oversized tires and high performance engines, and that they use newer materials and manufacturing methods for strength and quiet running.

Key features

  • 4.56 gear ratio
  • Front axle position
  • Built to hold oversized tires and high performance engines
  • Built with current materials and manufacturing methods.

Choosing a gear ratio

Choosing a ratio is a trade between low-speed pulling power and highway cruising. A numerically higher ratio like this one multiplies engine torque at the wheels, which helps when larger tires add rolling resistance, but it also raises engine speed at a given road speed.

Before ordering a set, consider the tire diameter you run, the transmission and transfer case gearing, and whether the axle is the front Dana 44 or M210 unit. Gear sets are often replaced together with carrier bearings, pinion seals and the matching differential cover gasket, so plan for those parts during the same job.

  • Measure the tire diameter before choosing a ratio
  • Replace carrier bearings when a new gear set goes in
  • Check the pinion seal and cover gasket during install

Specifications

Brand G2 Axle and Gear
Part number 2-2151-456R
Axle location Front
Axle type Dana 44
Gear ratio 4.56
Popular axle manufacture Dana

Vehicle fitment

Universal fit is listed, but no vehicle is named. Check the Dana 44 or M210 front application before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Set pinion depth and bearing preload on this 4.56 set with a gear setup tool, then confirm the tooth contact before the carrier is closed.

What’s included

One ring and pinion set.

Questions & Answers

Does the G2 2-2151-456R fit a Dana 44 front axle?

The set is for the Dana 44 and M210 front axles. Confirm the application for your truck before ordering, since both the axle type and the M210 front need to match your vehicle.

What ratio does this set run?

It is a 4.56 ratio set for front Dana 44 and M210 axles, built for oversized tires. Confirm the ratio and axle type against your vehicle before ordering.

Is this set front or rear?

Front, per the axle location in the product specifications for the 2-2151-456R set from G2 Axle and Gear, which covers the front position.

Should I replace the bearings when I install new gears?

Usually yes. Carrier and pinion bearings wear at a similar rate to the gears, and reusing worn bearings can change the preload you set. Inspect them during the install and replace any that feel rough or have play.
