G2 Dana 60 Front Reverse 4.10 Ratio Ring and Pinion – 2-2034-410R

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Front ring and pinion set with a 4.10 ratio, part G/22-2034-410R
  • Front location, Dana 60 Reverse axle type
  • Built for oversized tires and high-power engines
  • No vehicle models or years are named; match the axle type first

Description

Overview

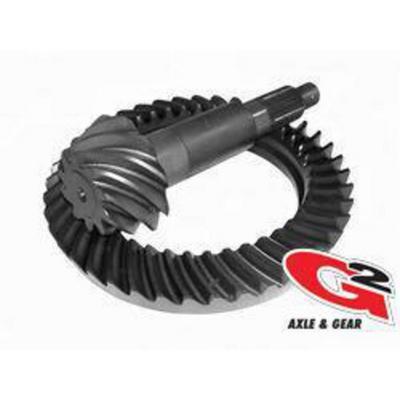

The G2 Axle and Gear Dana 60 Front Reverse 4.10 Ratio Ring and Pinion, part number G/22-2034-410R, is a front ring and pinion gear set with a 4.10 ratio for the Dana 60 Reverse axle.

This set is suited to oversized tires and high-power engines and uses current materials and manufacturing methods. Match the axle type and location to your housing, since fit is by axle rather than vehicle model.

Key features

  • 4.10 gear ratio
  • Front axle location
  • Dana 60 Reverse axle type
  • Designed for oversized tires and high-power engines

Setting up a 4.10 gear set

A 4.10 ratio lowers engine speed at a given road speed, which helps a heavy vehicle pull under load but raises rpm at highway speed. Gear ratio changes should be weighed against tire size and transmission gearing, so check the overall effect before settling on a ratio. A front Dana 60 set also affects steering and differential clearance in some builds.

Ring and pinion sets are matched as pairs, so the pinion and ring gear must come from the same set. Pinion depth and backlash are set during installation and drive the quality of the mesh. Keep the carrier shims and bearing parts in order so the new setup can be compared against the old one.

  • Use the ring and pinion as a matched pair
  • Check pinion depth and backlash
  • Break in the set per the installer’s guidance
  • Replace carrier bearings when gears are changed

Specifications

Brand G2 Axle and Gear
Part number G/22-2034-410R
Axle location Front
Axle type Dana 60 Reverse
Gear ratio 4.10
Popular axle manufacturer Dana

Vehicle fitment

No vehicle list is provided for this set. It is identified as a front Dana 60 Reverse gear set with a 4.10 ratio, so match both details to your housing before you choose it.

This set is for the front axle only and does not cover rear Dana 60 housings. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

It is for the front axle only, so rear Dana 60 housings need a different set. Confirm your vehicle’s year, model and trim before ordering.

What’s included

This entry covers the ring and pinion gear set only.

Not included: Check the set against your installation, including bearings, an installation kit and housing condition, before starting.

Questions & Answers

What gear ratio is G/22-2034-410R?

It is a 4.10 ratio. The part is a front ring and pinion gear set for the Dana 60 Reverse axle, and the only gear specification given is the 4.10 ratio.

Does this Dana 60 set fit a rear axle?

No. It is a front axle set, so rear Dana 60 housings are not its fit. Check your housing's location and axle type before choosing this part number.

Is this gear set made for specific vehicles?

No vehicle models or model years are named. Match the Dana 60 Reverse axle type, the front location and the 4.10 ratio to your current axle before you choose the part number.

Do I need new carrier bearings with a new gear set?

Often yes. Carrier bearings and pinion bearings wear with the old gear mesh, and mixing new gears with worn bearings can change setup. Inspect them during installation and replace any that show wear, pitting or looseness.
