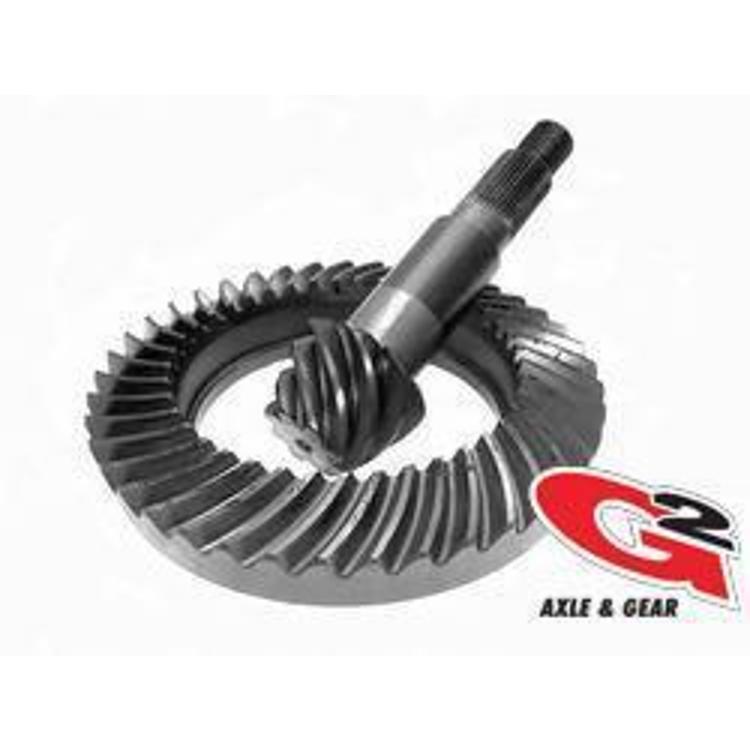

G2 Dodge 10.5 Inch 14 Bolt 4.10 O.E.M. Ratio Ring and Pinion – 1-2097-410

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 4.10 ratio O.E.M. series ring and pinion, part 1-2097-410
  • Rear axle location
  • Listed under the Chrysler 10.25 inch AAM axle type, with a Dodge 10.5 inch 14 bolt title
  • O.E.M. series, made under contract with original equipment manufacturers

Description

Overview

The G2 Axle and Gear 1-2097-410 is a 4.10 ratio O.E.M. series ring and pinion for the rear axle. It is made for the Chrysler 10.25 inch AAM axle type. The Dodge 10.5 inch 14 bolt housing name does not match that axle type, so confirm the housing before ordering.

G2 says its O.E.M. series gears are designed to run cooler and quieter than aftermarket gears, and that the company contracted with original equipment manufacturers to make them.

Key features

  • O.E.M. series 4.10 ring and pinion
  • Rear axle location
  • Chrysler 10.25 inch AAM axle type listed
  • Manufactured under contract with original equipment manufacturers.
  • Runs cooler and quieter than aftermarket gears.

Matching the housing

A ring and pinion sets the final drive ratio of the axle, so it changes how engine torque reaches the wheels. A 4.10 set gives more wheel torque at low speed, which helps with climbing and towing, while the engine turns faster at highway speed. The gears only work correctly inside the carrier and housing they were made for, so the axle type matters as much as the ratio.

Most gear swaps replace the pinion bearings, carrier bearings and crush sleeve along with the set. Old bearings can change preload and cause noise, so new ones are the safer choice. Inspect the carrier bores and the housing for cracks before assembly, and keep the matched gears together as one pair.

  • Check the housing and axle type before buying gears
  • Replace pinion and carrier bearings with the set
  • Inspect carrier bores for wear or cracks
  • Expect some noise until the gears settle in

Specifications

Brand G2 Axle and Gear
Part number 1-2097-410
UPC 631410093155
Gear ratio 4.10
Axle location Rear
Axle type Chrysler 10.25 inch AAM
Popular axle manufacturer Chrysler
Series O.E.M.

Vehicle fitment

No vehicle model or year is named for this 4.10 set. It is listed by axle type as the Chrysler 10.25 inch AAM, so match the housing and the axle name before ordering.

It is made for the Chrysler 10.25 inch AAM axle type. Match your vehicle’s year, model and trim before ordering.

Installation notes

Pinion depth, backlash and bearing preload on the 4.10 gears should be set by a driveline shop, followed by a break-in period.

What’s included

A matched O.E.M. series ring and pinion for the rear axle.

SKU: G/21-2097-410 Category:

Specification

Shipping weight 26.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Is 1-2097-410 for a Dodge 10.5 inch 14 bolt housing?

The set is made for the Chrysler 10.25 inch AAM axle type, which differs from the Dodge 10.5 inch 14 bolt housing name. Confirm the housing before ordering, since fit depends on the axle rather than a model.

Which carrier does the 4.10 set need?

No carrier is named for this set. Confirm the carrier and ratio match before installing, and have pinion depth and backlash set by a driveline shop.

Is this an O.E.M. series gear?

Yes, G2 places it in the O.E.M. series, which it says runs cooler and quieter than aftermarket gears and is made under contract with original equipment manufacturers.

Should the bearings be replaced with the gears?

Yes, in most cases. Fresh pinion and carrier bearings help the new gears hold their setup and reduce early noise. Reusing worn bearings can change preload after installation, so replacing them during a gear swap is the usual practice.
