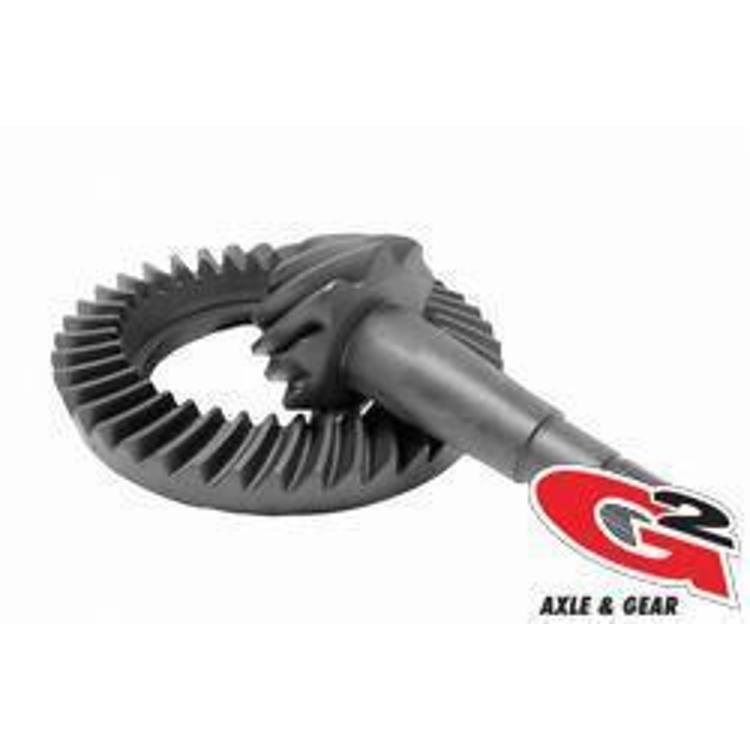

G2 Chrysler 8.25 Inch 4.10 Ratio Ring and Pinion – 2-2029-410

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 4.10 ratio ring and pinion for the Chrysler 8.25 inch rear axle, part 2-2029-410
  • For use on 2.56 and up carriers
  • Computer heat treated 8620 steel, double shot peened, double lapped
  • 10 year warranty from G2

Description

Overview

The G2 Axle and Gear 2-2029-410 is a 4.10 ratio ring and pinion for the Chrysler 8.25 inch rear axle. It is made for carriers rated 2.56 or higher, so the carrier should be at least 2.56 before the gears are installed.

G2 describes its performance gear sets as built for oversized tires and high performance engines. The 4.10 gears are made from computer heat treated 8620 steel and finished with double shot peened and double lapped surfaces.

Key features

  • 4.10 ratio rear ring and pinion
  • Chrysler 8.25 inch rear axle
  • For use on 2.56 and up carriers
  • Computer heat treated 8620 steel
  • Double shot peened surfaces
  • Double lapped gear set
  • Manufactured to O.E. specifications
  • 10 year warranty from G2

Carrier and housing checks

A carrier rating matters because the ring gear and pinion load the carrier housing, bearings and case bolts every time the axle turns under throttle. A carrier that is too light for the gear set can flex, which changes the mesh and leads to noise or early tooth wear. Before buying, measure the existing carrier, confirm its rating, and compare it with the axle housing on the vehicle.

Setup matters as much as the parts. Pinion depth sets where the gears meet, backlash sets the small clearance between teeth, and preload sets bearing tightness. These are usually checked with a dial indicator and a contact pattern test. Replacing the carrier bearings and pinion seal at the same time keeps the new set from settling into worn parts.

Specifications

Brand G2 Axle and Gear
Part number 2-2029-410
UPC 631410093827
Gear ratio 4.10
Axle location Rear
Axle type Chrysler 8.25 inch
Popular axle manufacturer Chrysler
Carrier requirement 2.56 and up
Material Computer heat treated 8620 steel

Vehicle fitment

It fits the Chrysler 8.25 inch rear axle at a 4.10 ratio. Make sure your housing is this size and that the carrier rating is 2.56 or higher.

Only the Chrysler 8.25 inch is named for this 4.10 set. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pinion depth, backlash and bearing preload on the 8.25 inch Chrysler gears should be set by a driveline shop, with a break-in period afterward.

What’s included

A matched ring and pinion for the Chrysler 8.25 inch rear axle.

SKU: G/22-2029-410 Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Which Chrysler axle does the 2-2029-410 ring and pinion fit?

It is made for the Chrysler 8.25 inch rear axle. Check the housing size and carrier before ordering, since year, model and trim decide the final fit.

What carrier does this 4.10 set need?

It needs a carrier rated 2.56 or higher. Check the carrier ratio before fitting, and have a shop set pinion depth and backlash during installation.

Is the 8.25 inch gear covered by a warranty?

Yes, it carries a 10 year warranty. The gears are computer heat treated 8620 steel with double shot peened and double lapped surfaces.

Is a break-in period needed for new ring and pinion gears?

Yes, a gentle break-in helps the new tooth surfaces seat evenly. Keep loads light and speeds moderate for the first stretch of driving, then change the differential fluid once the gears have settled. Check for leaks and listen for unusual noise afterward.
