G2 Dana 70 4.56 Ratio Ring and Pinion – 2-2035-456

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 4.56 ratio ring and pinion for the Dana 70 rear axle, part 2-2035-456
  • For use with 4.56 and up carriers
  • Computer heat treated 8620 steel, double shot peened, double lapped
  • Check with the vehicle manufacturer for proper fitment

Description

Overview

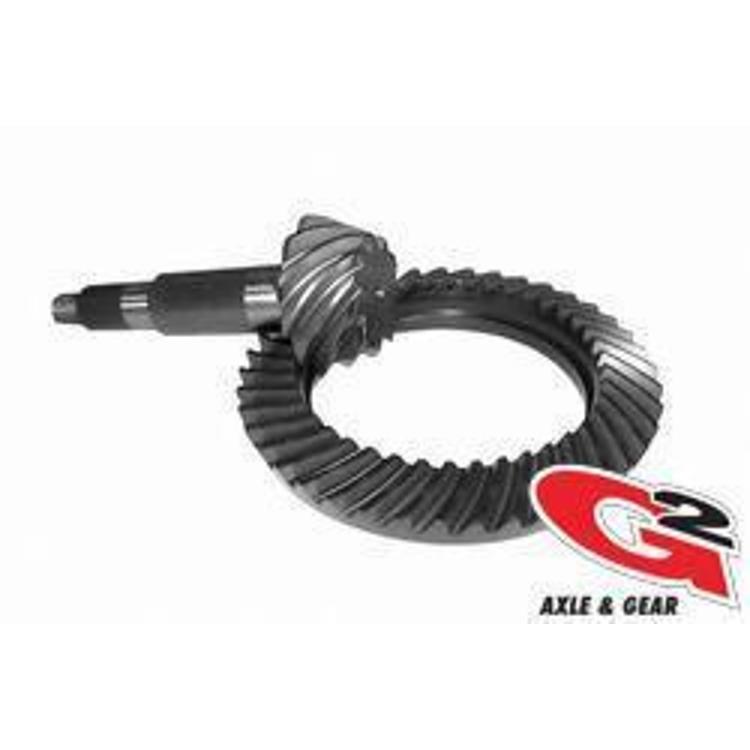

The G2 Axle and Gear 2-2035-456 is a 4.56 ratio ring and pinion for the Dana 70 rear axle. It is made for use with 4.56 and up carriers, so the carrier should be rated at 4.56 or higher.

G2 describes its ring and pinion sets as built for oversized tires and high performance engines. This Dana 70 set is made from computer heat treated 8620 steel with double shot peened and double lapped surfaces.

Key features

  • 4.56 ratio rear ring and pinion
  • Dana 70 rear axle
  • For use with 4.56 and up carriers
  • Computer heat treated 8620 steel
  • Double shot peened surfaces
  • Double lapped gear set
  • Manufactured to O.E. specifications
  • 10 year warranty from G2

Dana 70 axle basics

The Dana 70 is a heavy rear axle, and its ring and pinion carries torque from the driveshaft into the wheels. A 4.56 ratio multiplies torque at the wheels more than a numerically lower gear does, which many owners want with larger tires or towing loads. Because the gears carry so much load, the carrier, axle shafts and bearings should be checked along with the new set.

Preload and backlash on the Dana 70 are set with the carrier in the housing, so pinion depth must be right before the carrier goes back in. Replacing the pinion seal and carrier bearings during the job keeps the new mesh from settling. Look for chips, pitting or uneven wear on the old teeth, and for play in the axle shafts, as signs the rest of the rear end may also need work.

  • Replace the pinion seal at the same time
  • Refill with fresh gear oil after the first trail run

Specifications

Brand G2 Axle and Gear
Part number 2-2035-456
UPC 631410094282
Gear ratio 4.56
Axle location Rear
Axle type Dana 70
Popular axle manufacturer Dana
Carrier requirement 4.56 and up
Material Computer heat treated 8620 steel

Vehicle fitment

It fits the Dana 70 rear axle at a 4.56 ratio.

It is made for the Dana 70 housing, not other Dana axle sizes. Match the year, model and trim of your vehicle to the Dana 70 before ordering.

Installation notes

Dana 70 gears need pinion depth, backlash and bearing preload set by a driveline shop, followed by a break-in period on the 4.56 ratio.

What’s included

A matched ring and pinion for the Dana 70 rear axle.

SKU: G/22-2035-456 Category:

Specification

Shipping weight 15.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Is the 2-2035-456 ring and pinion made for a Dana 70 rear axle?

Yes, it is made for the Dana 70 rear axle with a 4.56 and up carrier. Confirm the year, model and trim of your vehicle before ordering, since the housing decides the final fit.

Which carrier does this 4.56 Dana 70 gear need?

It needs a carrier at 4.56 or numerically higher. Match the carrier ratio before fitting the gears, and have pinion depth and backlash checked during installation.

What is the gear built from?

The 4.56 gears are computer heat treated 8620 steel with double shot peened surfaces and double lapped teeth. G2 says they are manufactured to O.E. specifications and carry a 10 year warranty.

How do I tell if a Dana 70 carrier needs replacing?

Watch for clunks on acceleration, whine that changes with load, and metal in the differential oil. Carrier bearings that feel rough or have play should be replaced. If the carrier case or bearing bores show cracks or wear, a rebuild is usually a better choice than reusing it.
