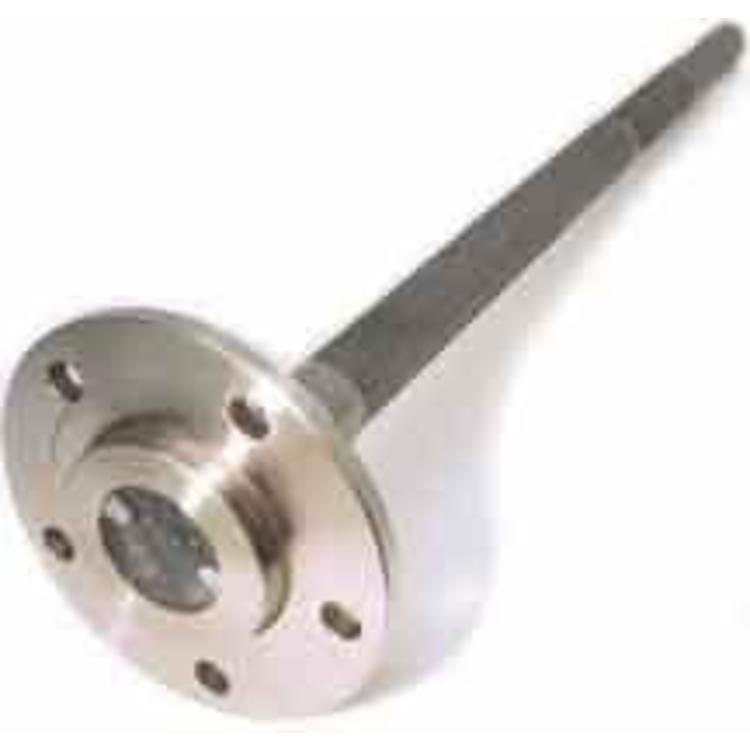

G2 GM 8.875 Inch 12 Bolt Replacement Axle Shaft – 95-2018-003

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • GM 8.875 inch 12 bolt rear axle shaft, 30 spline, 30.750 in overall length
  • 6 on 5.5 in bolt circle, 3.055 in pilot, 7/16 in press-fit studs
  • Made for 1965-1969 GM trucks; wheel studs not included

Description

Overview

The G2 Axle and Gear 95-2018-003 is a rear replacement axle shaft for the GM 8.875 inch 12 bolt axle, with 30 splines and a 30.750 inch overall length, made for 1965-1969 GM trucks.

The shafts are engineered to carry the extra load of high-torque setups and to address faults often found in factory shafts. The forging is high-grade alloy steel with a heat treatment designed to exceed original equipment specifications. With 30 splines, the shaft only engages gears cut for 30 splines, so check the differential before installing it.

Key features

  • Replacement shaft for the GM 12 bolt 8.875 inch rear axle
  • 30 spline with a 30.750 inch overall length
  • 6 on 5.5 inch bolt circle
  • Takes 7/16 inch press-fit wheel studs
  • 3.055 inch pilot
  • Fits either the driver or the passenger side
  • Axle shaft location: Driver or passenger side

Checking shafts before replacement

A rear axle shaft carries torque from the differential to the wheel, so the spline count, length and side all have to match the axle it goes into. Mismatched shafts can fail to engage the gears, or sit with the wrong pilot and bolt pattern. Before buying, measure the old shaft and compare the spline count, overall length and bolt circle, and confirm which side it is intended for.

Bearing and seal condition matter too. Check the axle bearing and seal for leaks or roughness when the shaft is out, and replace them if they show wear. Inspect the differential gears for pitting or chipping, since a new shaft cannot fix worn gear teeth. When pressing in wheel studs, seat them fully and check the fit before reinstalling the wheel.

  • Count the splines on the old shaft
  • Check the bearing and seal for wear
  • Inspect differential gears before reassembly

Specifications

The 95-2018-003 is a replacement axle shaft for the GM 12 bolt 8.875 inch, rear axle, with 30 splines and an overall length of 30.750 inches. Every figure in the table below is the manufacturer value for the 95-2018-003.

Brand G2 Axle and Gear
Part number 95-2018-003
UPC 631410106398
Part type Replacement axle shaft
Axle GM 12 bolt 8.875 inch, rear
Axle shaft location Driver or passenger side
Spline 30 spline
Overall length 30.750 inches
Bolt circle 6 on 5.5 inches
Wheel studs 7/16 inch press-fit wheel studs (not included)
Pilot 3.055 inches
Application stated 1965-1969 GM truck

Vehicle fitment

No vehicle year or model list is published for the 95-2018-003; check the manufacturer specifications for the exact application.

Confirm your truck has the 12 bolt 8.875 inch rear axle and falls within the 1965-1969 GM truck application before ordering.

Measure the shaft you are replacing and compare it with the 95-2018-003 listing for spline count, length and side.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The shaft uses 7/16 inch press-fit wheel studs, and the studs are not included, so studs must be pressed in separately. Check the 6 on 5.5 inch bolt circle and the 3.055 inch pilot against the original shaft.

What’s included

One axle shaft.

Not included: Wheel studs.

SKU: G/295-2018-003 Category:

Specification

Shipping weight 22.00 lbs
Package dimensions 37.00 × 7.50 × 7.30 in
brands

Questions & Answers

What axle does the G2 95-2018-003 shaft fit?

The G2 95-2018-003 is a replacement rear axle shaft for the GM 12 bolt 8.875 inch axle. It has 30 splines, a 30.750 inch overall length, a 6 on 5.5 inch bolt circle and a 3.055 inch pilot.

Which trucks is the 95-2018-003 made for?

It is made for 1965-1969 GM trucks with the 12 bolt 8.875 inch rear axle. Confirm the rear axle type and spline count on your truck before ordering.

Does the 95-2018-003 come with wheel studs?

No. G2 states wheel studs are not included. The shaft is made for 7/16 inch press-fit wheel studs, which need to be supplied separately.

Should I replace the bearing when I install a new axle shaft?

Often yes. Bearings and seals are easier to replace while the shaft is out, and a worn bearing can fail soon after a new shaft goes in. Check for roughness, play or leaks before deciding.
