G2 GM 7.5 Inch 10 Bolt 3.42 Ratio Ring and Pinion – 2-2015-342

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion set for GM 10 Bolt rear axles
  • Gear ratio 3.42, part number 2-2015-342
  • Covers 7.5 inch and 7.625 inch ring gear housings
  • No vehicle list; verify the housing first

Description

Overview

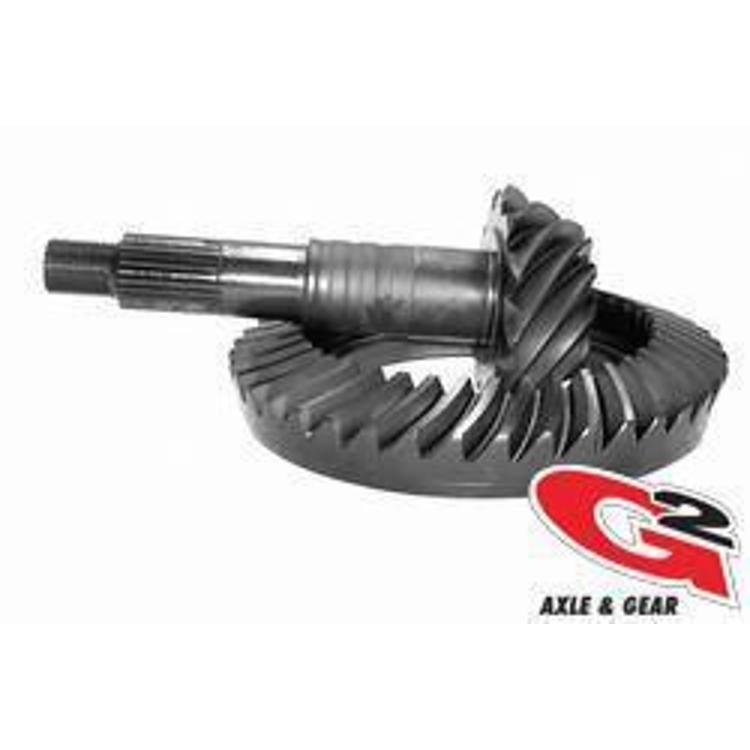

The G2 2-2015-342 is a 3.42 ratio ring and pinion for GM 10 Bolt rear axles. The pinion turns 3.42 times for each ring gear turn, a middle-range ratio. It fits 7.5 inch and 7.625 inch ring gear sizes, so the ring diameter on your axle has to match before installation.

The Performance Ring and Pinion sets are suited to oversized tires and high-performance engines, and they are made with current materials and manufacturing methods. Fit is decided by the GM 10 Bolt housing, so verify that before buying.

Key features

  • 3.42 gear ratio for GM 10 Bolt rear axles
  • Fits 7.5 inch and 7.625 inch ring gear housings
  • Ring gear and pinion supplied together
  • Designed for oversized tires and high-performance engines.
  • Rear axle location

Fitting a 10 Bolt gear set

A 3.42 ratio falls in the middle of the GM 10 Bolt options, so it balances highway rpm and low-speed pull. The pinion turns 3.42 times per ring gear turn, which affects how fast the engine spins at a given speed. Drivers who tow or carry heavy loads usually notice the extra pulling force, while daily drivers may find highway rpm a little higher.

Preparation matters before the new set goes in. Clean the housing and carrier, inspect the bearing bores and check the cover gasket surface for damage. Replacing carrier bearings and the pinion seal at the same time is a sensible habit, since the axle is open and those parts wear with the gears. Keep fluid and setup records so later service is simpler.

  • Clean the housing before assembly
  • Inspect bearing bores for scoring
  • Replace the pinion seal during the swap
  • Record shim and preload measurements

Specifications

Brand G2 Axle and Gear
Part number 2-2015-342
UPC 631410093483
Axle type GM 10 Bolt, 7.5 inch or 7.625 inch ring gear
Axle location Rear
Gear ratio 3.42
Axle manufacturer GM

Vehicle fitment

The set is matched to GM 10 Bolt rear axles, so verify the ring gear diameter and carrier on your vehicle before ordering. Check any axle that does not clearly match against its housing tag before buying.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Setting backlash and tooth contact on a 3.42 set takes measurement tools that most home garages do not have, so a gear shop is the usual installer. Allow for a break-in run afterward.

What’s included

One ring and pinion set for GM 10 Bolt rear axles, part number 2-2015-342.

Not included: Carrier bearings and shims are sold separately and may be needed for the installation.

SKU: G/22-2015-342 Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Will the G2 2-2015-342 work in a GM 10 Bolt rear axle?

Yes, it is made for GM 10 Bolt rear axles with 7.5 inch or 7.625 inch ring gears. Confirm your ring diameter before buying, and check the carrier type on your vehicle.

What ratio does 3.42 give?

The pinion turns 3.42 times for every ring gear turn. It sits between the lower and higher GM 10 Bolt options and affects engine rpm at a given speed.

Are bearings and shims supplied?

No bearings, shims or carrier hardware are described with this set. Check your carrier's bearing and shim requirements against the 3.42 gears before ordering, so nothing is missed at install.

Does a 3.42 set change how the engine sounds?

It can. Some gear whine is normal at certain speeds, but a new set should run quietly once the teeth seat. Persistent whine that changes with load points to tooth contact or bearing setup, so have it checked.

Why does pinion depth matter on a 10 Bolt?

Pinion depth sets where the teeth meet the ring gear, and the wrong depth causes noise and early wear. It is set together with backlash and carrier preload, so the three are usually adjusted as one job.
