Overview

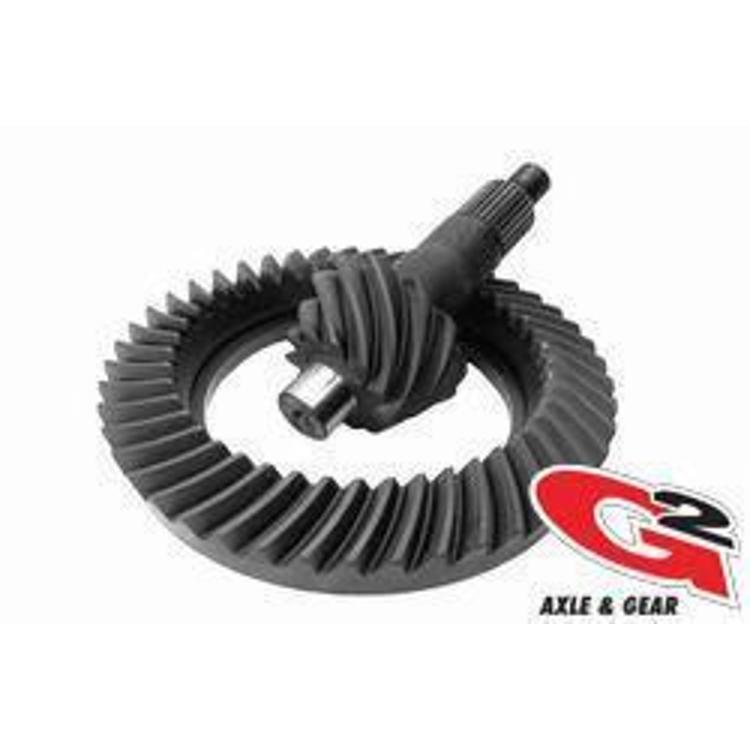

The G2 Axle and Gear 2-2023-410 is a 4.10 ratio ring and pinion for the rear GM 14 Bolt axle with a 10.5 inch ring gear. Its ratio means the pinion turns 4.10 times for each ring gear revolution, a numerically high gear that multiplies torque at the wheels for loaded and larger-tire use.
The set fits the GM 14 Bolt rear axle with a 10.5 inch ring gear. It is made with current materials and manufacturing and aims at oversized tires and high-performance engines. Vehicle models are not identified, so measure the ring gear and confirm the carrier before buying.
Key features
- 4.10 gear ratio for the GM 14 Bolt rear axle
- Ring gear sized 10.5 inch
- Ring gear and pinion supplied as one set
- Designed for oversized tires and high-performance engines.
- Made with current materials and manufacturing methods.
Heavy-duty gearing basics
The 14 Bolt is a heavy-duty rear axle used under trucks that tow and haul. A 4.10 gear is a numerically high ratio, so it spends more torque at the wheels, which helps when pulling a load from a stop. In return the engine turns faster at highway speed, and noise and fuel use can suffer. Gears of this size are a regular swap on work trucks.
Carrier bearings, pinion bearings and the pinion crush sleeve are commonly renewed alongside the gears. Inspect the carrier case, the axle bearings and the pinion seal for wear before setup. Check ring gear runout on the carrier and record the shim pack so future service goes faster.
- Measure pinion depth and backlash
- Renew the crush sleeve during a swap
- Inspect axle seals and bearings while open
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 2-2023-410 |
| Axle type | GM 14 Bolt, 10.5 inch ring gear |
| Axle location | Rear |
| Gear ratio | 4.10 |
| Axle manufacturer | GM |
Vehicle fitment
Fitment is not tied to specific vehicles. The set matches the GM 14 Bolt 10.5 inch rear axle, so measure the ring gear and confirm the carrier on your vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Gear mesh and carrier preload on a 14 Bolt set require measurement and a shop with heavy-axle setup experience. Break the new gears in before loaded use.
What’s included
One 4.10 ring and pinion set for the GM 14 Bolt 10.5 inch rear axle, part number 2-2023-410.
Not included: Carrier bearings and shims are not part of this set and may be needed.
