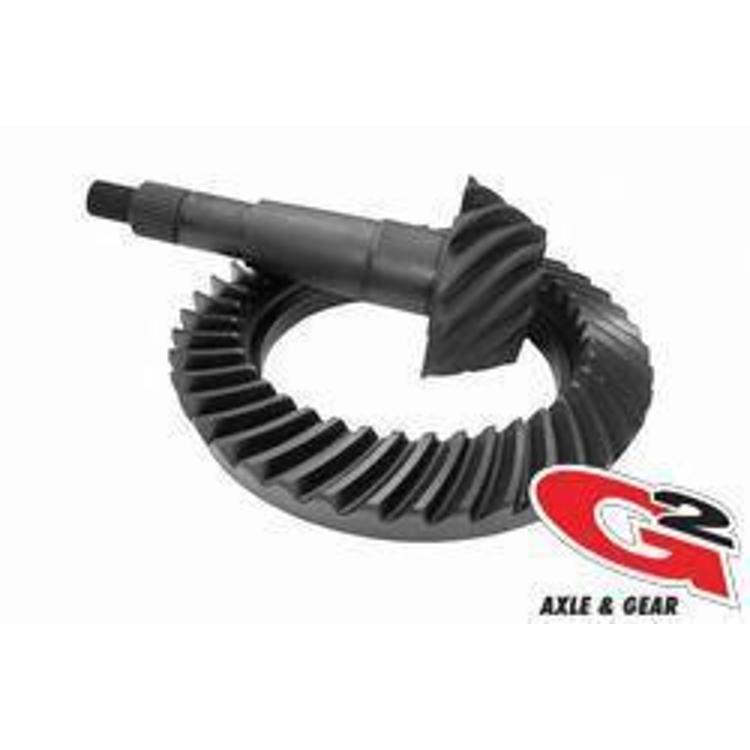

G2 GM 11.5 Inch AAM 14 Bolt 4.11 O.E.M. Ratio Ring and Pinion – 1-2024-410

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 4.11 ratio O.E.M. series ring and pinion for the 11.5 inch AAM rear axle, part 1-2024-410
  • Fits the Chrysler 11.5 inch housing.
  • For use with all ratio carriers
  • O.E.M. series, made under contract with original equipment manufacturers

Description

Overview

The G2 Axle and Gear 1-2024-410 is a 4.11 ratio O.E.M. series ring and pinion for the 11.5 inch American Axle Manufacturing (AAM) rear axle. It fits the Chrysler 11.5 inch housing and the GM 14 bolt 11.5 inch AAM axle type.

The O.E.M. series in this 4.11 set runs cooler and quieter than aftermarket gears. The gears are made under contract with original equipment manufacturers, and the set works with all ratio carriers.

Key features

  • O.E.M. series 4.11 ring and pinion
  • 11.5 inch AAM rear axle
  • Fits the Chrysler 11.5 inch housing.
  • Works with all ratio carriers
  • Made under contract with original equipment manufacturers.

Carrier and setup notes

The 11.5 inch AAM housing is a larger axle design than many common 8 and 10 bolt housings. A 4.11 ratio gives more pull at low speed for towing and loaded driving, while the engine works harder on long highway grades. Because the set works with all ratio carriers, the setup depends on the carrier in use rather than the gear alone.

Pinion depth, backlash and bearing preload are the most important settings after a gear swap, and they should be measured rather than estimated. Inspect the carrier bearings, pinion seal and cover gasket at the same time. Keep the gears matched and avoid reusing worn parts that could throw off the setup.

  • Set pinion depth with a gauge
  • Check backlash and tooth contact
  • Replace the pinion seal during the job
  • Verify carrier type before assembly

Specifications

Brand G2 Axle and Gear
Part number 1-2024-410
UPC 631410092905
Gear ratio 4.11
Axle location Rear
Axle type Chrysler 11.5 inch AAM; GM 14 bolt 11.5 inch (AAM)
Popular axle manufacturer American Axle Manufacturing
Carrier requirement All ratio carriers
Series O.E.M.

Vehicle fitment

This 4.11 set is made for the Chrysler 11.5 inch AAM and GM 14 bolt 11.5 inch AAM types at a 4.11 ratio. Confirm the housing before ordering.

Only the Chrysler 11.5 inch AAM; GM 14 bolt 11.5 inch (AAM) is named for this 4.11 set. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Pinion depth, backlash and bearing preload on the 11.5 inch AAM gears should be set by a driveline shop, followed by a break-in period.

What’s included

A matched O.E.M. series ring and pinion for the 11.5 inch AAM rear axle.

SKU: G/21-2024-410 Category:

Specification

Shipping weight 37.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Does 1-2024-410 fit a Chrysler 11.5 inch axle?

Yes, it fits the Chrysler 11.5 inch housing, and it is also made for the GM 14 bolt 11.5 inch AAM type. Confirm the housing before ordering.

Does this 4.11 set need a particular carrier?

It works with all ratio carriers, so the carrier ratio is not restricted. Pinion depth and backlash still need to be set during installation.

Is this an O.E.M. series gear?

Yes, G2 places it in the O.E.M. series, which it says runs cooler and quieter than aftermarket gears and is made under contract with original equipment manufacturers.

Do all ratio carriers need the same setup?

No. The set works with all ratio carriers, but each carrier still needs pinion depth and backlash checked. A driveline shop can set the gears for the specific carrier in use.
