G2 Dana 60 5.13 Ratio Ring and Pinion – 2-2034-513

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion for the Dana 60 axle
  • Gear ratio 5.13, part number 2-2034-513
  • Fits front and rear axle locations
  • No vehicle list; match the housing first

Description

Overview

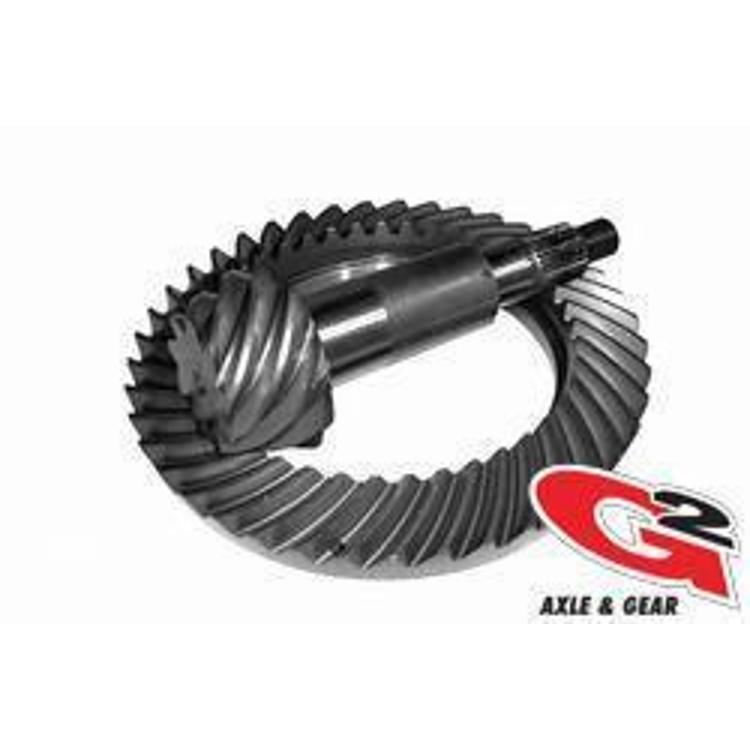

The G2 Axle and Gear 2-2034-513 is a 5.13 ratio ring and pinion for the Dana 60 axle. Its ratio means the pinion turns 5.13 times for every turn of the ring gear, a steep setting that favors acceleration and low-speed pulling.

The Performance line is made for oversized tires and high-performance engines, with current materials. This set fits the Dana 60 in front or rear positions. Verify the housing type and location on your vehicle before ordering.

Key features

  • 5.13 gear ratio for the Dana 60 axle
  • Fits front and rear axle locations.
  • Ring gear and pinion sold as a matched pair
  • Designed for oversized tires and high-performance engines.
  • Made with current technology and materials.

Choosing the right setup

A 5.13 ratio is one of the steeper gear choices for a Dana 60, so it changes how the drivetrain feels at every speed. Stronger pulling from a stop comes with higher engine revs on the highway, and the change is most noticeable with heavier tires and a loaded bed. Think about daily driving before committing, because a gear this steep can feel busy on long highway runs.

Pick the ratio together with tire diameter and transmission gearing, since those three decide the final speed and engine rpm. If the axle is being changed for a different tire size, recheck the carrier, pinion depth and gear oil level after installation. Expect the old gears to show wear signs such as chipped teeth or a whine under load, which is a good reason to inspect the carrier at the same time.

Specifications

Brand G2 Axle and Gear
Part number 2-2034-513
UPC 631410094213
Axle type Dana 60
Axle location Front or rear
Gear ratio 5.13
Axle manufacturer Dana

Vehicle fitment

This 5.13 set is matched to the Dana 60 axle in front or rear positions. Confirm the housing and carrier on your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 5.13 set calls for measured tooth contact and carrier preload, so a gear shop is the usual installer. A break-in run is needed before heavy use.

What’s included

One 5.13 ring and pinion set for the Dana 60 axle, part number 2-2034-513.

Not included: Carrier bearings, shims and installation hardware are not part of this set.

SKU: G/22-2034-513 Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Is the G2 2-2034-513 made for the Dana 60 front or rear?

It fits the Dana 60 in both front and rear positions. Confirm the position and housing on your vehicle before ordering, since fit depends on the year, model and trim.

Does a 5.13 ratio suit a truck with bigger tires?

G2 positions the Performance line for oversized tires, and a 5.13 ratio multiplies torque more than lower gears. The trade-off is higher engine speed at highway cruise, so confirm the fit before ordering.

Are bearings and shims included?

Carrier bearings and shims are not included with the set. Match them to your Dana 60 housing and carrier before installation so the gears seat correctly.

Should the carrier be inspected when new gears go in?

Yes. Check the carrier bearings, bearing caps and pinion bearing preload for wear before installing the gears. Worn carrier parts can let a new set run out of mesh and shorten its service life.
