G2 Ring and Pinion Set, Toyota 8″ IFS Clamshell Front 5.29 Ratio – 2-2057-529

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear ring and pinion set for the Toyota 8 inch IFS front axle
  • Gear ratio 5.29
  • Part number G/22-2057-529
  • Axle location: front
  • G2 labels fitment Universal Fit, but the axle type is Toyota 8 Inch IFS, so confirm the match before ordering

Description

Overview

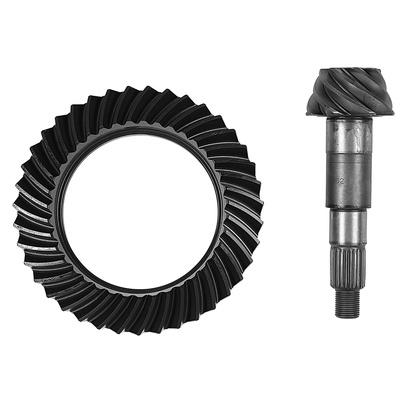

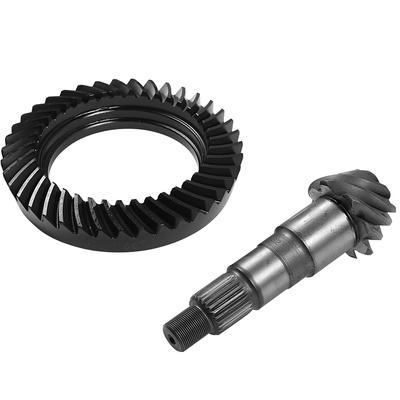

The G2 Axle and Gear ring and pinion set, part number G/22-2057-529, is a 5.29 ratio gear set for the front axle of a Toyota fitted with an 8 inch independent front suspension (IFS) axle. The ring gear and pinion pair set the final drive ratio between the driveshaft and the wheels, so the set has to match the axle it goes into.

G2 built this set for builds that run oversized tires and high performance engines. Match your front axle to the Toyota 8 Inch IFS type before buying. No Toyota model or model year is attached to this set.

Key features

  • 5.29 gear ratio for the Toyota 8 Inch IFS front axle
  • The set is built to hold oversized tires.
  • It uses modern materials and manufacturing for strength and quiet running.
  • Front axle location
  • Part number G/22-2057-529 for cross-checking

Front axle matching

An IFS front axle carries the ring and pinion inside a carrier that sits in the front differential housing, so the gears must match the carrier and the axle type. Check the carrier casting, the pinion bearing size and the shim pack before ordering. Gears from a different axle may look similar but will not mesh correctly, which causes noise and early wear.

Front driveshafts, CV joints and wheel hubs are worth inspecting during the job, since they are reached through the same front end work. Plan for careful tooth contact checks with marking compound before the axle goes back in service. A short test drive after setup can show whether the gears are running quiet and even.

  • Carrier casting and axle type match
  • Pinion bearing and shim pack
  • CV joints and hub seals
  • Contact pattern check before reassembly

Specifications

Brand G2 Axle and Gear
Part number G/22-2057-529
Part type Ring and pinion set
Axle manufacturer Toyota
Axle location Front
Axle type Toyota 8 Inch IFS
Gear ratio 5.29

Vehicle fitment

This set is sized for the Toyota 8 Inch IFS front axle only, so rear axles and other axle types are outside its use. Confirm the axle type matches your housing before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Ring and pinion sets need professional setup, including gear mesh, contact pattern and bearing preload, before the gears run quietly and wear evenly. Plan for a break-in period as the new gears seat. Incorrect mesh or preload can damage a new gear set quickly, so have a qualified differential shop install it.

What’s included

The set is a ring and pinion gear set. Check the package contents against your installation before starting, including bearings, shims and carrier parts if your build needs them.

Questions & Answers

What is part number G/22-2057-529?

G/22-2057-529 is a G2 Axle and Gear ring and pinion set with a 5.29 gear ratio, labeled for the Toyota 8 Inch IFS front axle. G2 gives no further part details beyond the title and attributes, so check your axle before buying.

Will this ring and pinion fit a Toyota 8 inch IFS front axle?

The set is labeled for the Toyota 8 Inch IFS front axle, so that axle type is the match to check. G2 also labels it Universal Fit, but no vehicle years or models are given. Compare your axle housing and gear specifications with the set before you buy.

What gear ratio is this set?

5.29. The set runs a 5.29 gear ratio and is designed to hold oversized tires and high performance engines. Confirm that the ratio suits your tire size and build before installing.

Do I need to replace the front axle seals when fitting new gears?

Usually it is a good time to do so. The pinion seal and carrier cover gasket are opened during the job, so replacing them avoids a second teardown. Check them for leaks and hardness before reassembly.

Can an IFS ring and pinion be swapped without a carrier rebuild?

Not usually. A new set needs fresh carrier bearings and correct shim or crush sleeve setup for mesh. Plan on opening the carrier, checking the bearings and setting preload before the first drive.
