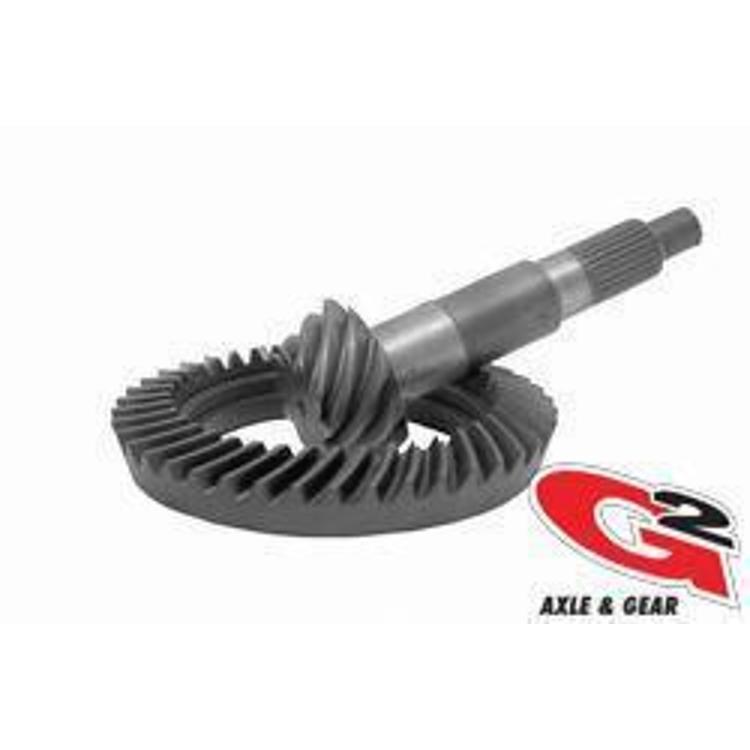

G2 Dana 30 Standard 4.56 Ratio Ring and Pinion – 2-2032-456

G2 Axle and Gear

Check today’s price on Amazon

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion set with a 4.56 gear ratio for Dana 30 Standard axles
  • For use with 3.73 and up carriers
  • Computer heat treated 8620 steel, double shot peened and double lapped
  • 10 year warranty from G2

Description

Overview

The G2 Dana 30 Standard 4.56 ratio ring and pinion gear set, part number 2-2032-456, is a 4.56 gear ratio set for Dana 30 Standard front axles, meant for use with 3.73 and up carriers. G2 Axle and Gear designed the set for oversized tires and high-output engines.

The set is made from computer heat treated 8620 steel. Double shot peening and double lapping are used for strength and a quieter run. It is made to O.E. specifications and carries a 10 year warranty.

Key features

  • 4.56 gear ratio
  • Computer heat treated 8620 steel
  • Double shot peened and double lapped
  • Manufactured to O.E. specifications.
  • 10 year warranty

Gear ratio and tire size

A numerically higher ratio changes how the drivetrain works. The engine turns faster at any given road speed, which helps when the truck is pulling heavy loads or running larger tires. Gearing is a trade-off, though, so the right choice depends on tire diameter, load and how the truck is used most.

Matching the carrier matters as much as the ratio itself. Confirm the carrier is the type this set is made for before buying, and check that the pinion and ring gear pattern is set correctly after installation. Carrier bearings, pinion bearings and axle seals are often replaced during the same job, since the gears are already exposed.

  • Check carrier type before ordering
  • Replace worn carrier bearings during the job
  • Recheck tire size after changing gears

Specifications

Brand G2 Axle and Gear
Part number 2-2032-456
UPC 631410093902
Gear ratio 4.56
Axle type Dana 30 Standard
Carrier requirement 3.73 and up carrier
Material Computer heat treated 8620 steel
Finish Double shot peened, double lapped
Warranty 10 years

Vehicle fitment

Fitment is listed by axle, not by vehicle: this set is for the Dana 30 Standard axle. It is not tied to a specific year, make or model. Check the axle type and carrier before ordering.

Installation notes

Ring and pinion gear sets need a professional setup, including pattern and backlash checks, and a proper break-in period after installation.

What’s included

One ring and pinion gear set.

SKU: G/22-2032-456 Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

What gear ratio is the G2 2-2032-456?

It is a 4.56 ratio set for Dana 30 Standard axles. It needs a 3.73 and up carrier, so the carrier must be at least that ratio.

Does the G2 2-2032-456 have a warranty?

Yes. It carries a 10 year warranty from G2 Axle and Gear. The gears are computer heat treated 8620 steel, double shot peened and double lapped.

Which axle is the 2-2032-456 made for?

It is made for the Dana 30 Standard axle. It is built to O.E. specifications and suited to oversized tires and high-performance engines.

Does a 4.56 ratio change highway cruising?

Yes. A numerically higher ratio raises engine speed at a given road speed, which helps with heavier loads and big tires but can increase highway rpm. Gearing choices depend on tire size and how the truck is used.

Should the carrier be serviced at the same time?

It is a good time to check it. Inspect the carrier bearings, pinion shims and differential case for wear, since those parts are removed during a gear swap. Replacing worn bearings now avoids a second teardown.
