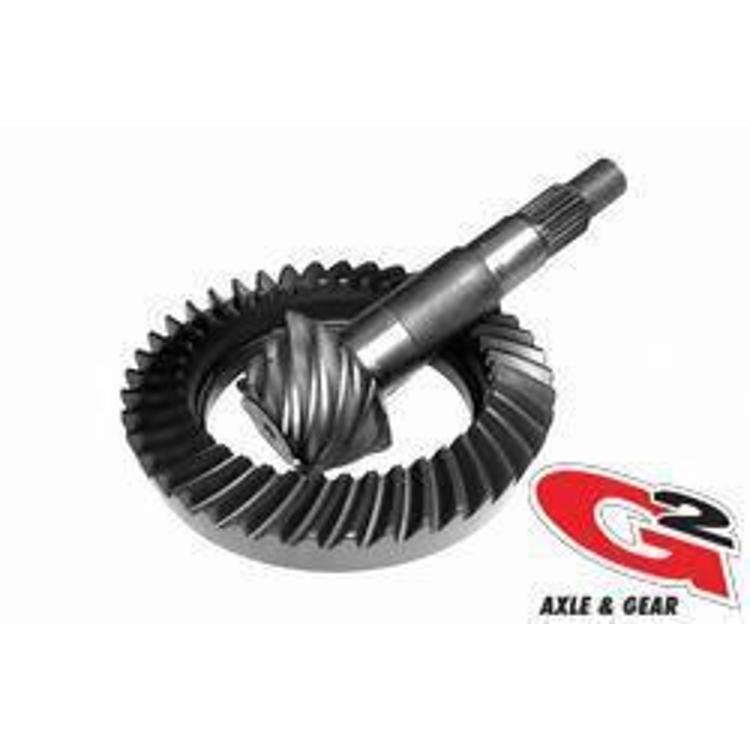

G2 Dana 35 Rear 4.88 Ratio Ring and Pinion – 2-2049-488

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • G2 Axle and Gear 4.88 ratio ring and pinion for the Dana 35 rear axle, part 2-2049-488
  • For use with 3.54 and up carriers
  • Computer heat treated 8620 steel, double shot peened, double lapped
  • 10 year warranty from G2

Description

Overview

The G2 2-2049-488 is a 4.88 ratio ring and pinion for the Dana 35 rear axle. It works with 3.54 and up carriers, so the carrier has to be rated at or above that ratio.

G2 says its performance sets are engineered for oversized tires and high performance engines. This 4.88 Dana 35 set is made from computer heat treated 8620 steel with double shot peened and double lapped surfaces.

Key features

  • 4.88 ratio rear ring and pinion
  • Dana 35 rear axle
  • For use with 3.54 and up carriers
  • Computer heat treated 8620 steel
  • Double shot peened surfaces
  • Double lapped gear set
  • Manufactured to O.E. specifications
  • 10 year warranty from G2

Dana 35 rear gearing

The Dana 35 is a compact rear axle often found in lighter four-wheel-drive trucks and Jeeps, and ring gear swaps on it are a practical way to change ratio for different tires or trail use. A 4.88 ratio moves the gearing toward low-speed pull, which helps on steep climbs, but it also raises engine speed at highway pace.

Carrier condition matters as much as the gears. Check the carrier bearings, pinion bearings and crush sleeve when the carrier is opened, and replace worn parts while the axle is apart. Keep the housing sealed and check the fluid level after the first few drives.

  • Check the carrier for bearing play
  • Inspect the pinion seal during the swap
  • Confirm fluid level after the first drives

Specifications

Brand G2 Axle and Gear
Part number 2-2049-488
UPC 631410094541
Gear ratio 4.88
Axle location Rear
Axle type Dana 35
Popular axle manufacturer Dana
Carrier requirement 3.54 and up
Material Computer heat treated 8620 steel

Vehicle fitment

The set covers the Dana 35 at a 4.88 ratio. Confirm the axle and carrier before ordering.

It is made for the Dana 35 only, and other Dana sizes are outside this set. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A driveline shop should set pinion depth, backlash and bearing preload on the Dana 35 gears, and the 4.88 set needs a break-in period before full use.

What’s included

A matched ring and pinion for the Dana 35 rear axle.

SKU: G/22-2049-488 Category:

Specification

Shipping weight 12.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Which axle is the 2-2049-488 ring and pinion for?

It is made for the Dana 35 rear axle and works with a 3.54 and up carrier. Confirm the axle and carrier before ordering, since fitment depends on your vehicle.

Does the 4.88 Dana 35 gear need a particular carrier?

It needs a 3.54 and up carrier, so check the carrier ratio before fitting the gears. Have pinion depth and backlash set during installation and allow for a break-in period.

What material is used?

The 4.88 gears are computer heat treated 8620 steel with double shot peened surfaces and double lapped teeth. G2 says they are manufactured to O.E. specifications and carry a 10 year warranty.

How long should a new rear gear set break in?

Plan for gentle driving over the first several hundred miles, with a fluid check afterward. A steady, light load lets the new contact pattern settle before the axle sees heavy towing or steep trail work.
