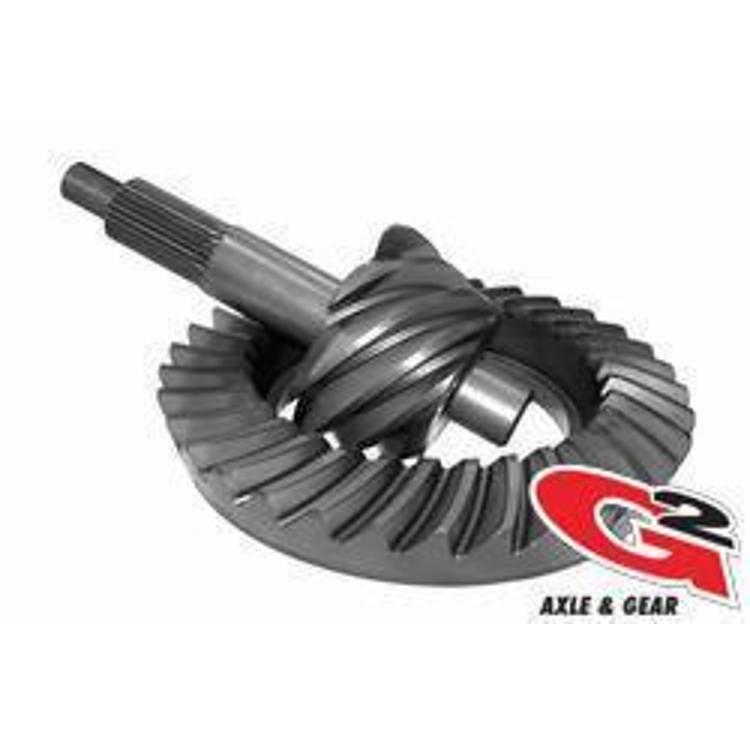

G2 Ford 9 Inch 6.20 Ratio Ring and Pinion – 2-2011-620

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion set for the Ford 9 Inch rear axle
  • Gear ratio 6.20, part number 2-2011-620
  • G2 rates the set for oversized tires and high-performance engines
  • Match the axle housing to the Ford 9 Inch type before ordering

Description

Overview

The G2 Axle and Gear 2-2011-620 is a 6.20 ratio ring and pinion set for the rear Ford 9 Inch axle. The ring gear and drive pinion inside the differential set the final drive ratio: a 6.20 ratio means the pinion turns 6.20 times for each full turn of the ring gear, which multiplies engine torque at the wheels.

The Performance Ring and Pinion line is built for oversized tires and high-performance engines, using current manufacturing technology and materials. The set is matched by axle type rather than by a vehicle model, so the 9 Inch housing on your vehicle decides fit before you buy.

Key features

  • 6.20 gear ratio for the Ford 9 Inch rear axle
  • Ring gear and pinion supplied as one matched set
  • It is designed for oversized tires and high-performance engines.
  • It is made with current manufacturing technology and materials.
  • Rear axle location

Break-in and first drive

A new ring and pinion needs a gentle start. The tooth faces are still polishing against each other during the first miles of driving, so light throttle and moderate speeds help them seat evenly. Hard launches, sustained heavy towing and high rpm runs are better saved until the gears have run in and the carrier has settled.

Gear oil matters as much as the gears. Use the gear oil grade and friction additive your axle requires, and fill to the correct level once the set is installed and the carrier is preloaded. Many rebuilders change the oil again after the initial break-in period to remove wear material picked up while the teeth mated. Keep an eye on temperature and noise during the first drives.

  • Avoid hard launches until the teeth have seated
  • Check the gear oil level after the first drives
  • Listen for a steady whine rather than clunking
  • Keep a record of the setup measurements for later service

Specifications

Brand G2 Axle and Gear
Part number 2-2011-620
UPC 631410110210
Axle type Ford 9 Inches
Axle location Rear
Gear ratio 6.20
Axle manufacturer Ford

Vehicle fitment

It is matched to the Ford 9 Inch rear axle, so check the housing and carrier on your vehicle against that axle type rather than a model year. A different Ford or non-9 Inch axle will not match this set. Check your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Setting tooth contact, backlash and carrier preload on a 6.20 set takes specialty tools, so a gear shop is the usual route. Plan on a break-in period as the new teeth seat, and keep the first hard runs moderate.

What’s included

One ring and pinion set (ring gear and drive pinion) for the Ford 9 Inch axle, sold under part number 2-2011-620.

Not included: Pinion bearings, shims and carrier installation parts are sold separately, so source them to match your 9 Inch carrier.

SKU: G/22-2011-620 Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Does this ring and pinion fit a Ford 9 Inch axle?

Yes, it is made for the Ford 9 Inch rear axle in the rear location. Decide fit by matching your axle housing and carrier type, then confirm your vehicle's year, model and trim before ordering.

What gear ratio is the G2 2-2011-620?

It is a 6.20 ratio. The pinion makes 6.20 turns for each ring gear revolution, a numerically high setting that multiplies torque at the wheels.

Does the set come with pinion bearings?

No. Pinion bearings, shims and carrier installation parts are sold separately, so plan to source them and confirm they match your 9 Inch carrier before installation.

What gear oil should go in with a new ring and pinion?

Use the gear oil grade and friction additive the axle requires, and fill to the correct level after the set is installed. Many rebuilders also change the fluid after the initial break-in trips to remove wear material picked up while the new teeth seat.

Can a 6.20 set be used for daily driving?

It can be, but the numerically high ratio raises engine rpm at highway speed and may feel loud in daily use. It suits towing, crawling and tire-heavy builds better than long highway trips.
