Overview

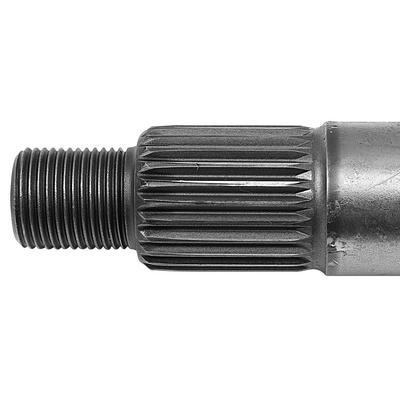

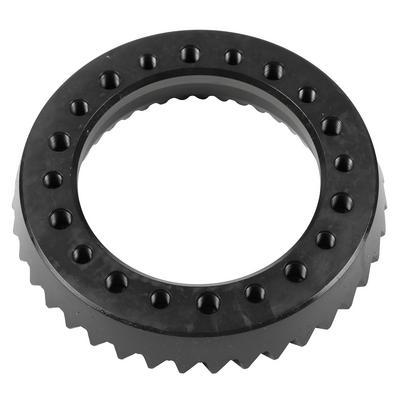

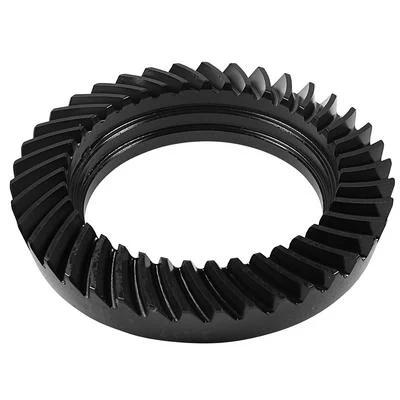

The G2 Axle and Gear 4.10 ring and pinion set, part G/21-2149-410, replaces the gears in a rear Dana 35 axle. Based on the product title and description, it is made for the Dana 35 AdvanTEK rear axle in 2018–2026 Jeep Wrangler JL models.
G2 builds its Performance Series gears for the increased loads of performance vehicles. A 4.10 ratio is taller than 4.56, 4.88 or 5.13, so it trades some low-speed torque multiplication for lower engine speed on the highway.
Key features
- Forged from 8620 steel for a strong base
- Precision-machined to OE specifications with tight tolerances that make setup easier
- Heat treated to hold up to daily driving
- Lapped mating surface for a smoother finish and less friction
- Designed to keep gear noise at OE levels
Choosing a ring and pinion ratio
Gear ratio is the main lever for how the drivetrain feels. A numerically lower ratio like this one keeps engine speed down on the highway, which reduces noise and fuel use on long drives. The trade-off is weaker acceleration from a stop and less pulling power when climbing with a loaded vehicle or larger tires.
A ring and pinion swap is usually done alongside a fresh set of bearings, shims and seals, since those parts set the mesh. Tire diameter, transmission gearing and transfer case ratio all affect the result, so check the whole driveline before committing. A professional setup with gauges is the normal way to finish a gear change.
- Check tire diameter before ordering
- Replace the pinion crush sleeve during install
- Verify the axle type on the vehicle
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | G/21-2149-410 |
| Axle location | Rear |
| Axle type | Dana 35 AdvanTEK |
| Gear ratio | 4.10 |
| Material | 8620 steel, forged |
| Surface | Lapped mating surface |
Vehicle fitment
Based on the product title and description, this set is for the rear Dana 35 axle of 2018–2026 Jeep Wrangler JL models.
Earlier Wrangler generations, including the JK (2007–2018), fall outside these years. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Ring and pinion sets like this one are normally set up by a professional, who checks pinion depth, carrier preload and backlash before the axle returns to service. Break the new gears in gradually, and support the vehicle securely before working under it.
What’s included

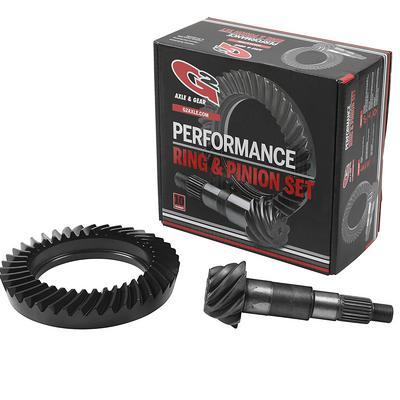

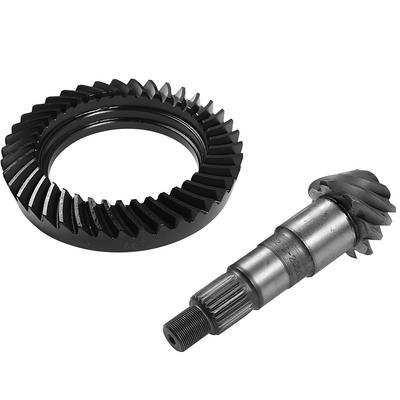

One ring and pinion gear set for the rear Dana 35 axle.
Not included: the bearings, shims, pinion nut, crush sleeve and seals needed to install the set.
