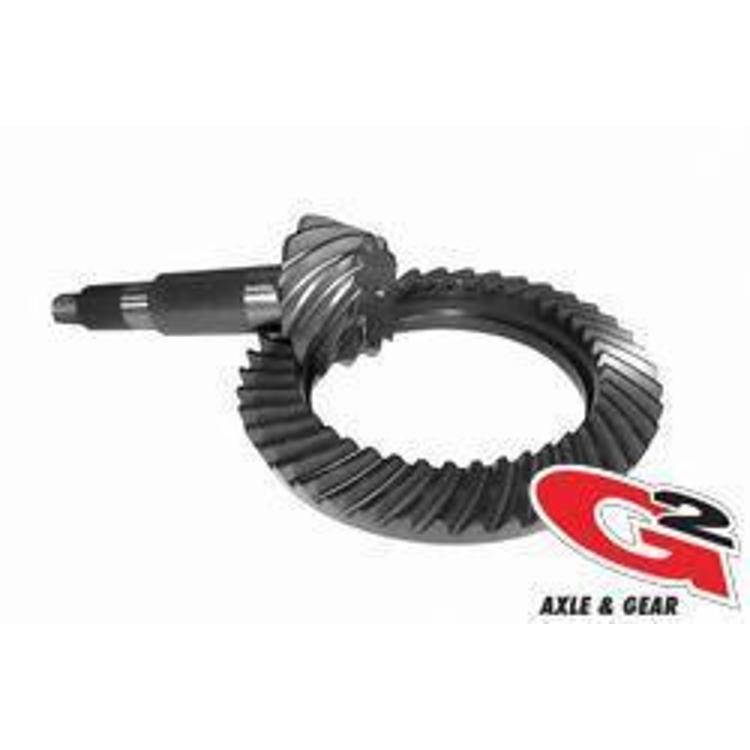

G2 Dana 70 3.73 Ratio Ring and Pinion – 2-2035-373

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion for the Dana 70 rear axle
  • Gear ratio 3.73, part number 2-2035-373
  • For use with a 4.10 and down carrier.
  • Check with the vehicle manufacturer for fitment

Description

Overview

The G2 Axle and Gear 2-2035-373 is a 3.73 ratio ring and pinion for the rear Dana 70 axle. The pinion turns 3.73 times for every ring gear revolution, a middle-range ratio that gives more low-speed pulling force than the 3.54 Dana 70 set while still keeping highway rpm moderate.

This 3.73 set is made to original equipment specifications, using computer heat treated 8620 steel. It requires a carrier rated 4.10 and down, so the carrier ratio and the Dana 70 rear housing should be confirmed before ordering.

Key features

  • 3.73 gear ratio for the Dana 70 rear axle
  • Requires a 4.10 and down carrier.
  • Computer heat treated 8620 steel
  • Double shot peened and double lapped
  • Manufactured to original equipment specifications.
  • The set carries a 10 year warranty.

Carrier ratio and gearing

A 3.73 ring and pinion gives a middle-range balance between low-speed pulling and highway rpm. Because the set is tied to a 4.10 and down carrier, the carrier ratio is the first thing to match. A carrier that is numerically higher changes the mesh and can cause noise or early wear even when the gears fit physically.

Heat treated steel and shot peened teeth help the gears handle repeated loads. Good results still depend on a clean, correctly set carrier, proper lubricant and a gradual break-in. Inspect the bearing seats and carrier cover during the job so the new gears start from sound parts.

  • Confirm the carrier ratio before ordering
  • Check the carrier bearing bores for wear
  • Use the lubricant type called for by the gear shop

Specifications

Brand G2 Axle and Gear
Part number 2-2035-373
UPC 631410094268
Axle type Dana 70
Axle location Rear
Carrier requirement 4.10 and down
Gear ratio 3.73
Material Computer heat treated 8620 steel
Finish Double shot peened, double lapped
Warranty 10 year
Axle manufacturer Dana

Vehicle fitment

This set requires a carrier rated 4.10 and down. Confirm the Dana 70 rear housing and the carrier ratio before ordering, since a numerically higher carrier is not a match.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the set is tied to a carrier ratio, the carrier must be checked before any gear work starts. A gear shop should set tooth contact and preload, then the gears need a break-in period.

What’s included

One 3.73 ring and pinion set for the Dana 70 rear axle, part number 2-2035-373.

Not included: Carrier bearings, shims and carrier parts for the 4.10 and down ratio are not included.

SKU: G/22-2035-373 Category:

Specification

Shipping weight 20.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Which carrier does the G2 2-2035-373 need?

It needs a 4.10 and down carrier. Check the carrier ratio before ordering, since a numerically higher carrier is not a match for this 3.73 Dana 70 ring and pinion.

Does G2 back this set with a warranty?

The set carries a 10 year warranty. Keep your purchase record and review the warranty terms before installation, so any claim can be handled quickly.

What steel is used in the gears?

The gears are made from computer heat treated 8620 steel and finished by double shot peening and double lapping. Carrier bearings and shims are not included, so check your carrier before installation.

Can a 3.73 set be used with a different carrier?

Only if the carrier ratio matches the requirement for this set. Verify the carrier before buying, because a mismatch changes the gear mesh and can make the drivetrain noisy or prone to early wear.

Does the pinion bearing need replacing?

Usually it is replaced along with the gears. A new pinion bearing keeps preload consistent and avoids reusing a bearing that has already seen loads with the old gears.
