G2 Dana 35 Rear 4.56 Ratio Ring and Pinion – 2-2049-456

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion set for a rear Dana 35 axle
  • 4.56 gear ratio
  • For use with a 3.54 and up carrier
  • Computer heat treated 8620 steel, double shot peened and double lapped
  • 10 year

Description

Overview

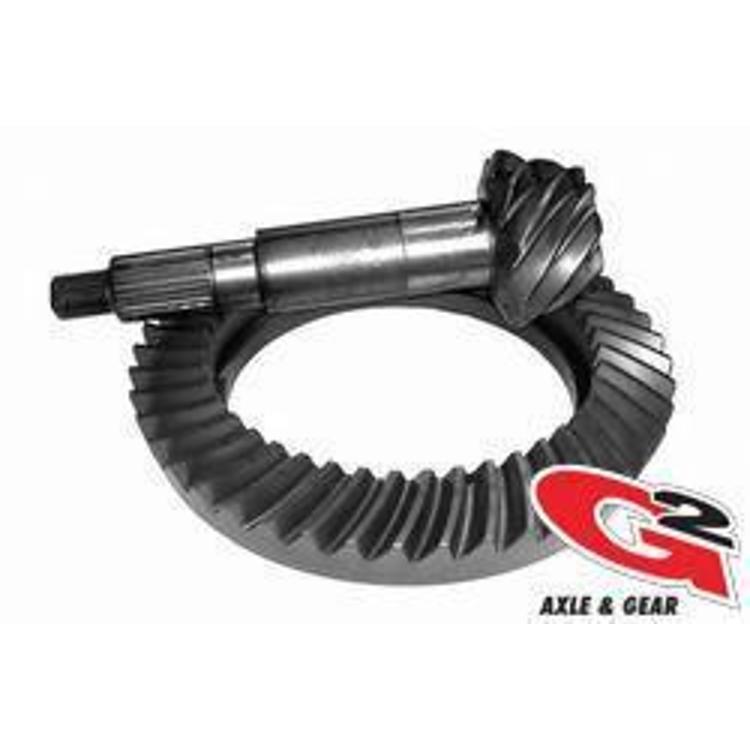

The G2 Axle and Gear Dana 35 Rear 4.56 Ratio Ring and Pinion, part number 2-2049-456, is a rear ring and pinion gear set with a 4.56 gear ratio for the Dana 35 axle. It is for use with a 3.54 and up carrier and is made of computer heat treated 8620 steel.

These G2 Performance sets are made for demanding use, including oversized tires and high-performance engines. The gears are made to O.E. specifications, double shot peened and double lapped, and come with a 10 year warranty. The set fits a Dana axle rather than a named vehicle, so match the axle and carrier to your build.

Key features

  • 4.56 gear ratio
  • Rear Dana 35 axle
  • For use with a 3.54 and up carrier
  • Computer heat treated 8620 steel
  • Manufactured to O.E. specifications
  • Double shot peened and double lapped
  • 10 year warranty

Gear mesh and wear

Ring and pinion gears wear through their teeth first, and the pattern on the tooth flanks shows how the mesh is working. A pattern that sits toward the toe or heel, or that is too close to the top or bottom of the tooth, points to a setup that needs correction. Inspect the teeth for pitting, chipping or scoring before reusing any carrier parts.

Gear ratio affects how the axle behaves with the tire size and engine in use. A 4.56 ratio is a numerically higher ratio that pulls harder at low speed, which many owners choose for larger tires. Changing ratio usually means changing the carrier matching too, so keep the gear set matched to the carrier it will run in.

Specifications

Brand G2 Axle and Gear
Part number 2-2049-456
UPC 631410094534
Product type Ring and pinion gear set
Axle location Rear
Axle type Dana 35
Gear ratio 4.56
Carrier For use with 3.54 and up carrier
Material Computer heat treated 8620 steel
Finishing Double shot peened, double lapped
Warranty 10 year
Fit type Universal fit

Vehicle fitment

G2 Axle and Gear names the Dana 35 axle but no vehicle, years or chassis code, and no fitment list is given. Check that your axle is a rear Dana 35 and that your carrier is a 3.54 and up carrier.

Axle names are not vehicles, so no vehicle is named here. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Driveline and axle parts turn at high speed, so professional installation is the safer choice. Support the vehicle securely on jack stands and tighten each fastener to the correct torque. Check clearance and joint angles through the full range of suspension travel, then re-check fasteners and fluid levels after the first few miles. After any suspension or driveline change, listen for vibration and have it inspected if it appears.

What’s included

The set is one ring and pinion gear set only, so bearings, shims and a master install kit must be sourced separately.

Not included: bearings, shims or a master install kit, none of which G2 Axle and Gear lists.

SKU: G/22-2049-456 Category:

Specification

Shipping weight 12.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

What gear ratio is the G2 2-2049-456?

The G2 2-2049-456 is a 4.56 ratio ring and pinion set for the rear Dana 35 axle. It is for use with a 3.54 and up carrier.

What is the G2 2-2049-456 made of?

The gears are made of computer heat treated 8620 steel. G2 Axle and Gear says they are manufactured to O.E. specifications, double shot peened and double lapped.

Does the G2 2-2049-456 fit a specific vehicle?

The set is for the rear Dana 35 axle and has a universal fit, so no particular vehicle is tied to it. Confirm that your axle is a rear Dana 35 and that your carrier is a 3.54 and up carrier before ordering.

How do I tell when a ring and pinion needs replacing?

Look for a whine that changes with speed or load, metal in the gear oil, or a tooth pattern that will not settle after adjustment. Any chipped or pitted teeth mean the set should be replaced rather than run further.
