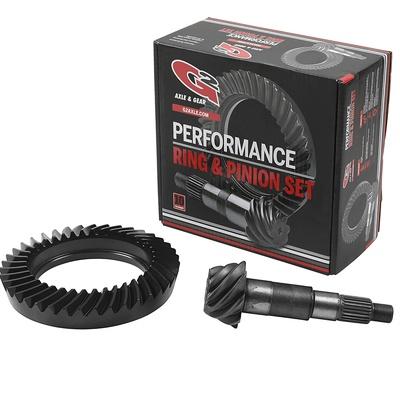

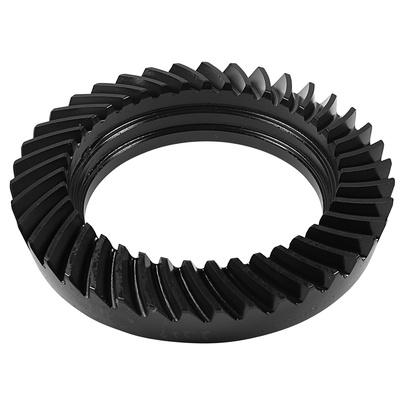

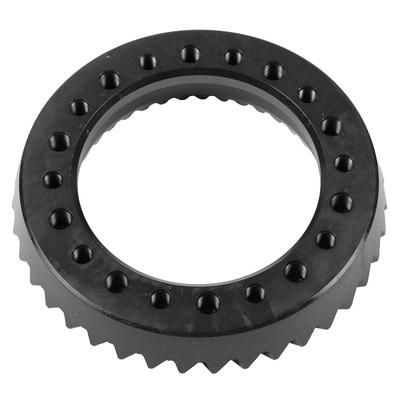

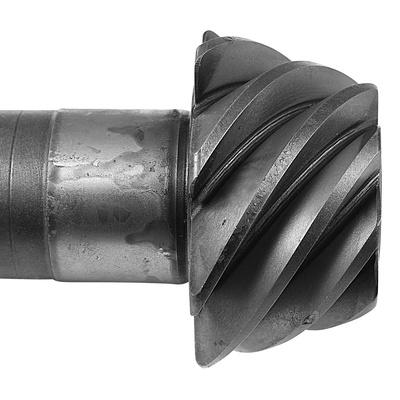

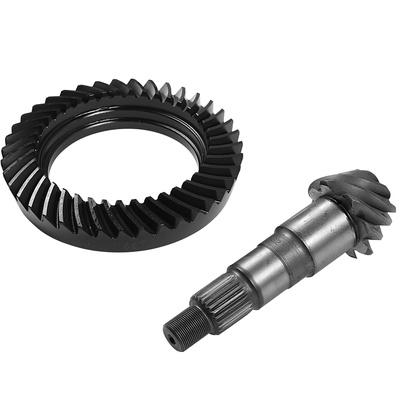

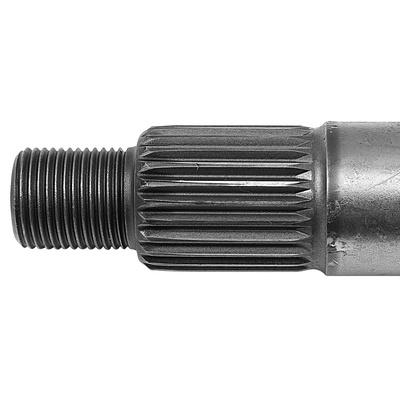

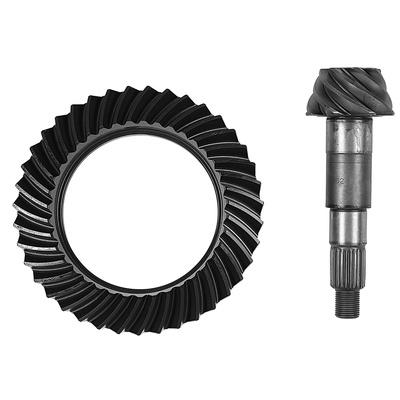

G2 Ring and Pinion Set, Dana 35 / M190 Rear 4.56 Ratio – 2-2149-456

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear Dana 35 and M190 axle gear set
  • 4.56 gear ratio
  • Ring and pinion supplied as a matched pair
  • Built for oversized tires and high-performance engines.

Description

Overview

The G2 Ring and Pinion Set for the Dana 35 and M190 rear axles, part number 2-2149-456, is a 4.56 ratio gear set for the rear Dana 35 and M190 axles. The axle housing under your vehicle decides whether the set applies.

A 4.56 ratio means the pinion turns 4.56 times for each full turn of the ring gear. G2 says its ring and pinion sets are designed for oversized tires and high-performance engines, with materials and manufacturing methods it describes as the latest available.

Key features

  • Rear Dana 35 axle set, also fitting the M190 axle
  • 4.56 gear ratio
  • Matched ring gear and pinion supplied as one set
  • Designed for oversized tires and high-performance engines

Choosing a gear ratio

A ratio sets how much the engine speed is multiplied at the wheels. A numerically higher ratio gives quicker acceleration and more pulling force at low speed, at the cost of higher engine revs on the highway. Taller tires push the engine speed up further, so the ratio and tire size should be chosen together.

Gear sets are usually changed along with other drivetrain parts. Check the pinion bearings, carrier bearings and pinion seal when the ring and pinion is replaced, since worn parts can affect gear mesh and noise. A rear axle that is being opened is also a good time to inspect the differential for wear.

  • Confirm the axle is a Dana 35 or M190 before ordering
  • Match the new gears with the matching pinion and ring
  • Replace the carrier bearings and pinion seal when the gears are changed
  • Check the axle fluid type before refilling

Specifications

Brand G2 Axle and Gear
Part number 2-2149-456
Axle location Rear
Axle type Dana 35 / M190
Axle manufacturer Dana
Gear ratio 4.56
Fitment type Universal fit (per G2)

Vehicle fitment

The set applies to rear Dana 35 and M190 axles, so the axle housing under your vehicle decides whether it applies.

Confirm your vehicle’s year, model and trim before ordering, and check that the rear axle is a Dana 35 or an M190.

Installation notes

The ring and pinion are supplied as a matched pair, so do not mix them with gears from another set.

What’s included

A ring and pinion set. Shims, bearings and other hardware are not included.

Questions & Answers

Does the G2 2-2149-456 set fit a Dana 35?

Yes, it is made for the rear Dana 35 axle as well as the M190 axle. The gear ratio is 4.56. Check your axle housing before fitting, since the housing decides whether the set matches your vehicle.

What is the gear ratio?

It is 4.56. A higher ratio number means the pinion turns more times per turn of the ring gear, which gives more torque at the wheels and a higher engine speed at a given road speed.

Is this set made for one specific vehicle?

No vehicles or model years are listed. The set is labeled for the Dana 35 and M190 rear axles only.

Can the ring and pinion be swapped without changing the axle?

Often the gear set can be replaced in the same housing, but that depends on the axle type and the rest of the differential. Confirm the axle is a Dana 35 or M190 before ordering, and have the setup checked when the gears are fitted.

How can I tell if the gears are worn?

Worn gears often make a whine or howl that changes with road speed or load. Chipped teeth or uneven wear patterns may show when the cover is removed, and a clicking or grinding noise at low speed can also point to gear damage. Inspect the axle if these signs show up.
