Overview

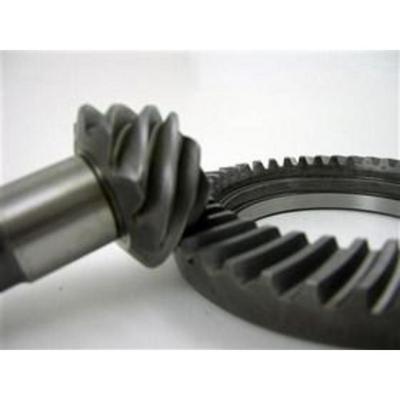

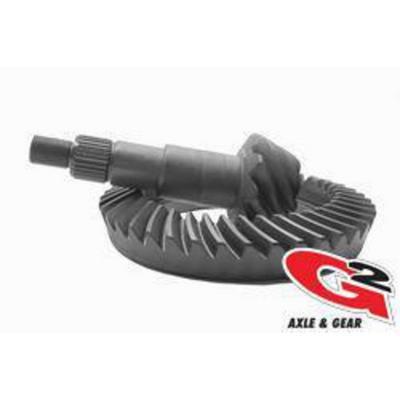

The G2 Axle and Gear 1-2026-373 is a front ring and pinion gear set with a 3.73 ratio for a Chrysler 9.25 inch front axle. The gears sit inside the differential and set the final drive ratio for the front axle.
The O.E.M. series gears are designed to run cooler and quieter, and they are made in cooperation with original equipment manufacturers. The set is matched by axle type.
Key features
- Front axle position
- 3.73 gear ratio, the O.E.M. ratio
- Chrysler 9.25 inch axle type
- Designed to run cooler and quieter, per G2 Axle and Gear
Running a 9.25 front gear set
A front axle gear set carries drive into the steering axle and must be set for the bearing preload and pinion depth used in the housing. On a 9.25 inch front, the carrier and pinion bearings are sized for the load, so keep the housing clean and use fresh gear oil after setup. Tooth contact and backlash should be checked before the front axle returns to use.
Front gears see load during four-wheel drive, steering and braking, so look for wear after hard use. A slow whine, clunk or leak at the front seal often means the setup needs attention. Keep the front driveline inspected along with the joints and the front seal, since these work together to keep the gears properly lubricated.
- Check tooth contact before returning to service
- Refill with fresh gear oil after setup
- Watch for whine or leaks at the front seal
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 1-2026-373 |
| Axle location | Front |
| Axle type | Chrysler 9.25 inch |
| Axle manufacturer | Chrysler |
| Gear ratio | 3.73 |
| Gear line | O.E.M. series |
| Fitment | Universal fit, by axle type |
Vehicle fitment
This gear set is matched to the Chrysler 9.25 inch front axle at a 3.73 ratio. No vehicle model or year is named, so check your axle housing and ratio before installing.
No other axles or vehicles are named for this set. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A qualified installer should set the pinion depth and backlash on this 9.25 inch front set, then run the gears through their break-in period before heavy use.
What’s included
The ring and pinion gear set is the item described.
Not included: Plan for bearings, shims and seals separately, and check what your rebuild needs before starting.
