G2 Dana 60 4.56 Ratio Ring and Pinion – 2-2034-456

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion for the Dana 60 axle
  • Gear ratio 4.56, part number 2-2034-456
  • Front and rear axle locations
  • No vehicle list; verify the axle first

Description

Overview

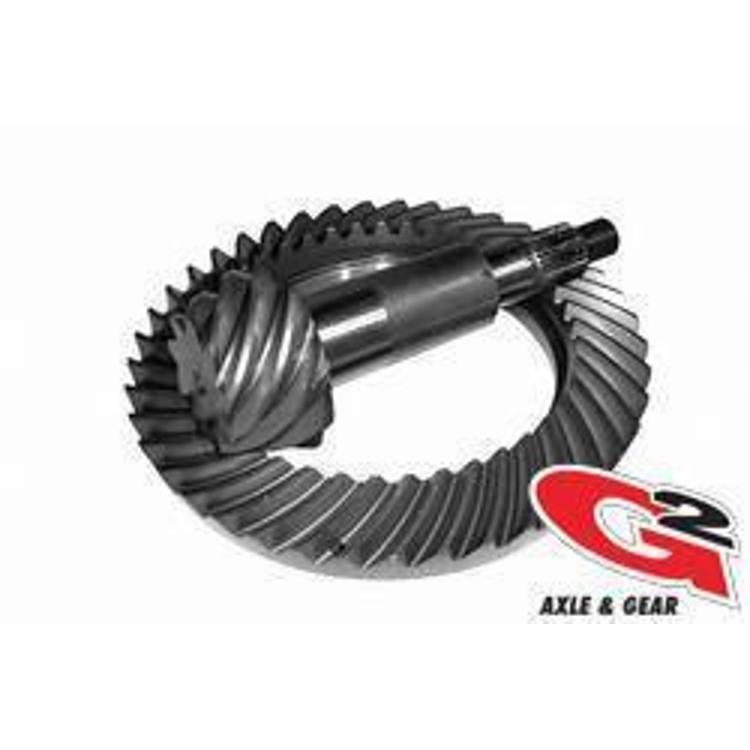

The G2 Axle and Gear 2-2034-456 is a 4.56 ratio ring and pinion for the Dana 60 axle. The pinion makes 4.56 turns for each full turn of the ring gear, a numerically high ratio that multiplies torque at the wheels, which is the reason G2 pairs this kind of gear with oversized tires.

The set is made for Dana 60 axles in front and rear positions and is built for oversized tires and high-performance engines. Verify the housing, its location and the carrier on your vehicle before purchase.

Key features

  • 4.56 gear ratio for the Dana 60 axle
  • Fits front and rear axle locations
  • Ring gear and pinion supplied as a matched set
  • Designed for oversized tires and high-performance engines.
  • Built with current materials and manufacturing methods.

Dana 60 setup and wear

The Dana 60 is a heavy axle, and a 4.56 set changes how it works under load. Torque at the wheels increases, which helps with large tires and steep grades, while engine speed at cruise rises. Plan the gearing around how the vehicle is used most of the time, not only for occasional heavy pulls.

Measure the ring gear and check the housing before buying, because front and rear Dana 60 setups differ. Carrier preload and pinion depth need to be checked after installation, and the new teeth need a gradual break-in run before towing heavy loads. Chatter, whine or heat that appears after the break-in period is worth looking at promptly, since early setup problems tend to grow.

Replace worn carrier bearings, pinion seals and axle seals while the gears are out. Fresh gear oil after the break-in run helps the new set wear evenly, and the fluid should be checked on a regular schedule, especially after towing or off-road use.

Specifications

Brand G2 Axle and Gear
Part number 2-2034-456
UPC 631410094169
Axle type Dana 60
Axle location Front or rear
Gear ratio 4.56
Axle manufacturer Dana

Vehicle fitment

Confirm the housing and location on your vehicle before ordering. This 4.56 set is made for the Dana 60 in front or rear positions.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 4.56 set has to be set up with measured tooth contact and carrier preload, and a gear shop is the practical route. Break the gears in before towing heavy loads.

What’s included

One 4.56 ring and pinion set for the Dana 60 axle, part number 2-2034-456.

Not included: Carrier bearings, shims and hardware are not included with the 4.56 Dana 60 set.

SKU: G/22-2034-456 Category:

Specification

Shipping weight 25.00 lbs
Package dimensions 12.00 × 11.00 × 5.50 in
brands

Questions & Answers

Is the G2 2-2034-456 for Dana 60 front or rear axles?

It is made for both front and rear Dana 60 positions. Confirm the location on your axle before ordering, since the ring gear must match the housing.

What torque effect does 4.56 have?

The pinion turns 4.56 times per ring gear turn, which multiplies torque at the wheels. The gain comes with higher engine speed at highway cruising.

Does the set come with carrier parts?

No carrier parts are described. Bearings, shims and hardware should be matched to your Dana 60 carrier before installation, so budget for them separately.

How do I tell if the 4.56 gears are worn?

Watch for whine that changes with speed or load, a clunk when switching between drive and reverse, and metal particles in the gear oil. Heat at the housing and vibration under throttle can also show wear, and the gears should be inspected when those signs appear.
