Overview

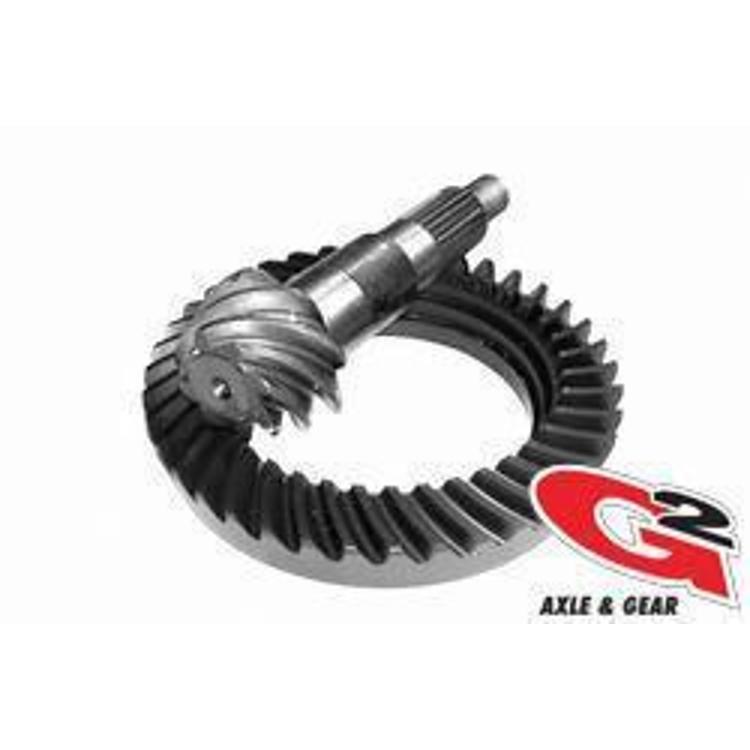

The G2 Axle and Gear 2-2032-456R is a 4.56 ratio front reverse ring and pinion for the Dana 30 front axle. It fits the Jeep XJ Cherokee from 1984 to 1999 and the Jeep YJ Wrangler from 1987 to 1995, and it is made for carriers of 3.73 and up.
G2 says these gears are made for oversized tires and high performance engines. They use computer heat treated 8620 steel with double shot peened and double lapped surfaces, built to O.E. specifications.
Key features
- Dana 30 reverse front ring and pinion
- 4.56 ratio for 3.73 and up carriers
- Fits XJ Cherokee and YJ Wrangler front axles
- Computer heat treated 8620 steel
- Double shot peened surfaces
- Double lapped gear set
- Manufactured to O.E. specifications
- 10 year warranty from G2
Reverse layout and front axle work
The Dana 30 is a common front axle on older Jeep models, and its reverse layout moves the pinion to the other side of the carrier. That changes the driveshaft angle and the axle shaft orientation the build needs, so a reverse ring and pinion should be paired with parts sized for the reverse housing rather than a standard gear set.
Older front axles often show wear in the pinion bearings, carrier bearings and axle seals, and these parts are typically checked whenever the gears are replaced. Steering linkage and the front driveshaft also sit close to the axle, so a shop may inspect them while the axle is open.
- Inspect the axle seals for leaks before refilling
- Replace worn carrier bearings with the new gears
- Check the condition of the front driveshaft yoke
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 2-2032-456R |
| UPC | 631410093919 |
| Gear ratio | 4.56 |
| Axle location | Front |
| Axle type | Dana 30 reverse |
| Popular axle manufacturer | Dana |
| Carrier requirement | 3.73 and up |
| Material | Computer heat treated 8620 steel |
Vehicle fitment
It fits the front Dana 30 reverse axle in the Jeep XJ Cherokee from 1984 to 1999 and the Jeep YJ Wrangler from 1987 to 1995.
For a Jeep TJ Wrangler, Grand Cherokee or later Wrangler, confirm your vehicle’s year, model and trim before ordering.
Installation notes
Front reverse gears need pinion depth, backlash and bearing preload set by a driveline shop. Run the 4.56 gears through a break-in period once the front axle is assembled.
What’s included
A matched front reverse ring and pinion for the Dana 30 axle.
