Overview

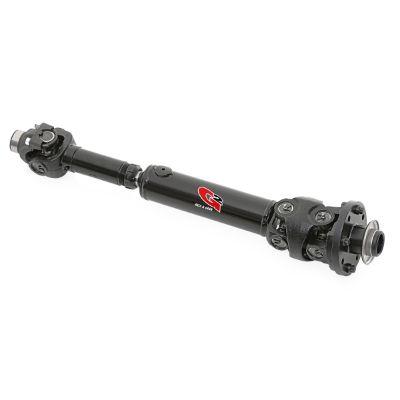

The G2 Axle and Gear 1350 rear driveshaft, part G/292-2149-1, is built for the 2018–2020 Jeep Wrangler JL Unlimited with an automatic transmission. It is a heavy-duty rear shaft in the company’s 1-ton upgrade line for the JL, and it is meant for owners who want a stronger rear driveline than stock.

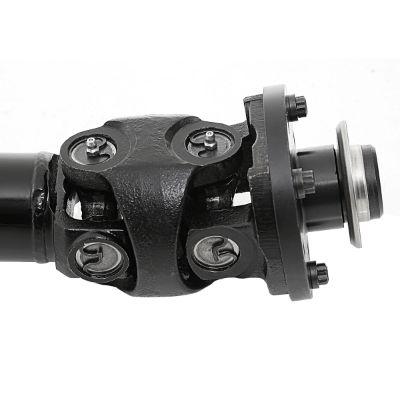

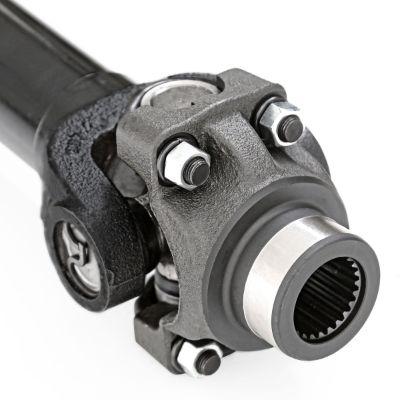

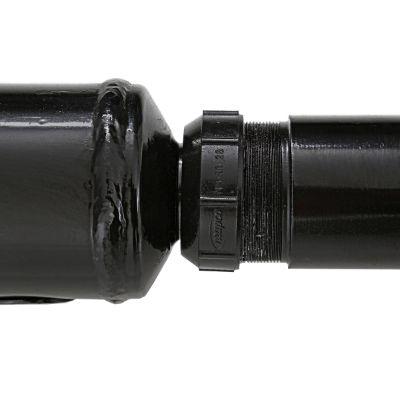

Heavy-duty D.O.M. tubing forms the shaft body, and 1350 series solid-body U-joints connect it at each end. The assembly is dynamically balanced and runs at an extended length with a CV design.
Key features
- Heavy-duty D.O.M. tubing
- 1350 series solid-body U-joints
- Dynamically balanced assembly
- Extended length for the Unlimited wheelbase
- No slip yoke eliminator needed
Driveline angles on a lift
A driveshaft connects the transmission to the rear axle and has to work through suspension travel. On a lifted vehicle the joint angles change, which can add vibration and wear the U-joints faster. Checking the angles after a lift or spring change is a good habit, and a driveline shop can measure them with the vehicle at ride height.
Rear driveshafts on the JL also depend on transmission type and body length. The extended length suits the Unlimited wheelbase. When inspecting, look for play in the joints, grease leaks, rust on the tubing and vibration at highway speed. Replacing a worn U-joint early can prevent damage to the axle and transfer case. Stainless components and clean joints also make inspection easier.
- Check joint play by hand
- Look for grease leaks at the U-joints
- Note vibration at highway speed
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | G/292-2149-1 |
| Position | Rear |
| Transmission type | Automatic |
| Length | Extended |
| Joint type | CV |
| Tubing | Heavy-duty D.O.M. |
| U-joints | 1350 series, solid body |
| Slip yoke eliminator | Not required |
| Fitment type | Direct fit |
Vehicle fitment
The G2 Axle and Gear 1350 rear driveshaft fits the 2018–2020 Jeep Wrangler JL Unlimited four-door models with an automatic transmission.
It fits four-door JL Unlimited models only. Two-door owners should confirm body style and model year before buying.
Installation notes
Because the rear shaft needs no slip yoke eliminator, the transmission side connects without an adapter. A rear driveline on a lifted JL should have its angles checked after installation.
What’s included
One rear driveshaft assembly, with no additional parts included.
