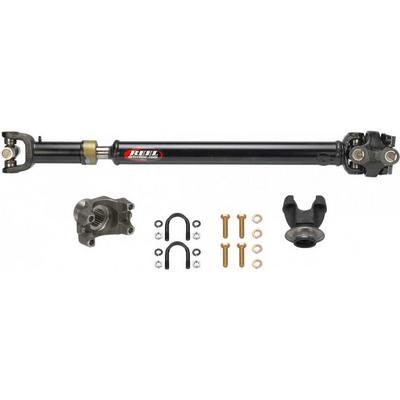

J.E. Reel 1350 Rear Drive Shaft for M220/Dana 44 (8 Speed Automatic Transmission) – 3518JLR-4R

J.E. Reel

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear driveshaft for 2019 Jeep Wrangler JL Unlimited, 8-speed automatic
  • Built for the M220 and Dana 44 driveline
  • 1350 CV joint, maximum angle under 32 degrees
  • Direct fit, rear position
  • Part number JER3518JLR-4R

Description

Overview

The J.E. Reel 1350 Rear Drive Shaft for M220/Dana 44, part JER3518JLR-4R, is a rear driveshaft for the 2019 Jeep Wrangler JL Unlimited with an 8-speed automatic transmission. It is matched to the M220 transmission and Dana 44 rear axle combination.

Joint limits are under 32 degrees on the 1350 CV and under 26 degrees on the 1310. On the 2018 JL the transfer case sits at 9.25 degrees, which changes the slope of the rear output toward the rear axle.

Key features

  • 1350 series rear shaft for automatic transmission
  • Direct fit for the listed JL Unlimited models
  • Maximum joint angles given for the 1310 and 1350 CV joints
  • Designed for the M220 and Dana 44 driveline

Joint angle and axle articulation

The rear driveshaft carries power from the transfer case to the rear axle through every bump and articulation. Joint angle is the key limit, because a CV joint working beyond its design angle loses smoothness and wears faster. The rear output slope changes between model years, so the angle at each end should be checked with the vehicle at its real ride height.

Pairing a shaft with an 8-speed automatic and a Dana 44 axle means the parts were chosen to work together, but suspension changes can alter the geometry. Shoppers often inspect the transfer case yoke and the axle pinion flange at the same time, since worn flanges can loosen the connection. A rear axle upgrade is worth checking against the driveline before fitting.

  • Measure joint angles at ride height before driving off road
  • Check the CV boots for tears after rough trails

Specifications

Brand J.E. Reel
Part number JER3518JLR-4R
Position Rear
Transmission type Automatic, 8-speed
Maximum angle, 1350 CV Less than 32 degrees
Maximum angle, 1310 CV Less than 26 degrees
Fitment type Direct fit

Vehicle fitment

This rear shaft is a direct fit for the 2019 Jeep Wrangler (JL) Unlimited four-door body.

Two-door JL models are not included in this entry, and the 2018 JL requires its own angle check. Confirm your vehicle’s year, model and trim before choosing this part.

Installation notes

Measure the driveline before fitting it to a lifted JL, since joint angle is the main limit on a CV shaft in use. The same check suits every driveline where it is possible.

What’s included

One rear driveshaft assembly.

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2019Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the JER3518JLR-4R fit a 2019 Jeep Wrangler JL Unlimited with an 8-speed automatic?

Yes. This shaft is built for the 2019 Jeep Wrangler (JL) Unlimited four-door models with the 8-speed automatic and the M220 and Dana 44 driveline.

What is the rear driveshaft's maximum joint angle?

The 1350 CV joint is rated for less than 32 degrees, and the 1310 CV joint for less than 26 degrees.

Does this shaft suit a 2018 JL?

The 2018 JL transfer case sits at 9.25 degrees, so the rear output slopes toward the axle differently than on the 2019. Measure the angle before choosing this shaft for that year.

Should the rear shaft be checked when the suspension changes?

Yes. Any change in lift, axle position or tire size alters the angle the shaft works through, so measure the angle again after the change. Checking early prevents a worn joint from failing away from home.
