G2 Axle and Gear 1350 JL Sport M/T Front Drive Shaft – 92-2150-1M

G2 Axle and Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Fits the 2018–2020 Jeep Wrangler JL, manual transmission
  • Heavy-duty front CV driveshaft with D.O.M. tubing
  • 1350 series solid-body U-joints for durability
  • Dynamically balanced to reduce vibration
  • No slip yoke eliminator required

Description

Overview

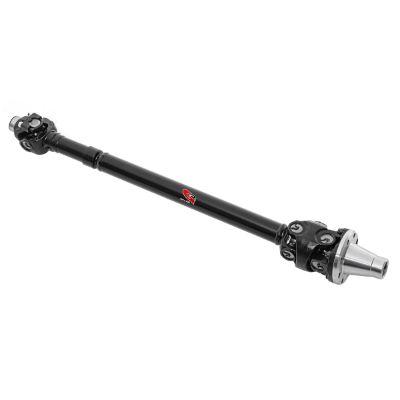

The G2 Axle and Gear 92-2150-1M is a heavy-duty front driveshaft for the 2018–2020 Jeep Wrangler JL with a manual transmission. It is part number G/292-2150-1M and is a 1-ton upgrade shaft for JL owners who want a stronger front driveline than the factory unit.

The tube is heavy-duty D.O.M. steel, the U-joints are 1350 series with solid bodies, and the assembly is dynamically balanced to limit vibration at speed. The shaft is a CV type with an extended length and does not need a slip yoke eliminator, so it can be fitted without an extra adapter in the transfer case.

Key features

  • Heavy-duty D.O.M. tubing for strength
  • Solid-body 1350 series U-joints for durability
  • Dynamically balanced to reduce vibration
  • CV design with an extended length
  • No slip yoke eliminator required

Choosing a front driveshaft upgrade

A front driveshaft carries torque from the transfer case to the front axle, and on a Wrangler JL it is loaded hardest during low-range crawling and when the front tires grip hard off road. Shaft strength matters most where the tube meets the yokes and where the U-joints take angle, so the condition of the joints and the yoke bolts is a good place to start when you inspect a driveline.

Driveline angles shift when a lift is installed, so a shaft fitted to a lifted JL should be measured for angle after installation. Steep angles wear the joints quickly and can cause vibration at speed. Pinion and transfer case angles matter as much as the shaft itself, and the front differential mounts and pinion flange bolts are often checked during the same job.

  • Inspect U-joints for play before a long trip
  • Re-torque yoke and flange bolts after the first few drives
  • Check pinion and transfer case angles on a lifted JL

Specifications

Brand G2 Axle and Gear
Part number G/292-2150-1M
Position Front
Transmission type Manual
Length Extended
Joint type CV
Tubing Heavy-duty D.O.M.
U-joints 1350 series, solid body
Slip yoke eliminator Not required
Fitment type Direct fit

Vehicle fitment

This front shaft fits the 2018–2020 Jeep Wrangler (JL), in both two-door and four-door body styles.

It does not fit the earlier JK Wrangler or the JT Gladiator, and the rear 1350 shaft from the same line is a separate part. Verify your vehicle’s year, model and trim before choosing this part.

Installation notes

With no slip yoke eliminator needed, the shaft is a direct replacement for the front driveline. Driveline angles change with lift height, so check them after installing a lift on a JL.

What’s included

One front driveshaft assembly is included.

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2018–2020Sport (2-Door), Sport S (2-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the G/292-2150-1M fit a 2018 to 2020 Jeep Wrangler JL with a manual transmission?

Yes. It fits the 2018–2020 Jeep Wrangler JL with a manual transmission, in both two-door and four-door body styles. It does not fit the JK or JT models, so confirm your year, model and trim before ordering.

Does this front driveshaft need a slip yoke eliminator?

No. This shaft is a CV design with an extended length and needs no slip yoke eliminator, so it installs without an extra adapter in the transfer case.

What does the 1350 mean on this driveshaft?

The 1350 refers to the U-joint series. This shaft uses 1350 series solid-body U-joints, which are part of its heavy-duty build with D.O.M. tubing.

How do I know if the front driveshaft needs replacing?

Look for clunking when shifting or accelerating, vibration that rises with road speed, grease leaking from a U-joint cap, or play in the joint when you rotate the shaft by hand. Any of these means the joints or tube should be inspected and the driveline repaired before continued use.
