Overview

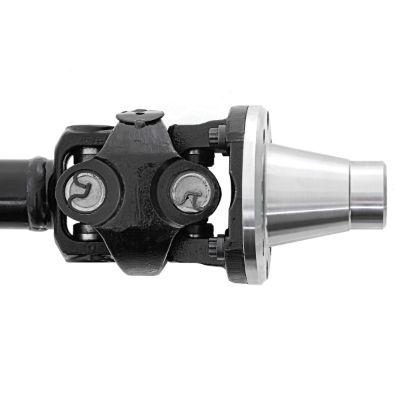

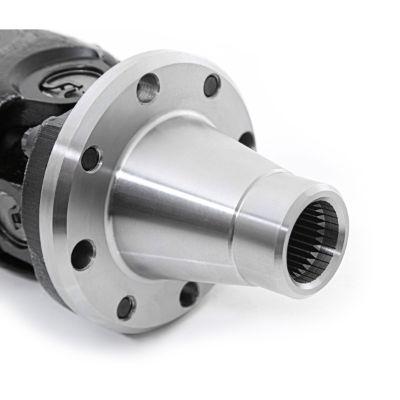

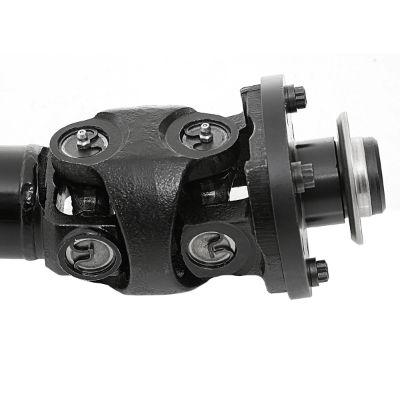

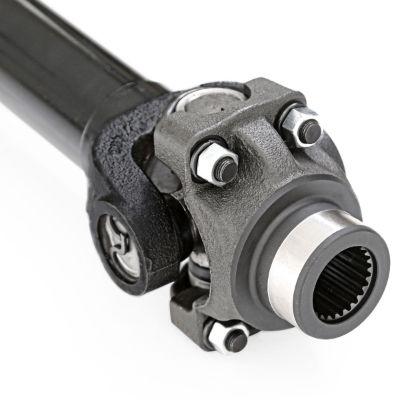

The 92-2151-1M is a manual transmission front driveshaft for the 2018–2020 Jeep Wrangler (JL) Rubicon. It fits 2-door and Unlimited 4-door models, and it is the manual companion to the automatic 92-2151-1 front shaft.
The shaft is built from heavy duty D.O.M. tubing with solid body 1350 series u-joints in a CV design. It is dynamically balanced to reduce vibration. No slip yoke eliminator is needed to fit it.
The shaft is an extended length part, so check the length against the transfer case and the front axle before installation.
Key features
- Front position for the Wrangler JL Rubicon
- Manual transmission application
- Heavy duty D.O.M. tubing
- Solid body 1350 series u-joints
- CV joint design
- Dynamically balanced
- Extended length
Manual driveline checks
On a manual Wrangler, the front driveshaft carries torque from the transfer case to the front axle while the suspension moves through its travel. The CV design allows steady rotation through changing angles, but the joint angles at both ends must still be set correctly. A shaft that is too long or too short shifts those angles, which can cause vibration and early wear. Lift height and axle position both affect the result, so measure before installing.
Driveline inspection is a good habit on any front shaft. Check the joints for play, look for grease seepage, and listen for clicks or clunks when turning or shifting. Balance matters too, so any vibration that increases with speed deserves a closer look. Replacing worn joints at the same time as the shaft keeps the driveline working as a matched set.
- Check joint angles after installation
- Look for play in the joints by hand
- Recheck the fit after any suspension change
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 92-2151-1M |
| Position | Front |
| Transmission type | Manual |
| Length | Extended |
| Joint type | CV |
| Tubing | Heavy duty D.O.M. |
| U-joints | Solid body 1350 series |
| Slip yoke eliminator | Not required |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2018–2020 Jeep Wrangler (JL) Rubicon in 2-door and Unlimited 4-door versions.
Confirm fit for your vehicle’s year, model and trim before ordering, especially for 2021–2022 Wrangler JL, Gladiator and Sport models.
Installation notes
No slip yoke eliminator is needed for this front shaft. Check the extended length against the transfer case output and front axle pinion before installing, because a length mismatch would affect the joint angles.
What’s included
The front driveshaft assembly is included, with no separate hardware.
