Overview

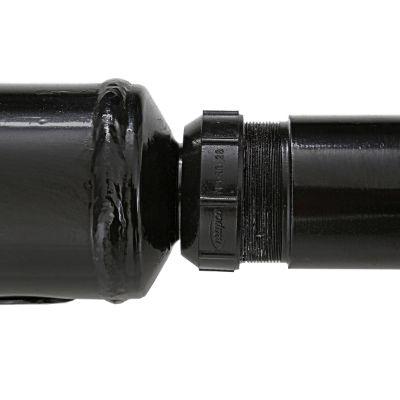

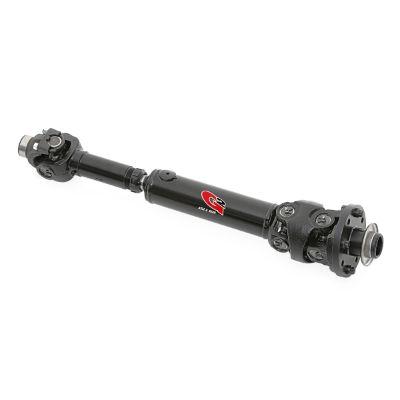

The G2 Axle and Gear 92-2152-2M is an extended length CV rear driveshaft for the 2018–2020 Jeep Wrangler (JL) 2-door Rubicon with a manual transmission. It is a direct fit for that vehicle.
This rear shaft is one of the 1350 JL driveshafts, a heavy duty 1 ton upgrade for the JL front and rear driveline. It is built from heavy duty D.O.M. tubing with solid body 1350 series u-joints and is dynamically balanced to eliminate vibration.
No slip yoke eliminator is needed for this shaft. In the rear position, it connects the transmission output to the rear axle pinion.
Key features
- Rear position for the Wrangler JL
- Manual transmission application
- Heavy duty D.O.M. tubing

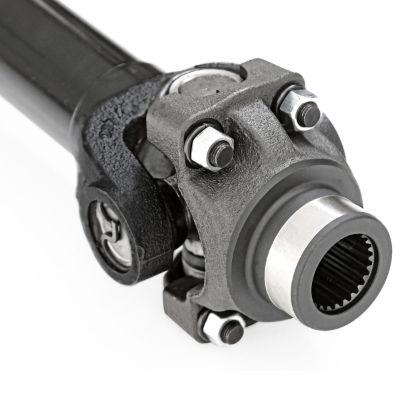

- Solid body 1350 series u-joints
- CV joint design
- Dynamically balanced
- Extended length
Rear driveline care
The rear shaft carries power from the transmission output to the rear axle pinion, so its condition affects every drive. On a manual Rubicon the clutch and transmission load the shaft in sharp bursts, which makes the joints the first place to show wear. Keep the mounting flanges clean and check that the pinion yoke bolts are secure.
When choosing a replacement, match the transmission type and body style first, then confirm the rear position. Parts often replaced alongside a driveshaft include the pinion yoke seal and, where fitted, the center support bearing. Inspect them while the driveline is already apart.
- Inspect pinion yoke seals when the shaft is removed

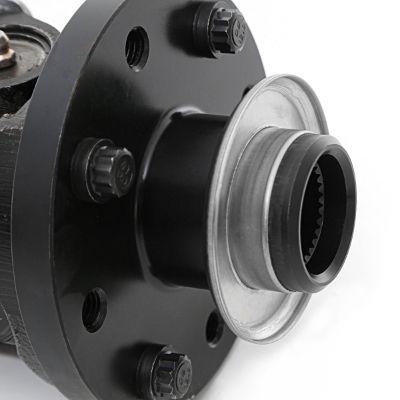

- Clean flange faces before bolting up
- Recheck fasteners after the first drive
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 92-2152-2M |
| Position | Rear |
| Transmission type | Manual |
| Length | Extended |
| Joint type | CV |
| Tubing | Heavy duty D.O.M. |
| U-joints | Solid body 1350 series |
| Slip yoke eliminator | Not required |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2018–2020 Jeep Wrangler (JL) 2-door Rubicon.
Fitment covers the 2-door Rubicon with a manual transmission. Make sure the year, model and trim match your vehicle before ordering.
Installation notes
No slip yoke eliminator is required for this rear shaft. Check the extended length against the transmission output and rear pinion before bolting it in.
What’s included
The rear driveshaft assembly. Compare the contents with your installation before starting.
