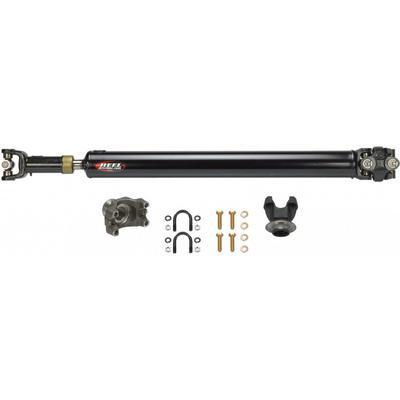

J.E. Reel 1350 OE Replacement Rear Drive Shaft (Automatic Transmission) – 3518JL-4R

J.E. Reel

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rear driveshaft for 2019 Jeep Wrangler JL two-door, automatic transmission
  • Stock to 2 1/2-inch lift, tires up to 33 inches for mild use
  • 1350 platform, original-equipment design
  • Extended length, direct fit
  • Part number JER3518JL-4R

Description

Overview

The J.E. Reel 1350 OE Replacement Rear Drive Shaft, part JER3518JL-4R, is a rear driveshaft for the 2019 Jeep Wrangler JL two-door with an automatic transmission. It is an original-equipment replacement built on the 1350 platform and is recommended for stock height up to a 2 1/2-inch lift, with tires up to 33 inches for mild use.

It is built to work with lifts up to 2 1/2 inches from most manufacturers, and measuring the driveline is good practice. On the 2018 JL the transfer case is installed at 9.25 degrees, which slopes the rear output down toward the axle.

Key features

  • 1350 platform, original-equipment replacement
  • Recommended for stock height up to a 2 1/2-inch lift
  • Rated for tires up to 33 inches for mild use
  • Extended length, direct fit

Rear driveline and tire changes

The rear driveshaft transmits power from the transfer case to the rear axle, and its length has to match the distance between them as the suspension cycles. Stock height keeps the joint angles close to what the driveline was built for. Once a lift raises the body, the angles grow and the shaft needs to be measured to confirm the length and travel are still within range.

Tire size affects the driveline more than many owners expect. Larger tires add rotating mass and load to the shaft and the axle, so changes in size should be considered alongside the lift height. Shoppers often replace a rear shaft together with the pinion seal or U-joint when a driveline is opened for service.

  • Check the boot and joint for grease leaks
  • Look for vibration that rises with speed

Specifications

Brand J.E. Reel
Part number JER3518JL-4R
Position Rear
Transmission type Automatic
Length Extended
Recommended lift Stock to 2 1/2-inch
Tire size, mild use Up to 33 inches
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 2019 Jeep Wrangler (JL) two-door models.

Four-door JL models are not in this fitment entry, and the 2018 JL needs its own angle check. Confirm your vehicle’s year, model and trim before choosing this part.

Installation notes

Lifts above the stated range or long-arm lifts need a driveline length measurement before installation. Measuring all drivelines where possible is good practice.

What’s included

One rear driveshaft assembly.

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2019Rubicon (2-Door), Sport (2-Door), Sport S (2-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Is this rear shaft rated for a 2 1/2-inch lift?

It is recommended for stock height up to a 2 1/2-inch lift from most lift manufacturers. Taller lifts or long-arm kits should be measured for driveline length first.

What tire size is this rear driveshaft designed for?

It is rated for tires up to 33 inches for mild use. Larger tires add load to the driveline, so confirm the setup with driveline measurements before making a change in tire size.

Will it fit a four-door JL?

It is a fit for the 2019 Jeep Wrangler JL two-door. Four-door models are not covered, so confirm your body style before ordering.

How can I tell the rear shaft is wearing out?

Watch for vibration that increases with speed, a clunk when shifting between drive and reverse, or grease on the inside of a wheel. Any of these signs means the joints and slip yoke should be inspected before the shaft fails on the trail.
