FUEL Off-Road Maverick, 20x14 Wheel with 6 on 135 and 6 on 5.5 Bolt Pattern – Chrome – D53620409845

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x14 6x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • FUEL Off-Road Maverick 20×14 aluminum spoke wheel in chrome
  • Two bolt patterns: 6 on 5.5 and 6 on 135, 106 center bore
  • Offset -76 and backspacing 4.5
  • Part number MHTD53620409845; no truck or SUV named

Description

Overview

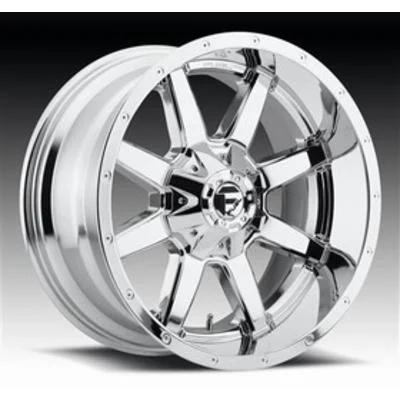

The FUEL Off-Road Maverick 20×14 in chrome is a 20-inch aluminum spoke wheel with a 14-inch width, part number MHTD53620409845. It has two bolt patterns, 6 on 5.5 and 6 on 135, and a 106 center bore.

The offset of -76 and backspacing of 4.5 place the wheel well outboard of a standard hub position, so clearance should be checked carefully before mounting.

Key features

  • 14-inch wide chrome spoke wheel
  • Two bolt patterns: 6 on 5.5 and 6 on 135
  • 106 center bore
  • Offset -76 with backspacing 4.5
  • Aluminum construction

Clearance on wide, deep-offset wheels

A 14-inch wide wheel with a -76 offset sits far outboard of a standard hub, so the tire can reach the fender, control arms and steering components sooner than with a typical wheel. Rubbing often shows up only at full lock or on the compression stroke, so check both. Many owners end up trimming fender liners or adding fender flares to make room.

Choosing the right setup starts with the hub. Compare both bolt patterns, the 106 center bore and the backspacing with your current wheel before buying. Wheel spacers and different offsets change the load on wheel bearings, so keep the original hub design in mind. Tire sidewall height and overall diameter also affect how close the tire comes to the body.

Expect a change in steering feel after mounting. A wider stance usually adds some scrub radius, so test the vehicle slowly in an empty area before returning to regular speeds.

Specifications

Brand FUEL Off-Road
Part number MHTD53620409845
Model Maverick
Wheel diameter 20 inches
Wheel width 14 inches
Bolt pattern 6 on 5.5
Second bolt pattern 6 on 135
Center bore 106
Offset -76
Backspacing 4.5
Style Spoke
Finish Chrome
Construction Aluminum

Vehicle fitment

No truck or SUV is named for this wheel, and FUEL Off-Road labels it universal fit. A 14-inch width with a -76 offset makes fit depend heavily on the vehicle, so measurements matter more than the label.

Compare both bolt patterns, the 106 center bore, offset and backspacing with your vehicle’s specifications, and check clearance for the outboard position. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This wheel is wide and strongly offset, so check for rubbing at full lock and through suspension travel before driving.

What’s included

One wheel is included. Lug nuts, center caps and tires should be sourced separately.

Not included: Tires need to be obtained separately, since none are described.

SKU: MHTD53620409845 Categories: ,

Questions & Answers

Is this 20x14 chrome Maverick universal fit?

It carries a universal fit label but names no truck or SUV. Given the 14-inch width and -76 offset, confirm the 6 on 5.5 and 6 on 135 patterns, the 106 center bore and clearance on your own vehicle first.

What are the offset and backspacing of this wheel?

The offset is -76 and the backspacing is 4.5. With a 14-inch width, the wheel sits well outboard of a standard hub position, so check clearance before mounting.

Which bolt patterns does part MHTD53620409845 use?

It lists two patterns: 6 on 5.5 and 6 on 135, both paired with a 106 center bore. The hub must match one of the patterns and the bore before the wheel can be fitted.

Do wide wheels change how a vehicle handles?

Yes. A wider wheel with a deep offset shifts the load on wheel bearings and can change steering response and tire wear. Test the feel slowly after mounting, and recheck clearance once the suspension has settled.
