Overview

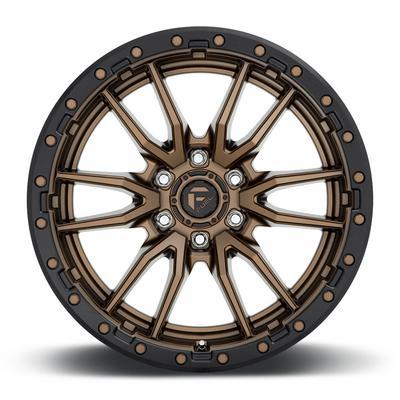

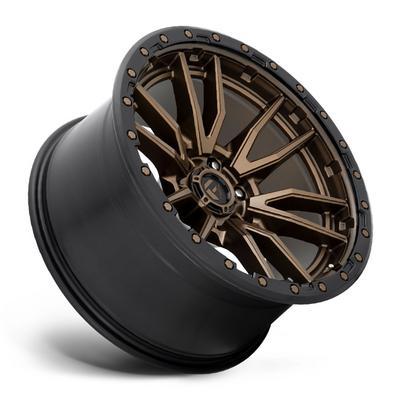

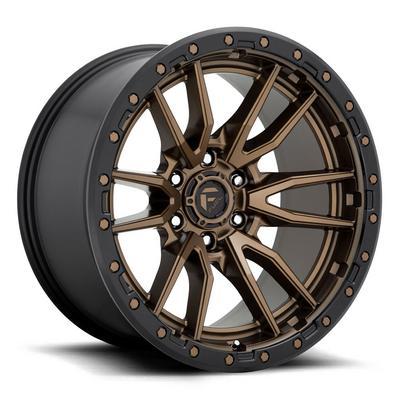

The FUEL Off-Road Rebel 6 D681 is an 18-inch by 9-inch aluminum split spoke wheel with a 6 on 4.5 bolt pattern and part number MHTD68118908757. Its bronze and black finish is the finish offered. Match the bolt pattern, offset and backspacing to your hub before any wheel is mounted.
A positive offset of 20 with a 5.8 backspacing moves the mounting face inward compared with a negative offset, which changes clearance at the fender and brakes. Measure your current wheels before choosing this size. Confirm the hub bore before mounting.
Key features
- Split spoke style
- 18-inch diameter and 9-inch width
- 6 on 4.5 bolt pattern
- Positive offset of 20
- Backspacing of 5.8
- Bronze and black finish
- Aluminum construction
Dry-fit checks before tires
Dry-fitting a wheel means mounting it on the hub without tires, so you can check the bolt pattern, seating and clearance first. This step matters most when the offset is positive, because a positive offset moves the mounting face inward toward the brake components. Look for contact with the caliper, the suspension arm and the brake dust shield at full steering lock.
Once the fit is confirmed, add the tire and recheck clearance, since a wider tire can change the gap. Torque the lug nuts in a star pattern and retighten them after the first drives. Keep the bolt pattern and hub surface clean of rust and debris so the wheel seats flat against the hub. Inspect the inner barrel and spokes periodically for cracks, especially after hard use on rough terrain.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD68118908757 |
| Model | Rebel 6 D681 |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 4.5 |
| Offset | 20 |
| Backspacing | 5.8 |
| Style | Split spoke |
| Finish | Bronze/Black |
| Construction | Aluminum |
Vehicle fitment
Model year, make and trim are not tied to this wheel. Its fit depends on bolt pattern and offset, so compare those measurements with your vehicle’s hub before ordering.
Confirm the 6 on 4.5 pattern against your hub before checking any other measurement. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Measure your hub’s bolt pattern and bore, then dry-fit the wheel before tires are added. The 20 offset and 5.8 backspacing affect inner clearance, so check brake caliper and suspension gap. Tighten lug nuts to the torque for your vehicle.
What’s included
The wheel is the single item covered here, in the 18×9 size with the measurements shown above.
Not included: Before installing, confirm that everything that arrives matches your setup, and source tires and lug nuts separately if they are needed.
