Overview

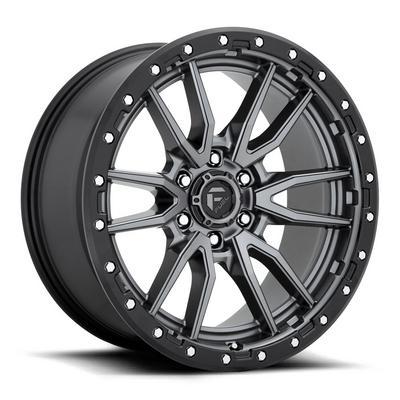

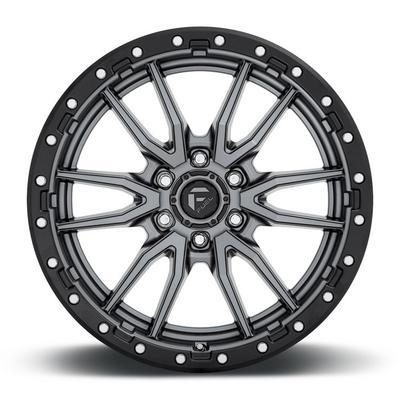

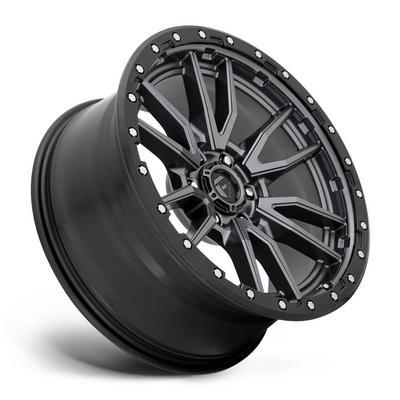

The FUEL Off-Road Rebel 6 D680 is an 18 x 9 inch aluminum split spoke wheel in an anthracite and black finish, part number MHTD68018909457, for trucks and SUVs with a 6 on 120 bolt pattern. Its offset of 20 and backspacing of 5.8 are the figures to check first against your hub and brake clearance.
The 9 inch width is the starting point for tire selection, and the finish is Anthracite / Black. Confirm the offset and backspacing against your vehicle before mounting.
Key features
- Split spoke styling with anthracite and black finish
- Aluminum construction
- 18 inch diameter and 9 inch width
- 6 on 120 bolt pattern
- Offset of 20 and backspacing of 5.8
Choosing a wheel offset
Offset and backspacing work together to set where a wheel sits in the wheel well. A positive offset moves the mounting face inward toward the brakes, while a lower or negative figure pushes it outward toward the fender. Backspacing measures from the mounting face to the inner lip, so it shows how much room remains behind the wheel for the brake caliper, control arm and axle components. Two wheels of the same diameter and width can fit very differently if these figures differ.
When comparing replacements, measure the hub bolt pattern and note the current wheel’s offset and backspacing before buying. Wheel spacers shift the wheel outward, which changes clearance and adds load to the studs. After hard trail use, inspect for bent lips, cracked spokes and damaged bead seats, and recheck lug nut torque after the first few drives. Tire width matters too, since a wider tire on the same wheel can rub the fender at full suspension travel.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD68018909457 |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 6 on 120 |
| Offset | 20 |
| Backspacing | 5.8 |
| Style | Split spoke |
| Finish | Anthracite/Black |
| Construction | Aluminum |
Vehicle fitment
No specific vehicle is confirmed for this wheel. Confirm fit for your vehicle’s year, model and trim before ordering, and check the 6 on 120 bolt pattern, offset 20 and backspacing 5.8 against your hub and fender clearance.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
An offset of 20 and a backspacing of 5.8 determine how far the wheel sits inside or outside the fender line, so test fit with the tires you intend to use before driving.
What’s included
The wheel is the only item described, and neither tires nor center caps are mentioned.
