Overview
The Fabtech K1051 is a 6-inch RTS lift for the 2011–2018 Chevrolet Silverado 3500 HD and the 2011–2018 GMC Sierra 3500 HD. Patent pending torsion bar brackets keep the torsion bars raised in their stock location, and the front uses crossmembers, steering knuckles and torsion bar drops.
The high arched crossmembers and the differential skid plate are made from 1/4-inch thick steel with tubular cross braces. The unitized bracketry reduces installation time and adds strength. The kit was tested on and off road to set bump stop engagement, torsion bar location and shock valving, and it has front and rear twin tube performance shocks.
The high arched crossmembers are 1/4-inch thick steel, which is needed to relocate the torsion bars, bump stops and lower control arms properly.
Shocks are included with this kit, in the front and rear twin tube performance configuration.
Key features
- 6-inch lift height, range 5 to 6.99 inches
- Torsion bars kept in the stock location
- Bump stop relocation brackets
- 1/4-inch steel crossmembers and differential skid plate
- Front and rear twin tube performance shocks
- Unitized bracketry
Torsion bar setup and wear
Torsion bars are tuned to the front axle and steering geometry. When they are moved, the ride height and the way the front suspension rebounds both change. Keep the bars in their adjusted position and check the setting after the first few trips, since some settling is normal on new brackets.
Crossmembers and steering knuckles carry most of the load in a raised front end. Inspect welds, bolts and bushings for cracks or movement, especially after off-road work. Keep track of the torsion bar drops and bump stop brackets so they are inspected together.
Heavy 3500 HD trucks often tow or haul, which adds load to the front suspension. Check the front tires for even wear, and keep the shocks in good condition so the lifted front stays controlled.
Specifications
| Brand | Fabtech |
|---|---|
| Part number | K1051 |
| UPC | 70000583442 |
| Lift height | 6 inches (range 5 to 6.99 inches) |
| Suspension type | Knuckle |
| Front components | Crossmember, steering knuckles, torsion bar drops |
| Rear lift method | Lift blocks with U-bolts |
| Shocks | Front and rear twin tube performance shocks |
| Included parts | Bump stop relocation brackets and differential skid plate |
Vehicle fitment
It fits the 2011–2018 Chevrolet Silverado 3500 HD and the 2011–2018 GMC Sierra 3500 HD.
The list covers the 3500 HD trucks in those years only, so the 2500 HD and 1500 models are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The bump stop relocation brackets and the differential skid plate are listed with the torsion bar drops, so the front end is worked as one assembly. Confirm the components against the truck before starting the install.
What’s included

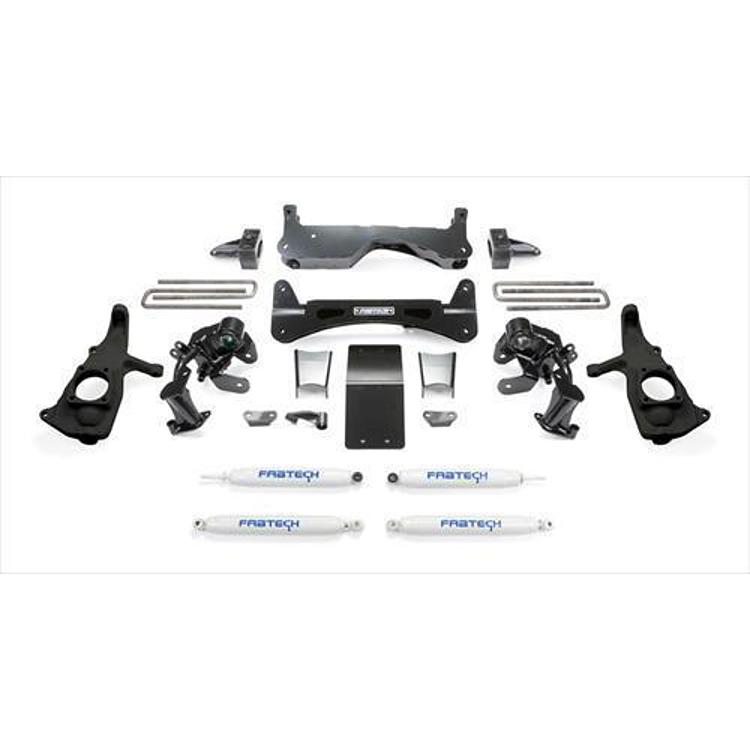

Front crossmember, steering knuckles, torsion bar drops, bump stop relocation brackets, a differential skid plate, lift blocks with U-bolts, and front and rear twin tube performance shocks.
