Overview

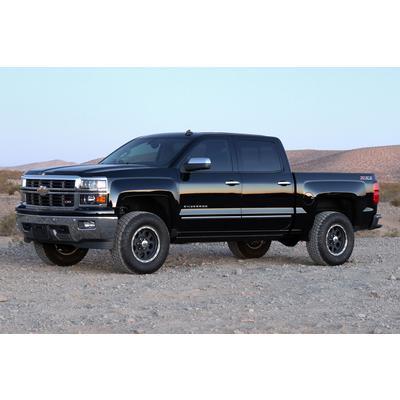

The Fabtech K1071 is a 3-inch Uniball upper control arm lift kit with rear performance shocks for 2014 to 2015 and 2017 to 2018 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks. It is a mild lift with easy installation, designed for clearance of 33-inch tall tires on K1500 trucks. It does not cover 2016 models.
The lift keeps the factory front coilover shocks and adds a steel spacer system to them, which Fabtech says helps retain the stock ride of the front suspension. The stock upper control arms are replaced with tubular Uniball arms. Those arms are made from .120 wall 4130 chromoly tubing with a 1.50-inch outside diameter and 1-inch FK stainless PTFE Uniballs, and Fabtech says they allow unrestricted movement through the travel range.
At the front, the differential is relocated to keep CV angles correct at the new height, and a 1/4-inch thick steel skid plate guards against obstacles. At the rear, a 1 1/2-inch lift block and U-bolts level the stance, and performance rear shock absorbers replace the factory units for more damping.
Key features
- 3-inch lift using the factory front coilover shocks with a steel spacer system
- Tubular upper control arms with 1-inch FK stainless PTFE Uniballs
- Chromoly arms in .120 wall 4130 tubing, 1.50-inch outside diameter
- Relocated front differential to keep CV angles correct
- 1/4-inch thick steel skid plate
- 1 1/2-inch rear lift block with U-bolts
- Performance rear shock absorbers
Uniball arms and alignment
Upper control arms guide the wheel’s up-and-down movement and set the caster and camber. Replacing the factory arms with tubular Uniball units changes those angles, so the front end needs an alignment once the lift is complete. Skipping the alignment is a common cause of uneven tire wear on lifted trucks, even when the parts are installed correctly.
The factory front coilovers stay in use with a steel spacer system, so they carry more load at the new height. Look for leaks and worn mounts at each service. Keep the rear performance shocks in good shape too, because they control the rear as the block and U-bolts settle over the first months of driving.
- Get a wheel alignment after the arms are installed
- Check the spacer system bolts after the first drives
- Inspect Uniball joints for play during routine service
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FABK1071 |
| Lift height | 3 inches |
| Lift height range | 0 to 3.5 inches |
| Upper control arm material | 4130 chromoly, .120 wall, 1.50-inch outside diameter |
| Ball joints | 1-inch FK stainless PTFE Uniballs |
| Skid plate | 1/4-inch steel |
| Rear lift block | 1 1/2 inches with U-bolts |
| Front shocks | Factory, reused |
| Rear shocks | Performance, included |
| Tire clearance | 33-inch tall tires on K1500 trucks |
| Fitment type | Direct fit |
Vehicle fitment
It fits 2014 to 2015 and 2017 to 2018 Chevrolet Silverado 1500 models in the Custom, High Country, LS, LT, LTZ, SSV and WT versions, and GMC Sierra 1500 models in the Base, Denali, SLE and SLT versions.
2016 and 2019 and later 1500 trucks are not covered. Tire and wheel options carry a minor trimming note, so check wheel and fender clearance before mounting. Check your vehicle’s year, model and trim against the covered years before ordering.
Installation notes
Replacing the upper control arms changes the front geometry, so a wheel alignment is required after installation. Relocating the front differential means the CV angles and driveline angles should be checked. The rear lift block and U-bolts should be checked for driveline angle once the rear is at its new height.
What’s included

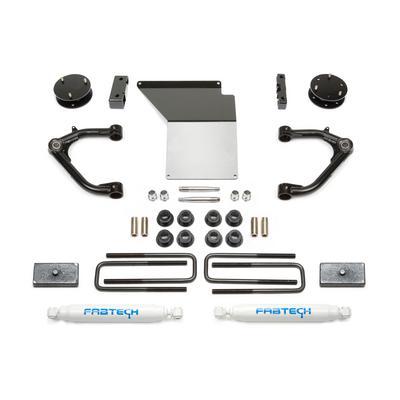

The kit includes the tubular Uniball upper control arms, the steel spacer system for the factory coilovers, the 1/4-inch steel skid plate, the 1 1/2-inch rear lift block with U-bolts and the performance rear shock absorbers.
Not included: Tires and wheels. Check the sizes against the clearance guidance before mounting.
